VISOMDatasheet (PDF)

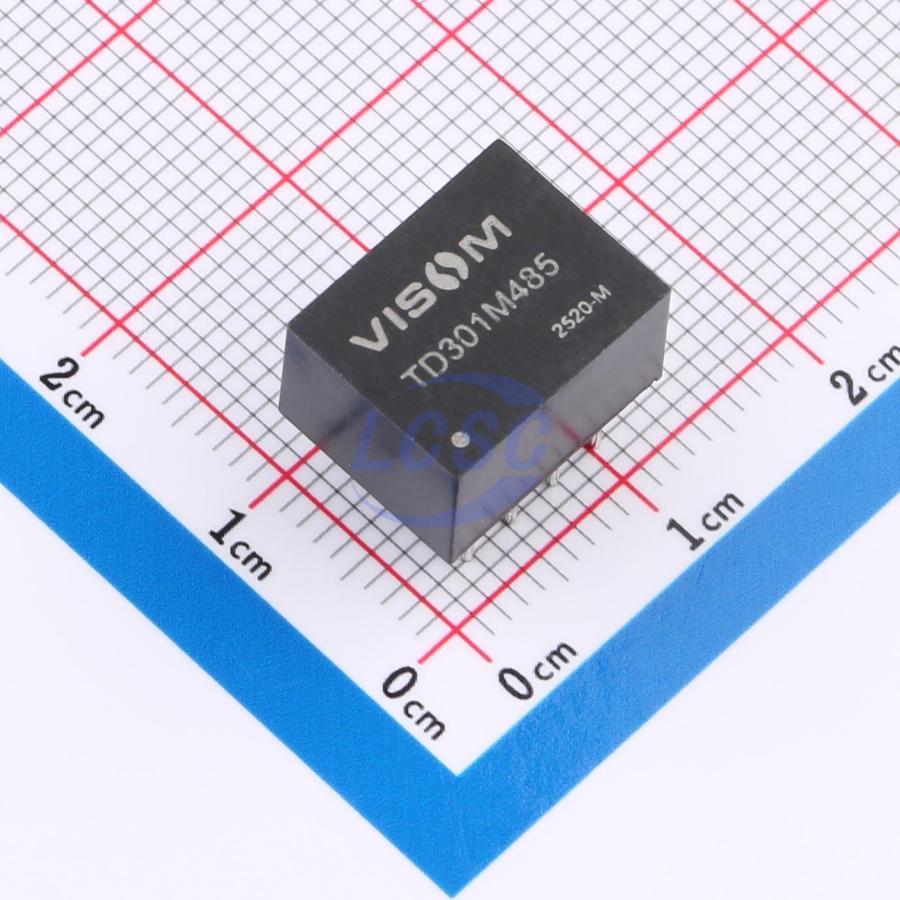

TD301M485
3.15V~3.45V 500Kbps 64 Yes DIP-8 Drivers, Receivers, Transceivers
DIP-8RoHSActive
Single-channel high-speed and compact RS-485 isolated transceiver
- Manufacturer
- VISOM
- Manufacturer part #
- TD301M485
- Store part #
- C2682606
- Package / case
- DIP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,598 in stock
#C2682606
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹548.98 | ₹548.98 |
| 10+ | ₹462.26 | ₹4,622.60 |
| 39+ | ₹404.80 | ₹15,787.20 |
| 117+ | ₹352.76 | ₹41,272.92 |
| 390+ | ₹328.70 | ₹1,28,193.00 |
| 1,170+ | ₹317.64 | ₹3,71,638.80 |
1 × ₹548.98
₹548.98
excl. GST
₹647.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 39 per tube
TD301M485
₹548.98 for 1 + GST
Specifications
- Voltage - Supply
- 3.15V~3.45V
- Data Rate
- 500Kbps
- Number of Nodes
- 64
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- Yes
- Automatic flow control
- Yes
- Features
- Automatic transmit/receive function;Power isolation function;Signal isolation function
- Quiescent Supply Current
- 22mA
- Isolation Voltage(Vrms)
- 2500V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 39 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.96 g
Overview
TD301M485/TD501M485 primarily converts logic-level signals to RS-485 differential levels for signal isolation. It is an RS-485 transceiver module utilizing IC integration technology, integrating power isolation, signal isolation, RS-485 communication, and bus protection in a single package. The module features a built-in regulated isolated power supply capable of 2500VDC electrical isolation. It supports automatic transceiver switching, eliminating the need for manual control via transmit/receive control pins, thereby reducing design complexity. The module can be easily embedded into user equipment, enabling seamless RS-485 network connectivity.
Applications
- Industrial Communication
- Coal Mining
- Power Monitoring
- Building Automation
Key features
- Single supply input power
- Isolated output power pins
- Auto-transceive data function
- Up to 64 nodes connectable
- Ultra-low EMI
- Operating temperature range: -40°C~+85°C
- Integrated power isolation, signal isolation, and bus ESD protection
