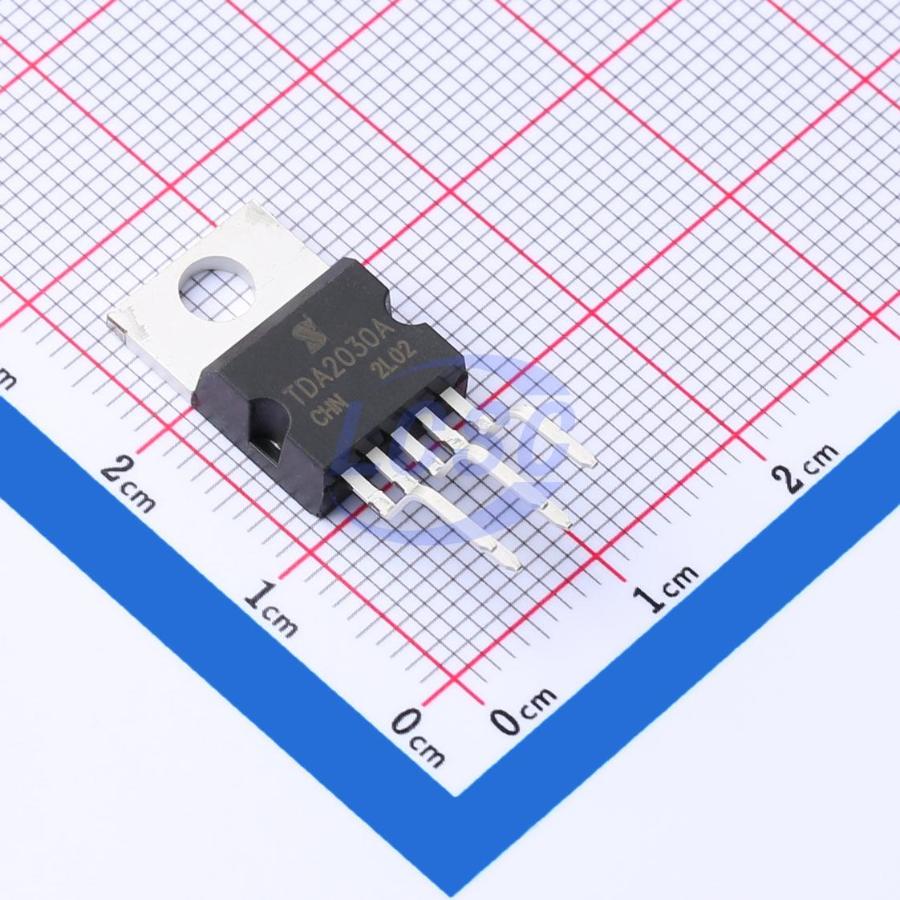

JSMSEMI

TDA2030A

26mA 4.5V~25V 1-Channel 18Wx1@5Ω Class AB FZIP5 Audio Amplifiers RoHS

FZIP5ROHS CompliantActive

35W Hi-Fi AMPLIFIER AND 35W DRIVER

Manufacturer: JSMSEMI
Manufacturer part #: TDA2030A
Store part #: C5296731
Package / case: FZIP5
Category: Audio Amplifiers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,570 in stock

#C5296731

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹34.48	₹172.40
50+	₹27.31	₹1,365.50
150+	₹24.16	₹3,624.00
500+	₹20.24	₹10,120.00
2,000+	₹18.50	₹37,000.00
5,000+	₹17.45	₹87,250.00

Quantity (min 5, multiples of 5)

5 × ₹34.48

₹172.40

excl. GST

₹203.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TDA2030A

₹172.40 for 5 + GST

Specifications

Quiescent Current: 26mA
Voltage - Supply: 4.5V~25V
Signal-to-Noise Ratio: 106dB;94dB
Speaker Channels: 1-Channel
Output Power: 18Wx1@5Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 45dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 3 g

Overview

The TDA2O30A is a monolithic integrated circuit in Pentawatt package, designed for use as a class AB audio amplifier. Thanks to its high power capability, the device can deliver up to 35W true RMS power into a 4Ω load at THD=10%, VS=36V, f=1KHz, and up to 32W into an 8Ω load at THD=10%, VS=44V, f=1KHz. Additionally, at VS=22.5V, f=1KHz, the TDA2030A is typically capable of delivering up to 50W of music power into a 4Ω load within 1 second. Its high power output, very low harmonic and crossover distortion (typical THD=0.05% at VS=44V, PO=0.1 to 15W, RL=8Ω, f=100Hz to 15KHz) make the device well suited for hi-fi systems and high-end televisions.
