HGSEMI

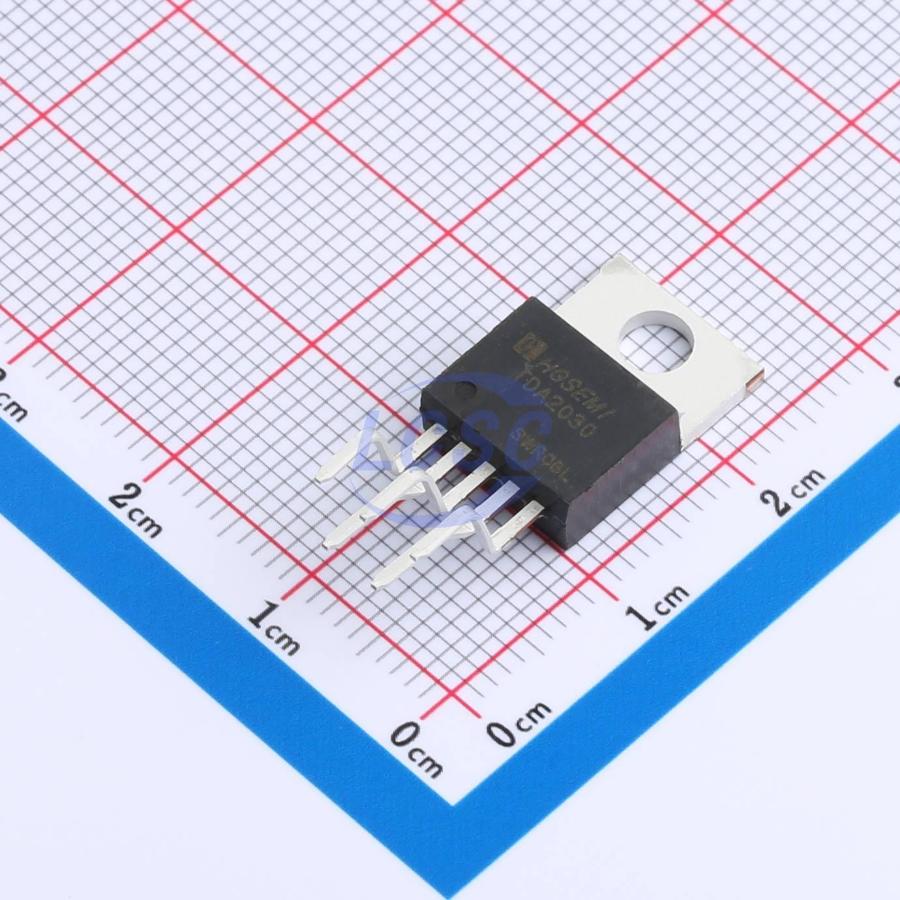

TDA2030TB

40mA 14Wx1@4Ω Class AB TO-220B-5 Audio Amplifiers

TO-220B-5RoHSActive

14W Hi-Fi audio power amplifier

Manufacturer: HGSEMI
Manufacturer part #: TDA2030TB
Store part #: C7432196
Package / case: TO-220B-5
Category: Audio Amplifiers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,230 in stock

#C7432196

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹28.55	₹142.75
50+	₹24.90	₹1,245.00
150+	₹23.34	₹3,501.00
500+	₹21.39	₹10,695.00
2,000+	₹20.52	₹41,040.00
5,000+	₹19.99	₹99,950.00

Quantity (min 5, multiples of 5)

5 × ₹28.55

₹142.75

excl. GST

₹168.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TDA2030TB

₹142.75 for 5 + GST

Specifications

Quiescent Current: 40mA
Voltage - Supply: -18V~+18V;12V~36V
Total Harmonic Distortion + Noise (THD+N): 0.2%
Output Power: 14Wx1@4Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 50dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.742 g

Overview

TDA2030 is a monolithic integrated circuit in a Pentawatt/TO220B-5 package, designed for use in low-frequency Class AB amplifiers. It delivers 14W output power (typical d = 0.5%, ±14V/4Ω). At ±14V or 28V, it can output 14W with RL = 4Ω and 9W with 8Ω. The TDA2030 provides high output current with very low harmonic and crossover distortion. In addition, the device incorporates a short-circuit protection system, including an automatic power dissipation limiting function to keep the output transistor operating within a safe range, as well as a conventional thermal shutdown system.
