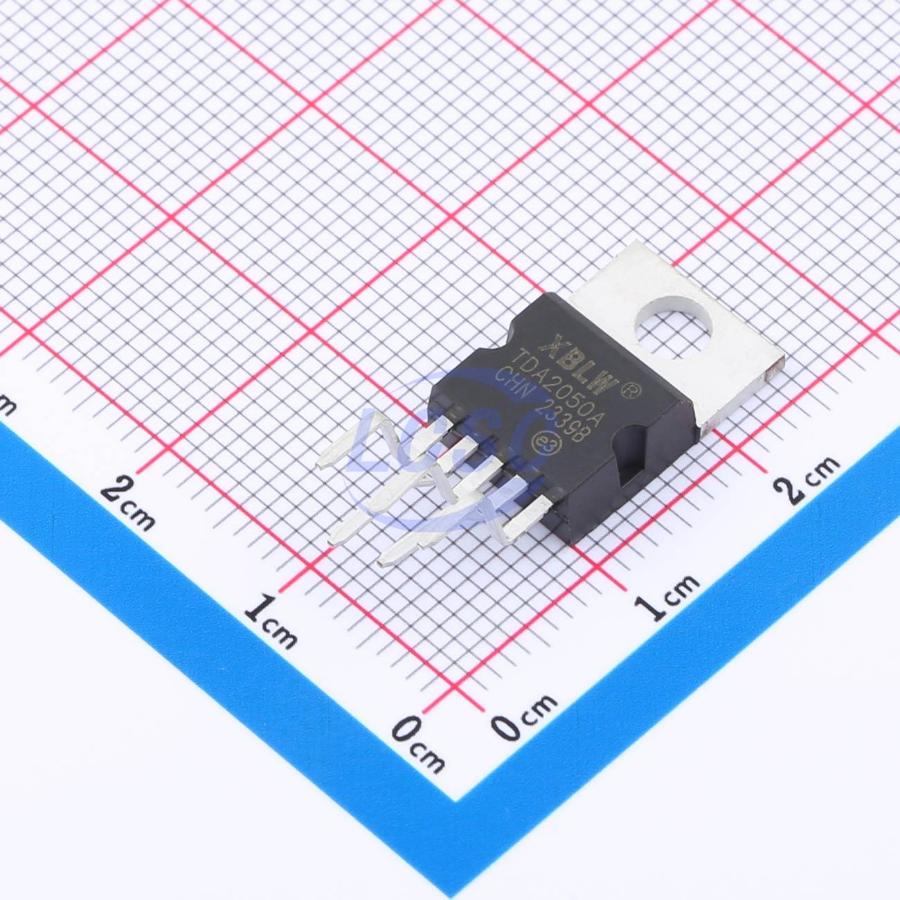

TDA2050A(XBLW)
30mA -4.5V~25V 32W Class AB TO-220-5L Audio Amplifiers RoHS
32W Hi-Fi Audio Power Amplifier
- Manufacturer
- XBLW
- Manufacturer part #
- TDA2050A(XBLW)
- Store part #
- C19267477
- Package / case
- TO-220-5L
- Category
- Audio Amplifiers
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,915 in stock
#C19267477
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.97 | ₹63.97 |
| 10+ | ₹49.88 | ₹498.80 |
| 50+ | ₹43.80 | ₹2,190.00 |
| 100+ | ₹36.00 | ₹3,600.00 |
| 500+ | ₹32.74 | ₹16,370.00 |
| 1,000+ | ₹30.80 | ₹30,800.00 |
1 × ₹63.97
₹63.97
excl. GST
₹75.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TDA2050A(XBLW)
₹63.97 for 1 + GST
Specifications
- Quiescent Current
- 30mA
- Voltage - Supply
- -4.5V~25V
- Total Harmonic Distortion + Noise (THD+N)
- 0.5%
- Operating Temperature
- -20℃~+125℃
- Efficiency
- 65%;67%
- Output Power
- 32W
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 45dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.623 g
Overview
The TDA2050 is a monolithic integrated circuit with high power capability and is designed to use as an class AB audio amplifier. It can deliver typically 50W music power into 4Ω load over 1 sec at supply voltage (VS) = 22.5V and frequency (f) = 1kHz. The device is most suitable for both Hi-Fi and high class TV sets on the strength of its high supply voltage and very low harmonic and crossover distortion.
Applications
- Home audio system
- Public Address System
- Multimedia equipment
- Sound amplification equipment
Key features
- High Output Power(40W Music Power Iec 268.3 Rules )
- High Operating Supply Voltage (50V)
- Single Or Split Supply Operations
- Very Low Distortion
- Short Circuit Protection (Out To Gnd)
- Thermal Shutdown
- Available in T0-220B-5 package and TO263-5L package
