lingxingic

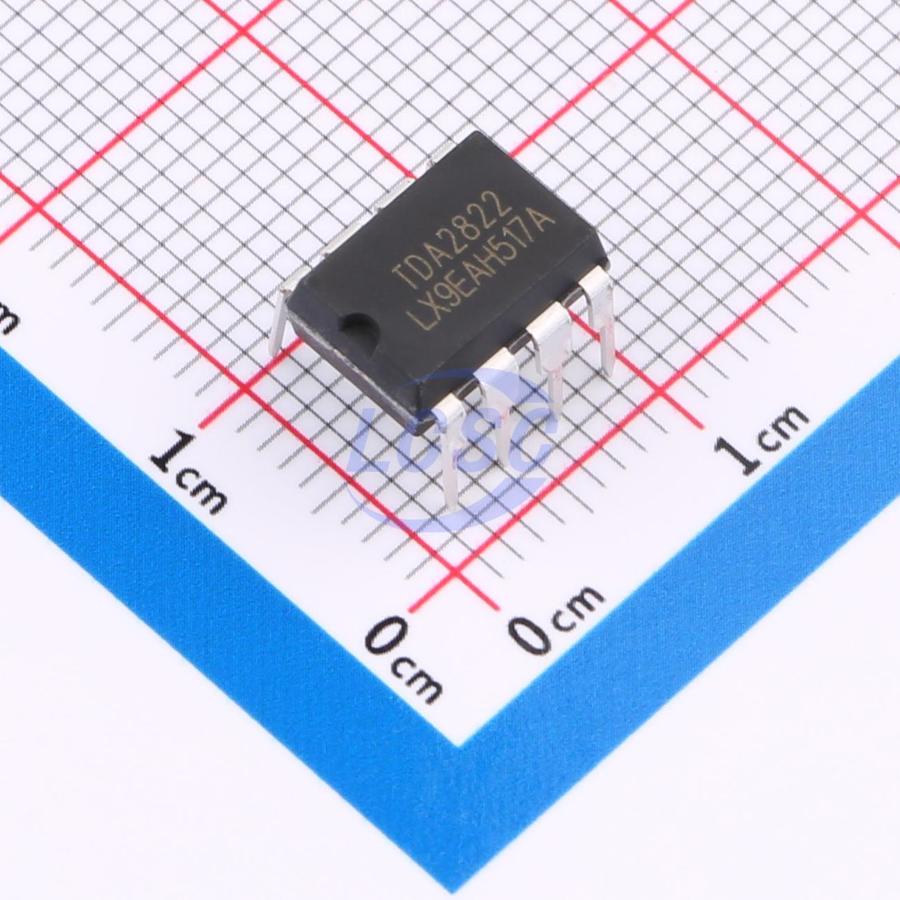

TDA2822 (LX)

1.8V~12V 9mA 2-Channel DIP-8 Audio Amplifiers

DIP-8RoHSActive

Manufacturer: lingxingic
Manufacturer part #: TDA2822 (LX)
Store part #: C49246862
Package / case: DIP-8
Category: Audio Amplifiers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,110 in stock

#C49246862

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.15	₹90.75
50+	₹14.34	₹717.00
150+	₹12.44	₹1,866.00
500+	₹11.01	₹5,505.00
2,000+	₹9.87	₹19,740.00
4,000+	₹9.30	₹37,200.00

Quantity (min 5, multiples of 5)

5 × ₹18.15

₹90.75

excl. GST

₹107.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TDA2822 (LX)

₹90.75 for 5 + GST

Specifications

Voltage - Supply: 1.8V~12V
Quiescent Current: 9mA
Total Harmonic Distortion + Noise (THD+N): 0.5%
Operating Temperature: -40℃~+85℃
Speaker Channels: 2-Channel
Output Power: 0.65Wx2@4Ω;1.35Wx1@4Ω
Power Supply Rejection Ratio (PSRR): 30dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.846 g

Overview

The TDA2822 is a dual-channel low-voltage power amplifier commonly used in audio amplification applications. It can operate in either stereo mode or bridge amplifier mode. The operating voltage is relatively low, typically ranging from 3V to 12V. The IC integrates two independent amplifier channels with a single-supply design, requiring minimal external components. Its low distortion and low power consumption make it widely used in portable audio devices.
