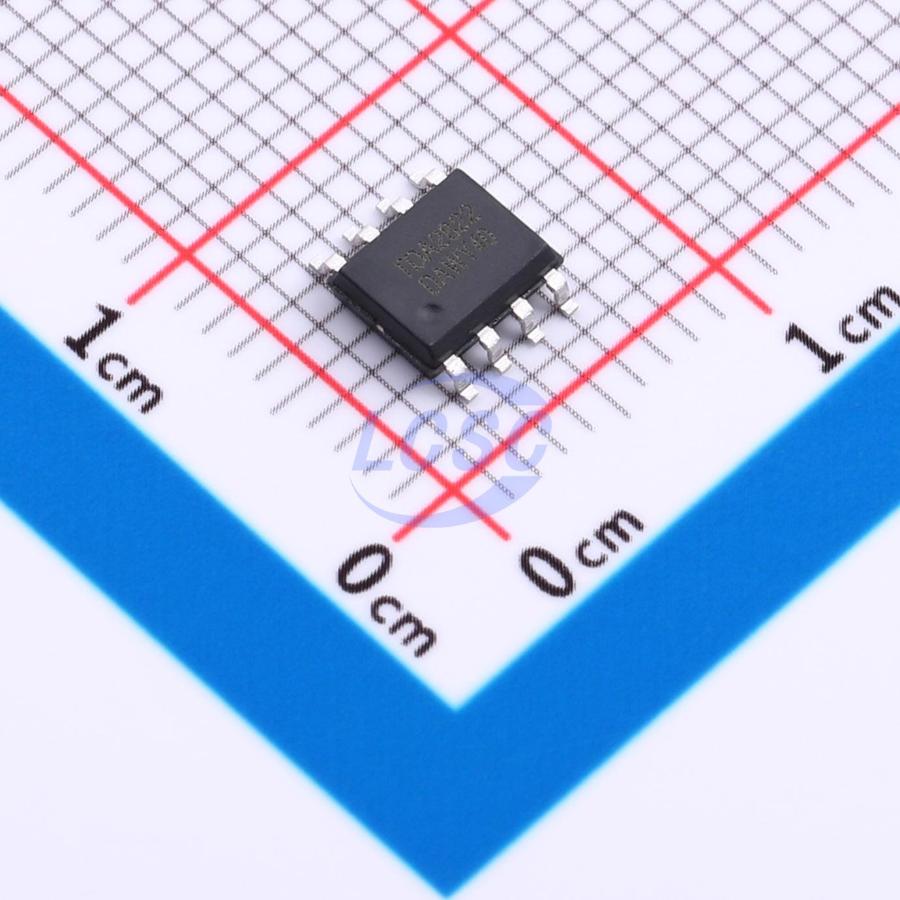

TDA2822-SOP-8
6mA 1.8V~9V 2-Channel Class AB SOP-8 Audio Amplifiers
- Manufacturer
- DDF
- Manufacturer part #
- TDA2822-SOP-8
- Store part #
- C53199173
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,225 in stock
#C53199173
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.72 | ₹58.60 |
| 50+ | ₹9.22 | ₹461.00 |
| 150+ | ₹7.98 | ₹1,197.00 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 2,500+ | ₹6.28 | ₹15,700.00 |
| 4,000+ | ₹5.90 | ₹23,600.00 |
5 × ₹11.72
₹58.60
excl. GST
₹69.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TDA2822-SOP-8
₹58.60 for 5 + GST
Specifications
- Quiescent Current
- 6mA
- Voltage - Supply
- 1.8V~9V
- Operating Temperature
- -20℃~+85℃
- Number of Inputs
- 2 Pairs Differential Inputs
- Speaker Channels
- 2-Channel
- Output Power
- 1Wx2@8Ω;2Wx2@16Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 30dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
GC2822Z is a Class AB dual-channel audio power amplifier designed for portable recorders, radios, CD players, and similar devices.
Applications
- Mobile electronic devices
- Industrial automation
- Audio applications
Key features
- Supply voltage: VCC = 1.8 V ~ 12 V
- Output power: POUT = 1.0 W/ch (VCC = 9 V, RL = 8 Ω, f = 1 kHz, THD = 10%, stereo mode)
- Output power: POUT = 2.0 W (VCC = 9 V, RL = 16 Ω, f = 1 kHz, THD = 10%, BTL mode)
- Low quiescent current
- Low crossover distortion
- Soft clipping
