TDSEMIC

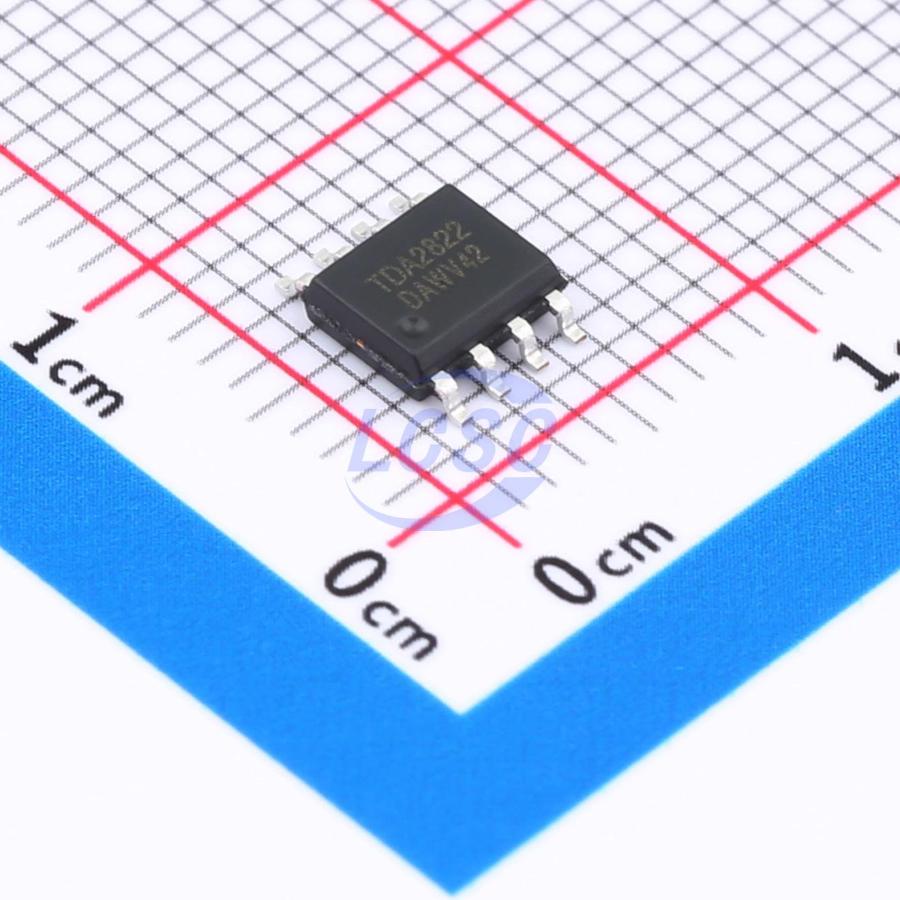

TDA2822-TD

6mA 1.8V~12V 2-Channel Class AB SOP-8 Audio Amplifiers RoHS

SOP-8ROHS CompliantActive

Class AB dual-channel audio power amplifier

Manufacturer: TDSEMIC
Manufacturer part #: TDA2822-TD
Store part #: C42421865
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,260 in stock

#C42421865

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.58	₹77.90
50+	₹12.36	₹618.00
150+	₹10.74	₹1,611.00
500+	₹9.53	₹4,765.00
2,500+	₹8.56	₹21,400.00
5,000+	₹8.07	₹40,350.00

Quantity (min 5, multiples of 5)

5 × ₹15.58

₹77.90

excl. GST

₹91.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TDA2822-TD

₹77.90 for 5 + GST

Specifications

Quiescent Current: 6mA
Voltage - Supply: 1.8V~12V
Features: Built-in audio processing
Operating Temperature: -20℃~+85℃
Speaker Channels: 2-Channel
Output Power: 1.0Wx2@8Ω;2.0Wx1@16Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 30dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.189 g

Overview

TDA2822-TD is a Class AB dual-channel audio power amplifier designed for portable recorders, radios, CD players, and similar devices. The device is available in SOP8 or DIP8 packages.

Applications

Mobile electronic devices
Industrial automation
Audio applications

Key features

Supply voltage: Vcc = 1.8V ~ 12V
Output power: 1.0W per channel in stereo mode (Vcc = 9V, RL = 8Ω, f = 1kHz, THD = 10%); 2.0W in BTL mode (Vcc = 9V, RL = 16Ω, f = 1kHz, THD = 10%)
Low quiescent current
Low crossover distortion
Soft clipping
