lingxingic

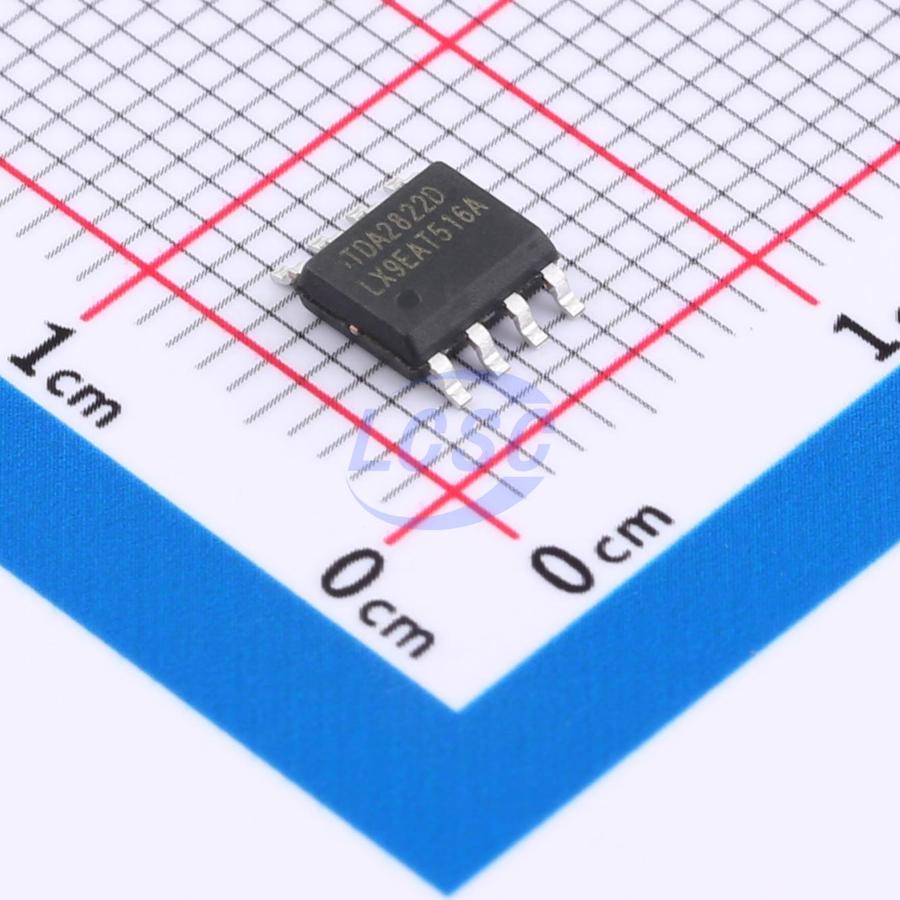

TDA2822D (LX)

1.8V~12V 9mA 2-Channel SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: lingxingic
Manufacturer part #: TDA2822D (LX)
Store part #: C49246861
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,855 in stock

#C49246861

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.35	₹76.75
50+	₹12.13	₹606.50
150+	₹10.52	₹1,578.00
500+	₹9.31	₹4,655.00
2,500+	₹8.35	₹20,875.00
4,000+	₹7.87	₹31,480.00

Quantity (min 5, multiples of 5)

5 × ₹15.35

₹76.75

excl. GST

₹90.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TDA2822D (LX)

₹76.75 for 5 + GST

Specifications

Voltage - Supply: 1.8V~12V
Quiescent Current: 9mA
Total Harmonic Distortion + Noise (THD+N): 0.5%
Operating Temperature: -40℃~+85℃
Speaker Channels: 2-Channel
Output Power: 0.65Wx2@4Ω;1.35Wx2@4Ω
Power Supply Rejection Ratio (PSRR): 30dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.176 g

Overview

The TDA2822 is a dual-channel low-voltage power amplifier commonly used in audio amplification applications. It can operate in either stereo mode or bridge amplifier mode. The operating voltage is relatively low, typically ranging from 3V to 12V. The IC integrates two independent amplifier channels with a single-supply design, requiring minimal external components. Its low distortion and low power consumption make it widely used in portable audio devices.
