GREENMICRO

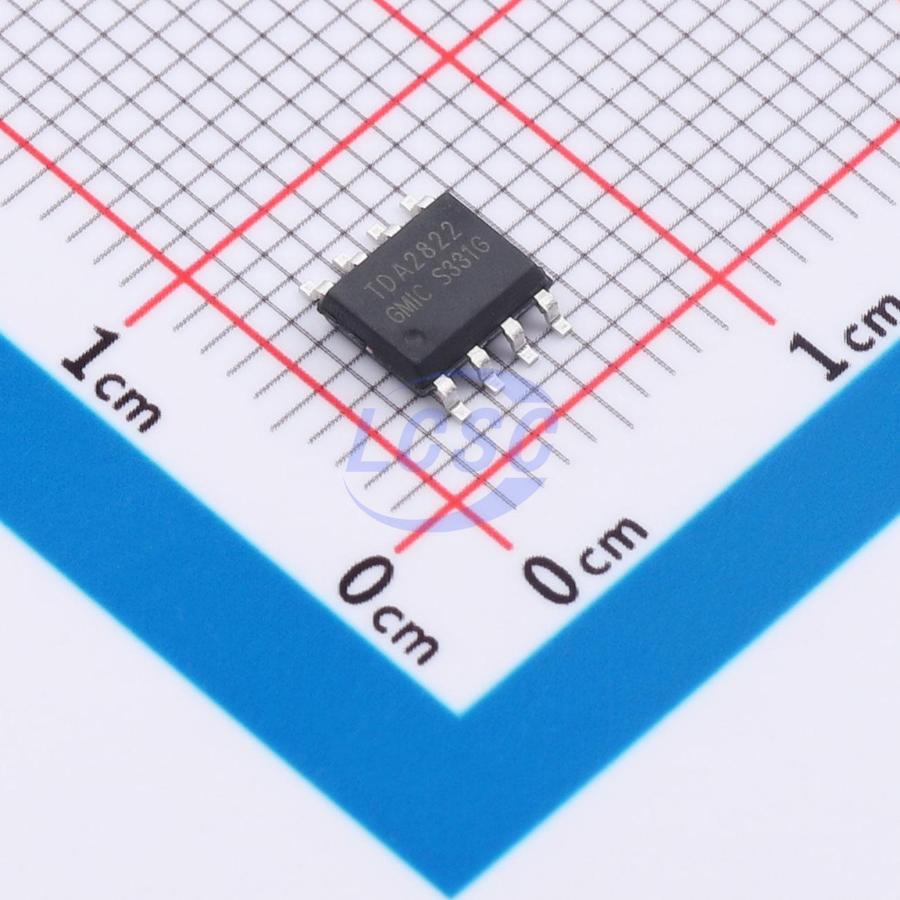

TDA2822DBS

6mA 1.8V~6V 2-Channel Class AB SOP-8 Audio Amplifiers

SOP-8RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: TDA2822DBS
Store part #: C51927336
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,220 in stock

#C51927336

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.53	₹85.30
100+	₹6.77	₹677.00
300+	₹5.90	₹1,770.00
2,500+	₹5.24	₹13,100.00
5,000+	₹4.72	₹23,600.00
10,000+	₹4.46	₹44,600.00

Quantity (min 10, multiples of 10)

10 × ₹8.53

₹85.30

excl. GST

₹100.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TDA2822DBS

₹85.30 for 10 + GST

Specifications

Quiescent Current: 6mA
Voltage - Supply: 1.8V~6V
Operating Temperature: -20℃~+85℃
Speaker Channels: 2-Channel
Output Power: 0.1Wx2@4Ω;0.35Wx1@4Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 40dB;30dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.288 g

Overview

2822 is a Class AB dual-channel audio power amplifier designed for portable tape recorders, radios, CD players, and similar devices. The device is available in SOP8 or DIP8 packages.

Applications

Mobile electronic devices
Industrial automation
Audio applications

Key features

Supply voltage: VCC = 1.8V ~ 6V
Output power: P_OUT = 0.1 W/CH (VCC = 3V, RL = 4 Ω, f = 1 kHz, THD = 10%, Stereo)
Output power: P_OUT = 0.35 W (VCC = 3V, RL = 4 Ω, f = 1 kHz, THD = 10%, BTL)
Low quiescent current
Low crossover distortion
Soft clipping
