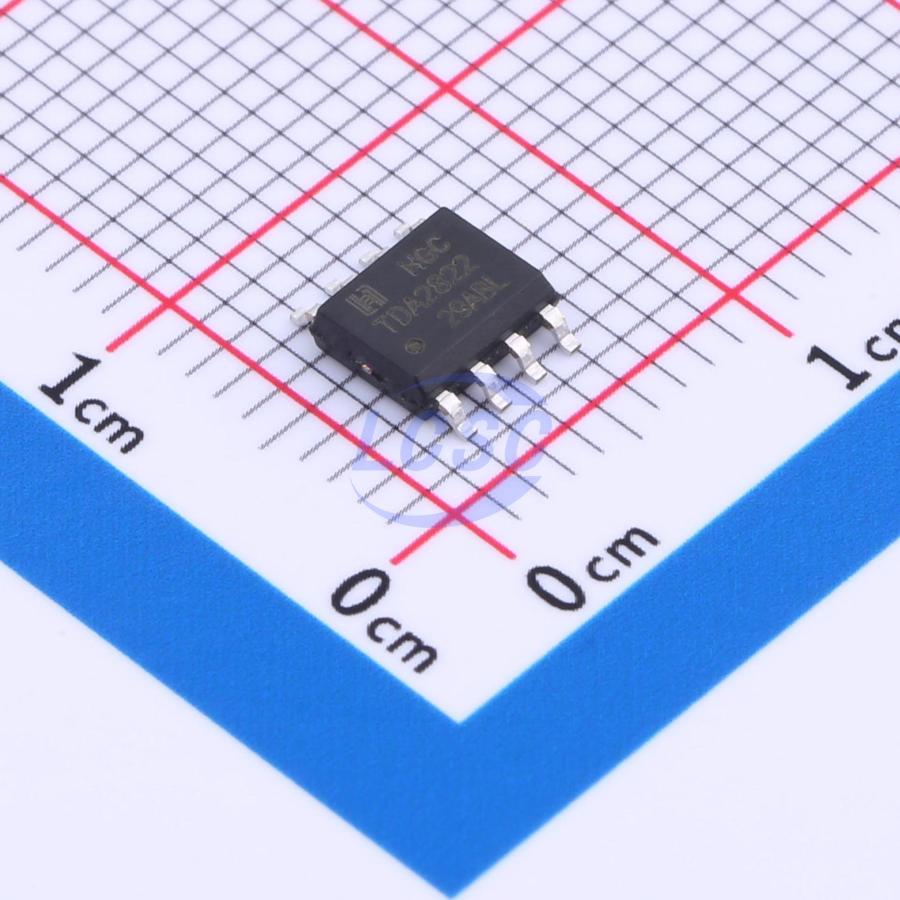

HANSCHIP semiconductor

TDA2822DRG

6mA 3V~12V 2-Channel 1000mWx2@32Ω SOP-8 Audio Amplifiers RoHS

SOP-8ROHS CompliantActive

Audio power amplifier

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: TDA2822DRG
Store part #: C5145398
Package / case: SOP-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

950 in stock

#C5145398

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹18.59	₹92.95
50+	₹14.72	₹736.00
150+	₹12.79	₹1,918.50
500+	₹11.35	₹5,675.00
2,500+	₹9.71	₹24,275.00
5,000+	₹9.13	₹45,650.00

Quantity (min 5, multiples of 5)

5 × ₹18.59

₹92.95

excl. GST

₹109.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TDA2822DRG

₹92.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 6mA
Voltage - Supply: 3V~12V
Features: Built-in audio processing;Automatic mute/no-noise switch
Operating Temperature: 0℃~+70℃
Number of Inputs: 2 Pairs Differential Inputs
Speaker Channels: 2-Channel
Output Power: 1000mWx2@32Ω
Power Supply Rejection Ratio (PSRR): 30dB

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.2 g

Overview

TDA2822 is designed for use as an audio power amplifier in portable cassette players and radios. Available in SOP8, MSOP8, and DIP8 packages.

Applications

Portable recorder
Radio

Key features

Wide supply voltage range: 3V~12V, minimal external components
Low crossover distortion
High channel separation
Low quiescent current
No pop noise at power-on/power-off
Suitable for bridge or stereo amplifier applications, soft clipping
