UTC

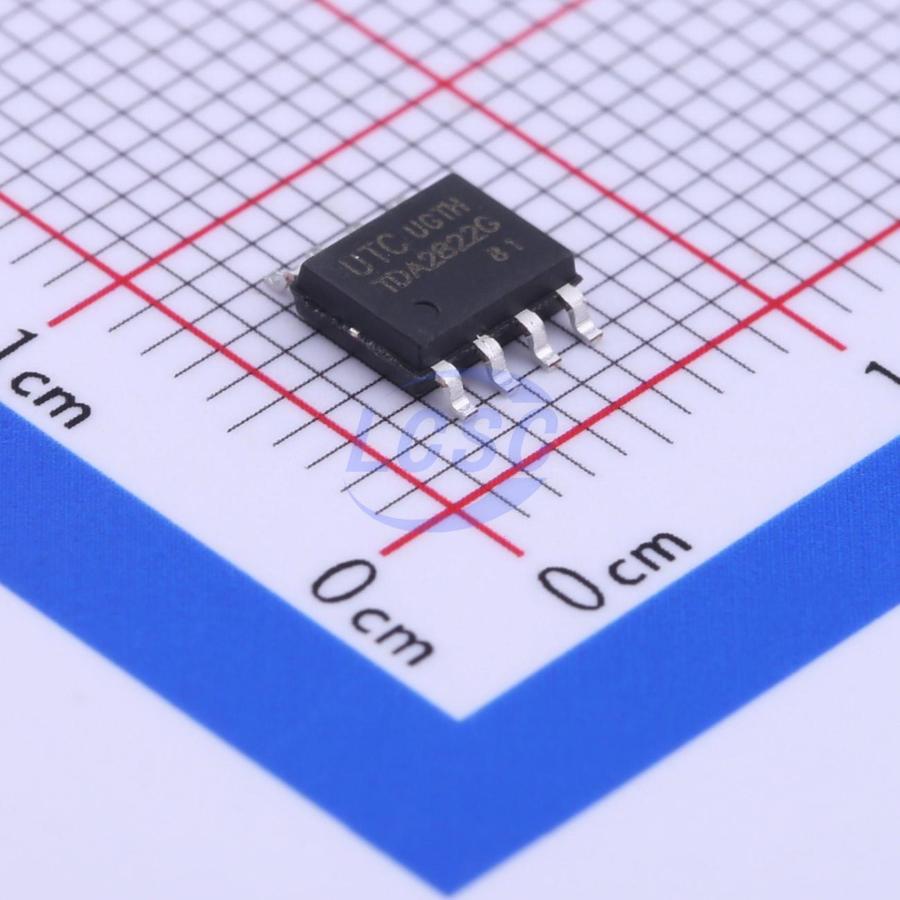

TDA2822G-S08-R

1.8V~12V 9mA 2-Channel 0.65Wx2@4Ω SOIC-8 Audio Amplifiers

SOIC-8RoHSActive

Dual Low Voltage Power Amplifier

Manufacturer: UTC
Manufacturer part #: TDA2822G-S08-R
Store part #: C73296
Package / case: SOIC-8
Category: Audio Amplifiers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,460 in stock

#C73296

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.67	₹108.35
50+	₹17.28	₹864.00
150+	₹15.40	₹2,310.00
500+	₹13.06	₹6,530.00
2,500+	₹11.91	₹29,775.00
5,000+	₹11.29	₹56,450.00

Quantity (min 5, multiples of 5)

5 × ₹21.67

₹108.35

excl. GST

₹127.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TDA2822G-S08-R

₹108.35 for 5 + GST

Specifications

Voltage - Supply: 1.8V~12V
Quiescent Current: 9mA
Total Harmonic Distortion + Noise (THD+N): 0.5%
Operating Temperature: -20℃~+85℃
Speaker Channels: 2-Channel
Output Power: 0.65Wx2@4Ω
Power Supply Rejection Ratio (PSRR): 30dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.22 g

Overview

The UTC TDA2822 is a monolithic integrated audio amplifier in a 8-Pin plastic dual in line package. It is designed for portable cassette players and radios.

Applications

Portable cassette players
Radios

Key features

Wide Operating Supply Voltage: VCC = 1.8V - 12V
Low Crossover Distortion
Low Quiescent Circuit Current
Bridge/Stereo Configuration
