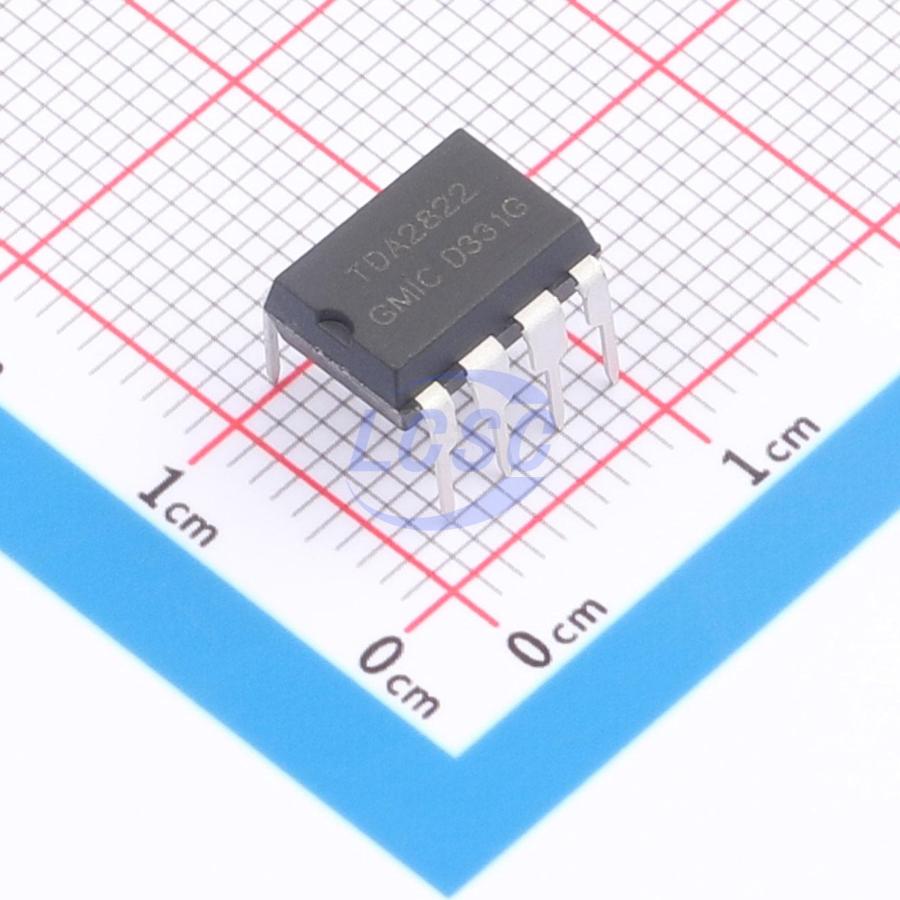

GREENMICRO

TDA2822NBD

6mA 1.8V~6V 2-Channel Class AB DIP-8 Audio Amplifiers

DIP-8RoHSActive

Manufacturer: GREENMICRO
Manufacturer part #: TDA2822NBD
Store part #: C51927337
Package / case: DIP-8
Category: Audio Amplifiers
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,595 in stock

#C51927337

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.87	₹59.35
50+	₹9.43	₹471.50
150+	₹8.22	₹1,233.00
500+	₹7.29	₹3,645.00
2,000+	₹6.56	₹13,120.00
4,000+	₹6.20	₹24,800.00

Quantity (min 5, multiples of 5)

5 × ₹11.87

₹59.35

excl. GST

₹70.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

TDA2822NBD

₹59.35 for 5 + GST

Specifications

Quiescent Current: 6mA
Voltage - Supply: 1.8V~6V
Features: Built-in audio processing
Operating Temperature: -20℃~+85℃
Speaker Channels: 2-Channel
Output Power: 0.1Wx2@4Ω;0.35Wx1@4Ω
Class: Class AB
Power Supply Rejection Ratio (PSRR): 40dB;30dB

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.57 g

Overview

2822 is a Class AB dual-channel audio power amplifier designed for portable tape recorders, radios, CD players, and similar devices. The device is available in SOP8 or DIP8 packages.

Applications

Mobile electronic devices
Industrial automation
Audio applications

Key features

Supply voltage: VCC = 1.8V ~ 6V
Output power: P_OUT = 0.1 W/CH (VCC = 3V, RL = 4 Ω, f = 1 kHz, THD = 10%, Stereo)
Output power: P_OUT = 0.35 W (VCC = 3V, RL = 4 Ω, f = 1 kHz, THD = 10%, BTL)
Low quiescent current
Low crossover distortion
Soft clipping
