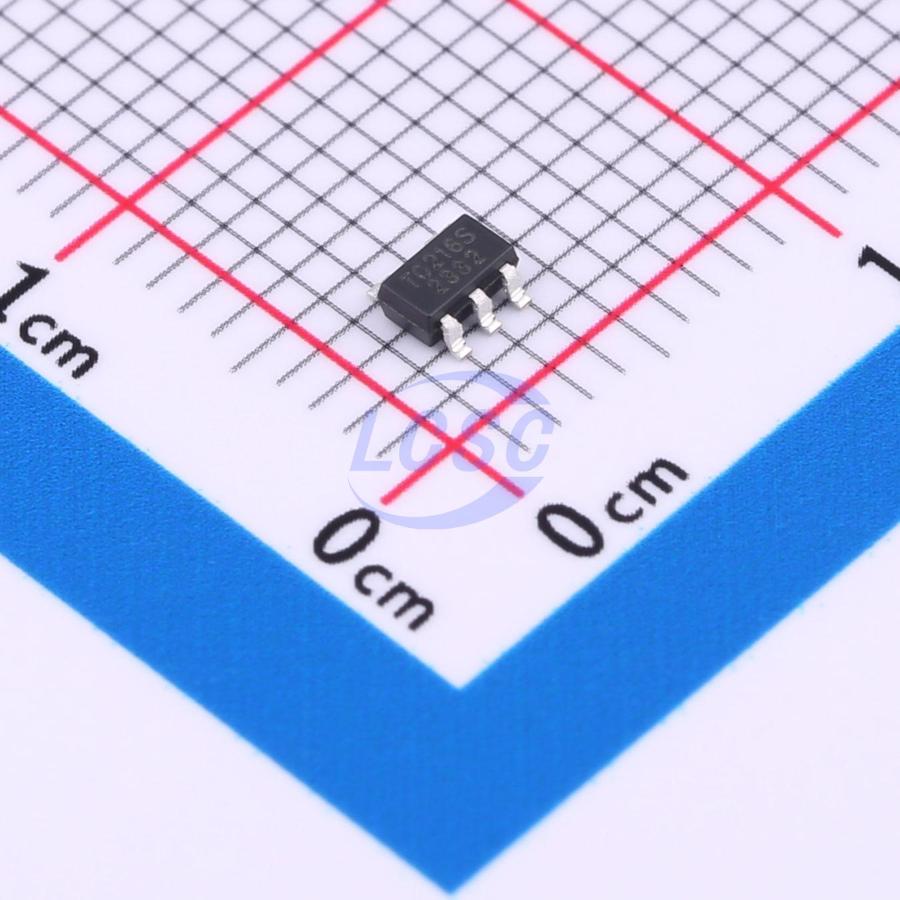

TF0216S-USQ

The TF0215(S)/16(S) high speed, low side MOSFET and IGBT drivers are capable of driving 1.9A of peak current. The TF0215(S)/16(S) logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with MCUs. Fast and well matched propagation delays allow high speed operation, enabling a smaller, more compact power switching design using smaller associated components. These devices are highly resistant to noise by being able to withstand up to 5V positive or negative on the input pin without damage. Also they can accept 500mA of reverse current forced back into its outputs without damage or logic change. The TF0215(S) provides an inverted output and the TF0216(S) provides a noninverting output. The TF0215 and TF0216 provide a different pinout to the TF0215S and TF0216S. The TF0215(S)/16(S) comes in a space-saving SOT23-5L package and it operates over an extended -40°C to +125°C temperature range.

Applications

• Switch mode power supplies
• Motor Drive
• Line Drivers
• DC-DC Converters

Key features

• Efficient, low-cost solution for driving MOSFETs and IGBTs
• Wide supply voltage operating range: 4.5V to 18V
• 1.9A source / 1.8A sink output current capability
• Inverting and non-inverting input configurations
• Fast propagation delays (35ns typical)
• Fast rise and fall times (15ns typical)
• Logic input (IN) 3.3V capability
• Offered in two different pinout options
• Space saving SOT23-5L package
• Extended temperature range: -40°C to +125°C
