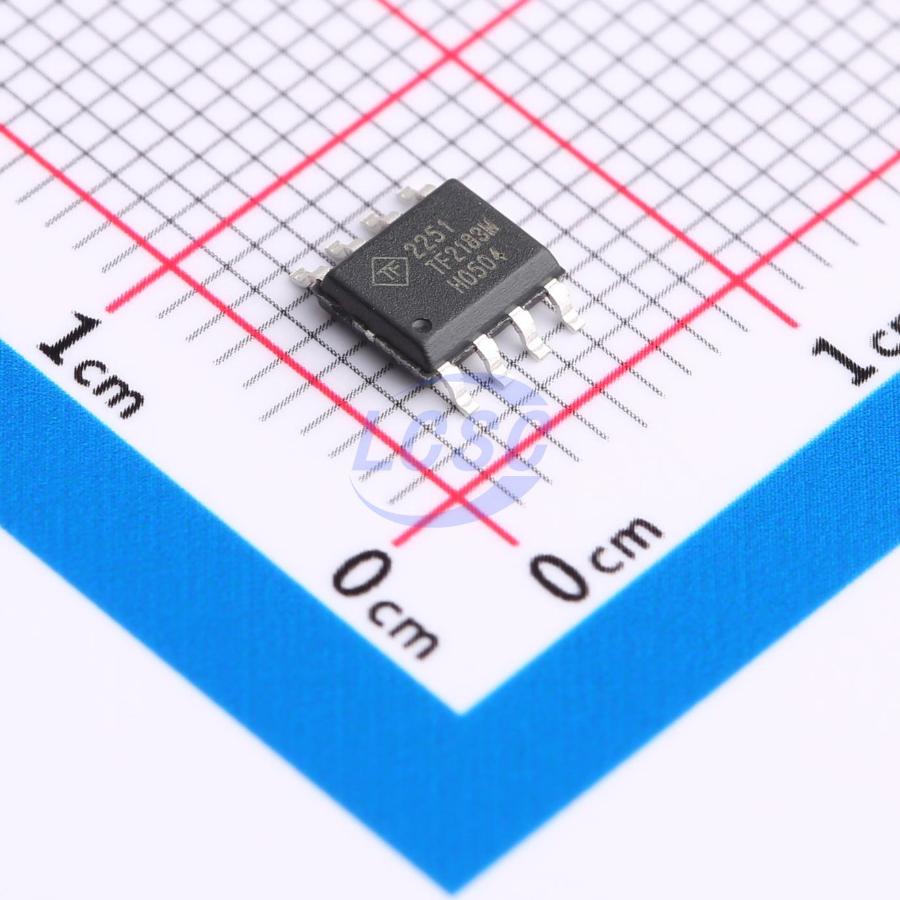

TF2183M-TAH
10V~20V 2.3A 1.9A SOIC-8 Gate Drivers
Half-Bridge Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF2183M-TAH
- Store part #
- C5382738
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,659 in stock
#C5382738
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹195.31 | ₹195.31 |
| 10+ | ₹162.27 | ₹1,622.70 |
| 30+ | ₹144.00 | ₹4,320.00 |
| 100+ | ₹123.33 | ₹12,333.00 |
| 500+ | ₹113.98 | ₹56,990.00 |
| 1,000+ | ₹109.85 | ₹1,09,850.00 |
1 × ₹195.31
₹195.31
excl. GST
₹230.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TF2183M-TAH
₹195.31 for 1 + GST
Specifications
- Low Level Delay Time
- 180ns
- High Level Delay Time
- 220ns
- Quiescent Current
- 1.6mA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 2.3A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 1.9A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.757 g
Overview
The TF2183(4)M is a high voltage, high speed gate driver capable of driving N-channel MOSFETs and IGBTs in a half bridge configuration. High voltage process enables the TF2183(4)M’s high side to switch to 600V in a bootstrap operation. The TF2183(4)M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction. TF2183(4)M has a fixed internal deadtime of 400ns (typical). The TF2183M is offered in an SOIC-8(N) package and the TF21834M is offered in an SOIC-14(N) package and operates over an extended -40 °C to +125 °C temperature range.
Applications
- DC-DC Converters
- AC-DC Inverters
- Motor Controls
- Class D Power Amplifiers
Key features
- Floating high-side driver in bootstrap operation to 600V
- Drives two N-channel MOSFETs or IGBTs in a half bridge configuration
- 1.9A source / 2.3A sink output current capability
- Outputs tolerant to negative transients
- Internal dead time of 400ns to protect MOSFETs
- Wide low side gate driver supply voltage: 10V to 20V
- Logic input (HIN and LIN*) 3.3V capability
- Schmitt triggered logic inputs with internal pull down
- Undervoltage lockout for high and low side drivers
- Extended temperature range: -40°C to +125°C
