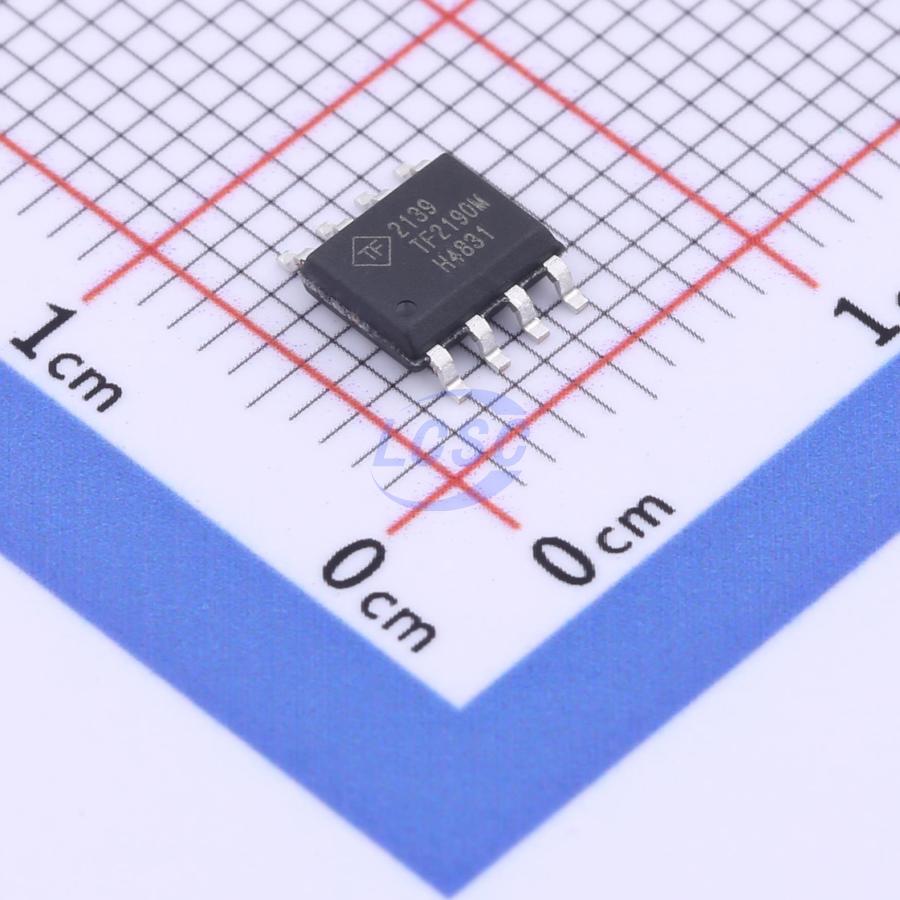

TF2190M-TAH
10V~20V 4.5A 4.5A SOIC-8 Gate Drivers
High-Side and Low-Side Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF2190M-TAH
- Store part #
- C2917161
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,774 in stock
#C2917161
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.62 | ₹125.62 |
| 10+ | ₹113.69 | ₹1,136.90 |
| 30+ | ₹107.18 | ₹3,215.40 |
| 100+ | ₹95.68 | ₹9,568.00 |
| 500+ | ₹92.42 | ₹46,210.00 |
| 1,000+ | ₹90.90 | ₹90,900.00 |
1 × ₹125.62
₹125.62
excl. GST
₹148.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TF2190M-TAH
₹125.62 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 140ns
- High Level Delay Time
- 140ns
- Quiescent Current
- 75uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4.5A
- Rise Time
- 25ns
- Fall Time
- 20ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4.5A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The TF2190M is a high voltage, high speed gate driver capable of driving N-channel MOSFET’s and IGBTs in a half-bridge configuration. High voltage process enables the TF2190M’s high side to switch to 600V in a bootstrap operation under high dV/dt conditions. The TF2190M logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices. The driver outputs feature high pulse current buffers designed for minimum driver cross conduction.
Applications
- Motor Controls
- DC-DC Converters
- AC-DC Inverters
- Class D Power Amplifiers
Key features
- Floating high-side driver in bootstrap operation to 600V
- Drives two N-channel MOSFETs or IGBTs in a half-bridge configuration
- Output drivers capable of 4.5A/4.5A typ sink/source
- Logic input (HIN and LIN) 3.3V capability
- Schmitt triggered logic inputs with internal pulldown
- Undervoltage lockout for high and low-side drivers
- Extended temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DGD2190MS8-13#C460708DIODES · SO-8 | DIODES | SO-8 | 4 | ₹325.48 · 4 in stock | View |
| LF2190NTR#C24790161Littelfuse · SOIC-8 | Littelfuse | SOIC-8 | 31 | ₹302.31 · 31 in stock | View | |
 | FAN7191MX-F085#C604977onsemi · SOIC-8 | onsemi | SOIC-8 | 14 | ₹408.64 · 14 in stock | View |
 | FAN7390MX#C606093onsemi · SOIC-8 | onsemi | SOIC-8 | 2,609 | ₹230.56 · 2,609 in stock | View |
