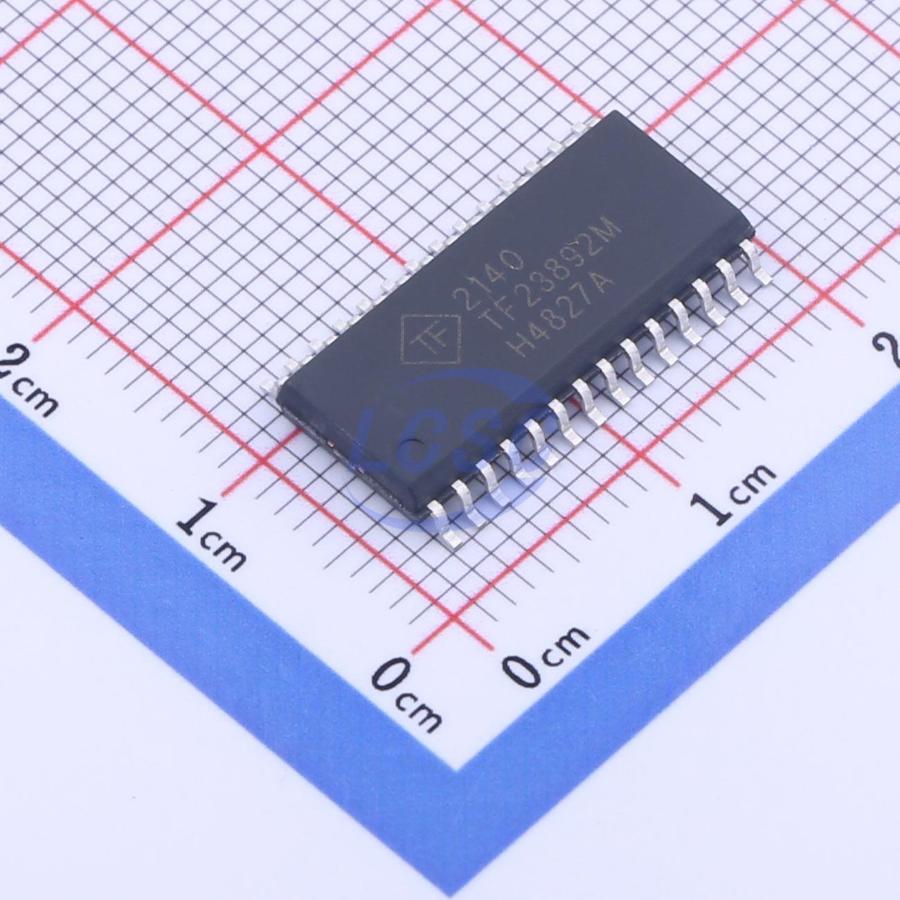

TF23892M-TLH
10V~20V 650mA 350mA SOIC-28 Gate Drivers
3-Phase Half-Bridge Gate Driver
- Manufacturer
- TFSS
- Manufacturer part #
- TF23892M-TLH
- Store part #
- C2958769
- Package / case
- SOIC-28
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,232 in stock
#C2958769
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.49 | ₹122.49 |
| 10+ | ₹112.04 | ₹1,120.40 |
| 30+ | ₹106.28 | ₹3,188.40 |
| 100+ | ₹87.99 | ₹8,799.00 |
| 500+ | ₹85.21 | ₹42,605.00 |
| 1,500+ | ₹83.81 | ₹1,25,715.00 |
1 × ₹122.49
₹122.49
excl. GST
₹144.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
TF23892M-TLH
₹122.49 for 1 + GST
Specifications
- Low Level Delay Time
- 270ns
- High Level Delay Time
- 270ns
- Quiescent Current
- 1.1mA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 650mA
- Rise Time
- 40ns
- Fall Time
- 25ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Overcurrent Protection
- Current - Output High(IOH)
- 350mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.18 g
Overview
A three-phase gate driver IC designed for high voltage, high speed applications, driving N-channel MOSFETs and IGBTs in a half-bridge configuration. High voltage process enables high sides to switch to 600V in a bootstrap operation. Logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with controlling devices and are enabled low to better function in high noise environments. Driver outputs feature high pulse current buffers designed for minimum driver cross conduction. Offers numerous protection functions: shoot-through protection logic, undervoltage lockout (UVLO) for VCC and VBS, overcurrent protection. Both the Vcc UVLO and the overcurrent protection trip an automatic fault clear with a timing that is adjustable with an external capacitor. Offered in SOIC 28 package and operates over an extended -40°C to +125°C temperature range.
Applications
- 3-Phase Motor Inverter Driver
- White Goods - Air Conditioner, Washing Machine, Refrigerator
- Industrial Motor Inverter - Power Tools, Robotics
- General Purpose 3-Phase Inverter
Key features
- Three floating high-side drivers in bootstrap operation to 600V
- 350mA source / 650mA sink output current capability
- Outputs tolerant to negative transients, dV/dt immune
- Logic input 3.3V capability
- Internal deadtime of 290ns to protect MOSFETs
- Wide gate driver supply voltage range: 10V to 20V
- Matched prop delay for all channels
- Outputs out of phase with inputs
- Schmitt triggered logic inputs
- Cross conduction prevention logic
- Undervoltage lockout for all channels
- Overcurrent protection shuts down drivers
- Extended temperature range: -40°C to +125°C
