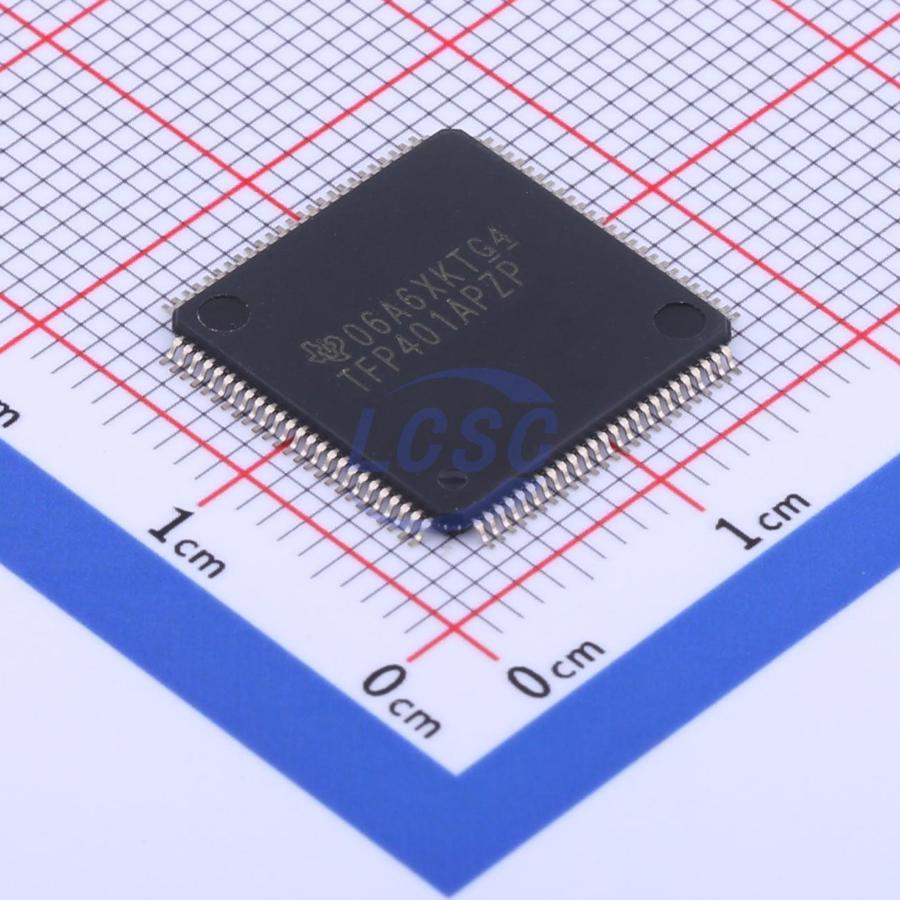

TFP401APZPR

It supports a pixel rate of up to 165MHz (including 1080p and WUXGA at 60Hz), conforms to the Digital Visual Interface (DVI) technical specification, features true color, 24 bits per pixel, and 16.7 million colors (driving 1 to 2 pixels per clock). Excellent fixed impedance matching is achieved through laser trimming of internal termination resistors, with an offset tolerance of up to 1 pixel clock cycle. 4x oversampling reduces power consumption – it operates with a 1.8V core, 3.3V I/O, and power supply. Staggered pixel outputs are used to reduce ground bounce, and the TI PowerPAD package is used to achieve low noise and good power dissipation. With the advanced technology of the TI 0.18µm EPIC - 5 CMOS process, the TFP401A includes HSYNC jitter immunity.

Applications

• High-definition television
• HD PC monitors
• Digital video
• HD projectors
• DVI/HDMI receivers (HDMI video only)

Key features

• Pixel rate up to 165MHz (including 1080p and WUXGA at 60Hz)
• Compliant with Digital Visual Interface (DVI) specification
• True color, 24-bit/pixel, 16.7 million colors (drives 1 to 2 pixels per clock)
• Laser-trimmed internal termination resistors for excellent fixed impedance matching
• Skew tolerance up to 1 pixel clock cycle
• 4× oversampling reduces power consumption – 1.8V core operation, 3.3V I/O and supply
• Staggered pixel outputs to reduce ground bounce
• TI PowerPAD package for low noise and improved power dissipation
• Advanced TI 0.18µm EPIC-5 CMOS process technology
• TFP401A includes HSYNC jitter immunity
