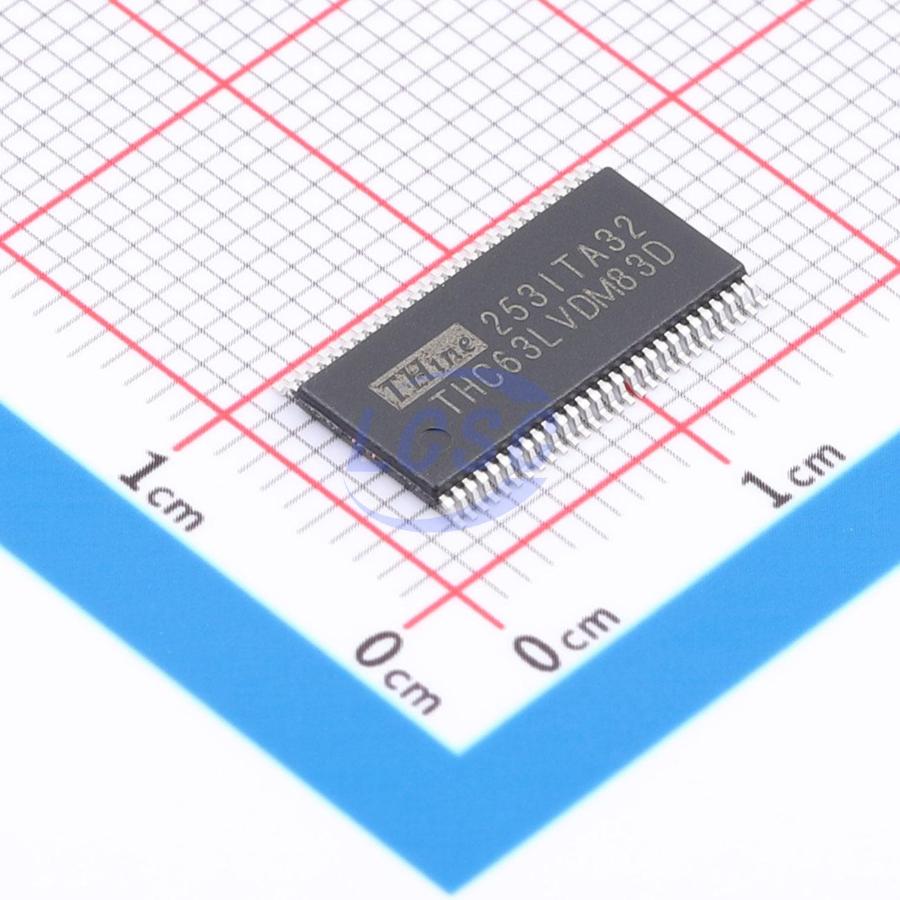

THC63LVDM83D

The THC63LVDM83D transmitter is designed to support pixel data transmission at resolutions up to 1080p/WUXGA between a host and flat panel displays. The device converts 28-bit LVCMOS data into four OpenLDI (LVDS) data streams. Rising-edge or falling-edge clock triggering can be selected via dedicated pin programming. At a transmission clock frequency of 160MHz, 24-bit RGB data and 4-bit timing control data (HSYNC, VSYNC, DE, CONT1) are transmitted at an effective rate of 1120Mbps per OpenLDI (LVDS) channel.

Applications

• Tablet
• Laptop
• Security Camera
• Industrial Camera
• Multifunction Printer

Key features

• TIA/EIA-644 LVDS standard compatible
• 7:1 OpenLDI (LVDS) transmitter
• Operating temperature range: 0 to +70°C
• No special power-up sequence required
• Spread spectrum clock tolerance up to 100kHz frequency modulation with ±2.5% deviation
• Wide pixel clock range: 8MHz to 160MHz, supporting video: NTSC (12.27MHz) – 1080p (148.5MHz); PC: QVGA (8MHz) – WUXGA (154MHz)
• 56-pin TSSOP package
• 1.2V to 3.3V LVCMOS input support
• LVDS swing reducible to 200mV via RS pin for lower EMI and power consumption
• PLL requires no external components
• Power-down mode
• Input clock trigger edge selectable via R/F pin
• EU RoHS compliant
