TIDatasheet (PDF)

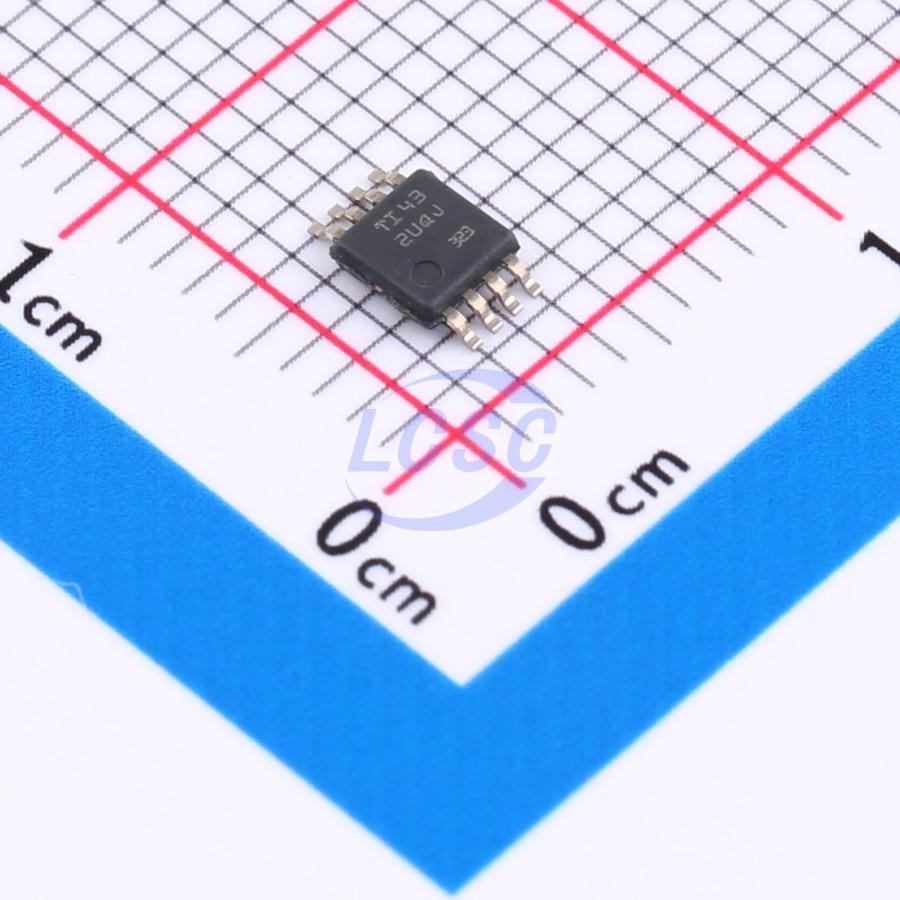

THS2630DGNR
85mA 100uV 75V/us 9.8uA 95dB 245MHz 10.5mA HVSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
HVSSOP-8ROHS CompliantActive
High-speed, low-noise, fully differential I/O amplifier
- Manufacturer
- TI
- Manufacturer part #
- THS2630DGNR
- Store part #
- C31266609
- Package / case
- HVSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,876 in stock
#C31266609
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,069.99 | ₹1,069.99 |
| 10+ | ₹954.20 | ₹9,542.00 |
| 30+ | ₹880.06 | ₹26,401.80 |
| 100+ | ₹808.51 | ₹80,851.00 |
1 × ₹1,069.99
₹1,069.99
excl. GST
₹1,262.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THS2630DGNR
₹1,069.99 for 1 + GST
Specifications
- output type
- Differential
- Settling time
- 31ns
- Output Current
- 85mA
- Vos - Input Offset Voltage
- 100uV
- Slew Rate
- 75V/us
- Input Offset Current(Ios)
- 22nA
- Input Offset Current Drift (Ios TC)
- 0.13nA/℃
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 9.8uA
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Power Supply Rejection Ratio (PSRR)
- 98dB
- Maximum Power Supply Range (Vdd-Vss)
- 35V
- Input Offset Voltage Drift(Vos TC)
- 3.2uV/℃
- Gain Bandwidth Product
- 245MHz
- Quiescent Current
- 10.5mA
- Features
- Single-ended to differential conversion;Integrated ADC driver;Enable/shutdown function;Built-in compensation;Built-in signal filtering
- Dual Supply
- -17.5V~-2.5V;2.5V~17.5V
- Single Supply
- 5V~35V
- Noise density(eN)
- 1.1nV/√Hz@10kHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
