TIDatasheet (PDF)

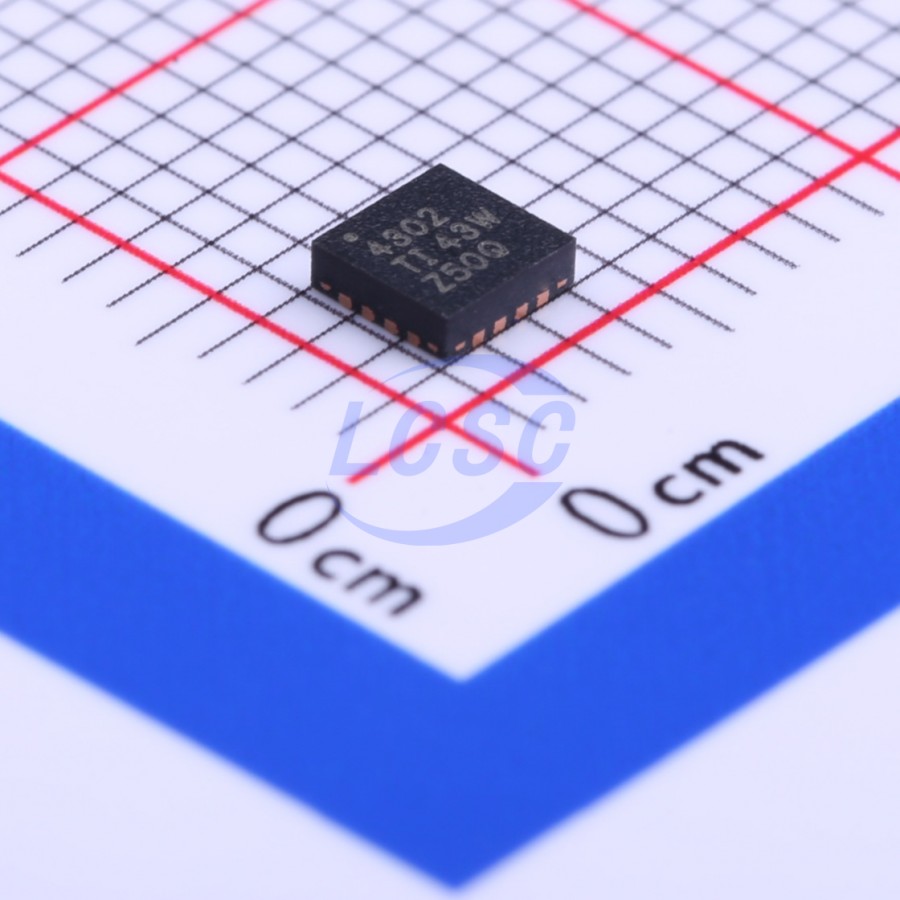

THS4302RGTR
180mA 1 5.05mV 5.5V/ns 60dB 7uA 37mA 12GHz VQFN-16-EP(3x3) Instrumentation, Op Amps, Buffer Amps RoHS
VQFN-16-EP(3x3)ROHS3 CompliantActive
Wideband fixed-gain amplifier
- Manufacturer
- TI
- Manufacturer part #
- THS4302RGTR
- Store part #
- C201695
- Package / case
- VQFN-16-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C201695
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,651.95 | ₹1,651.95 |
| 10+ | ₹1,492.75 | ₹14,927.50 |
| 30+ | ₹1,434.98 | ₹43,049.40 |
| 100+ | ₹1,320.30 | ₹1,32,030.00 |
1 × ₹1,651.95
₹1,651.95
excl. GST
₹1,949.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
THS4302RGTR
₹1,651.95 for 1 + GST
Specifications
- Output Current
- 180mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5.05mV
- Slew Rate
- 5.5V/ns
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 60dB
- Ib - Input Bias Current
- 7uA
- Input Offset Voltage Drift(Vos TC)
- 20uV/℃
- Quiescent Current
- 37mA
- Gain Bandwidth Product
- 12GHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 2.8nV/√Hz@1MHz
- Dual Supply
- -2.5V~-1.5V;1.5V~2.5V
- Single Supply
- 3V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
A wideband, fixed-gain amplifier that offers high bandwidth, high slew rate, low noise, and low distortion. This combination of specifications enables analog designers to transcend current performance limitations and process analog signals at much higher speeds than previously possible with closed-loop, complementary amplifier designs. This device is offered in a 16-pin leadless package and incorporates a power-down mode for quiescent power savings.
Applications
- Wideband Signal Processing
- Wireless Transceivers
- IF Amplifier
- ADC Preamplifier
- DAC Output Buffers
- Test, Measurement, and Instrumentation
- Medical and Industrial Imaging
Key features
- Fixed-Gain Amplifier, 5 V/V (14 dB)
- Wide Bandwidth: 2.4 GHz
- High Slew Rate: 5500 V/µs
- Low Total Input Referred Noise: 2.8 nV/√Hz
- Low Distortion: HD₃: -86 dBc at 30 MHz; HD₃: -81 dBc at 70 MHz; IMD₃: -88 dBc at 100 MHz; olP₃: 39 dBm at 100 MHz; IMD₃: -73 dBc at 300 MHz; olP₃: 32 dBm at 300 MHz
- High Output Drive: ±180 mA
- Power Supply Voltage: 3 V or 5 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | THS4303RGTT#C702040TI · VQFN-16-EP(3x3) | TI | VQFN-16-EP(3x3) | 61 | ₹1,723.53 · 61 in stock | View |
| THS4302RGTT#C2058660TI · VQFN-16-EP(3x3) | TI | VQFN-16-EP(3x3) | On request | ₹1,064.60 · 0 in stock | View | |
