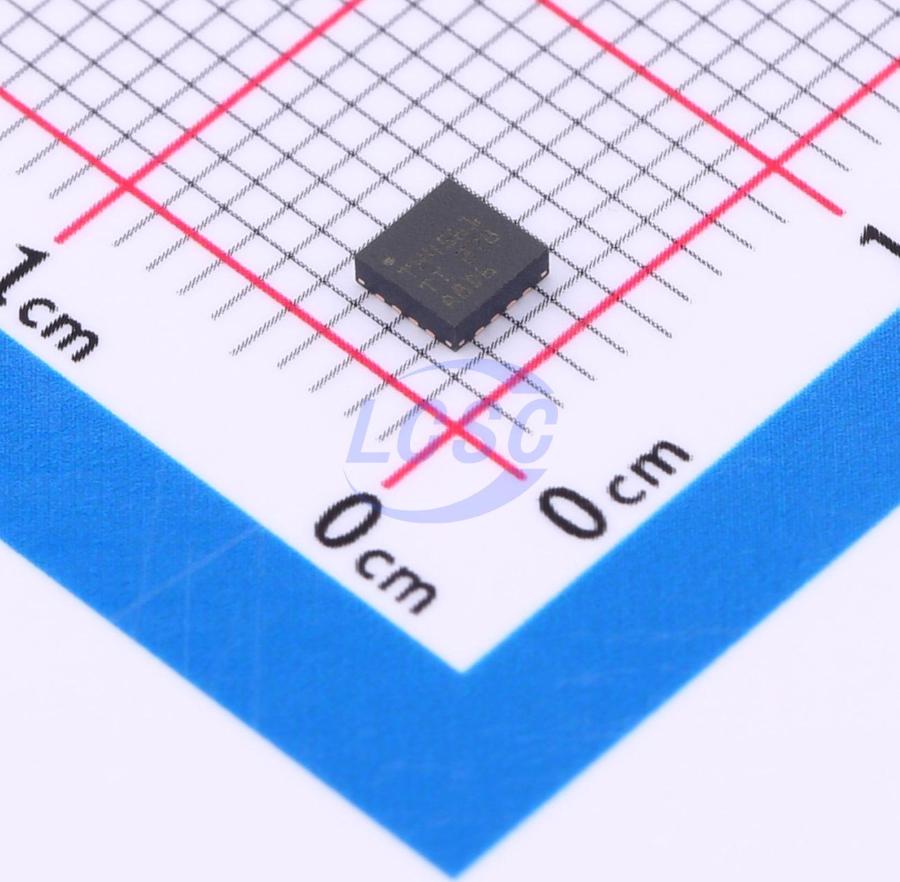

THS4561IRGTR

31mA 1 250uV 230V/us 110dB 600nA 775uA 68MHz Rail-to-rail output VQFN-16(3x3) Instrumentation, Op Amps, Buffer Amps RoHS

VQFN-16(3x3)ROHS CompliantActive

THS4561 Low-Power, Wide Supply Voltage Range, 60MHz, Fully Differential Amplifier

Manufacturer: TI
Manufacturer part #: THS4561IRGTR
Store part #: C5213919
Package / case: VQFN-16(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,725 in stock

#C5213919

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹366.13	₹366.13
10+	₹347.90	₹3,479.00
30+	₹337.26	₹10,117.80
100+	₹326.20	₹32,620.00
500+	₹321.20	₹1,60,600.00
1,000+	₹319.03	₹3,19,030.00

Quantity (min 1)

1 × ₹366.13

₹366.13

excl. GST

₹432.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

THS4561IRGTR

₹366.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Settling time: 90ns
Output Current: 31mA
Number of Channels: 1
Vos - Input Offset Voltage: 250uV
Slew Rate: 230V/us
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 110dB
Ib - Input Bias Current: 600nA
Power Supply Rejection Ratio (PSRR): 110dB
Input Offset Voltage Drift(Vos TC): 4uV/℃
Quiescent Current: 775uA
Gain Bandwidth Product: 68MHz
Features: Single-ended to differential conversion;Enable/shutdown function;Adjustable output common-mode voltage
Rail to Rail: Rail-to-rail output
Single Supply: 2.85V~12.6V
Noise density(eN): 4nV/√Hz@500Hz

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The THS4561 fully differential amplifier (FDA) provides a simple interface between a single-ended source and a differential output to meet the requirements of precision analog-to-digital converters (ADCs). The THS4561 features an ultra-low 1/f voltage noise corner frequency of 8 Hz and a low total harmonic distortion (THD) of 130 dB, while consuming only 775 µA of quiescent current. It is well-suited for power-sensitive data acquisition (DAQ) systems that require a combination of an amplifier and an ADC to improve the signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) for high performance. The THS4561 has the required negative supply rail input for connecting DC-coupled, ground-centered source signals to single-supply differential-input ADCs. Low DC errors and temperature drift terms meet the input requirements of emerging high-speed and high-resolution successive approximation register (SAR) and Δ - Σ ADCs. The 2.85 V to 12.6 V supply voltage range, flexible output common-mode setting, and low supply headroom help meet the requirements of various ADC inputs and digital-to-analog converter (DAC) outputs. The THS4561 device is specified for operation from – 40°C to +125°C.
