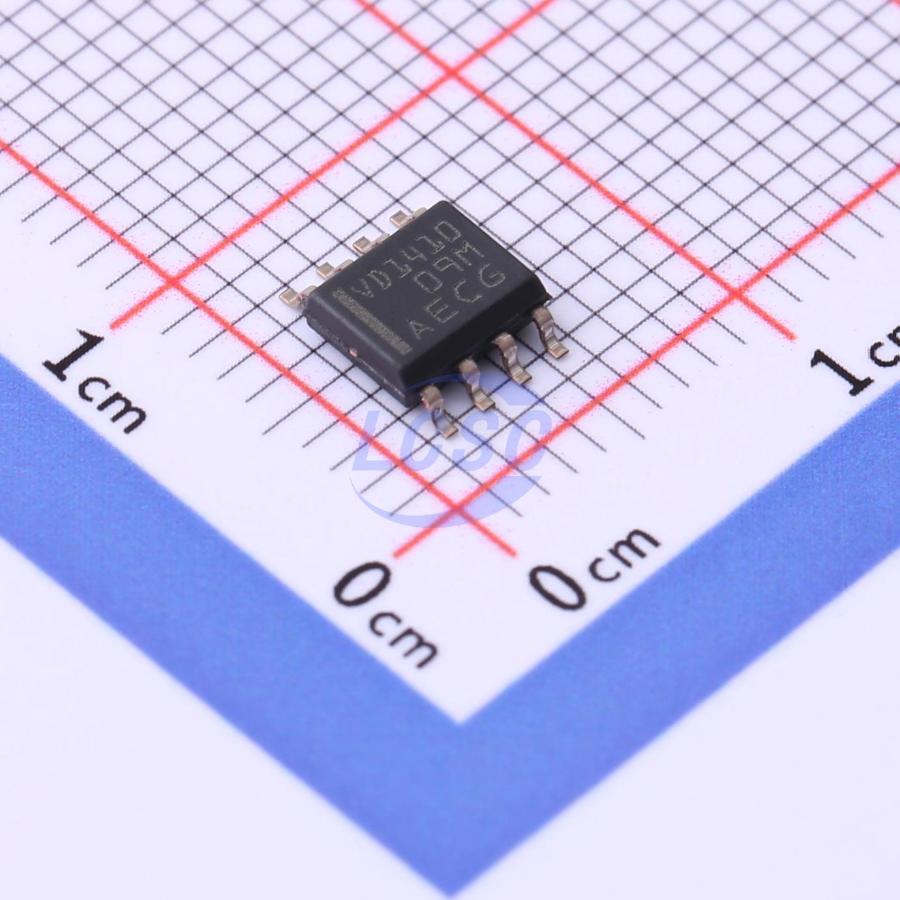

THVD1410DR
3V~5.5V Transceiver 500Kbps 256 SOIC-8 Drivers, Receivers, Transceivers RoHS
SOIC-8ROHS3 CompliantActive
THVD14xx 3.3V to 5V RS-485 transceiver with ±18kV IEC ESD protection
- Manufacturer
- TI
- Manufacturer part #
- THVD1410DR
- Store part #
- C2671345
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,524 in stock
#C2671345
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹664.75 | ₹664.75 |
| 10+ | ₹565.13 | ₹5,651.30 |
| 30+ | ₹505.89 | ₹15,176.70 |
| 100+ | ₹445.77 | ₹44,577.00 |
| 500+ | ₹418.21 | ₹2,09,105.00 |
| 1,000+ | ₹405.63 | ₹4,05,630.00 |
1 × ₹664.75
₹664.75
excl. GST
₹784.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
THVD1410DR
₹664.75 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+125℃
- Number of Nodes
- 256
- ESD Protect
- ±18kV
- Communication Mode
- Half-Duplex
- Number of Drivers
- 1
- Features
- Tx/Rx enable;Enable shutdown;Fail-safe
- Number of Receivers
- 1
- Quiescent Supply Current
- 3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The THVD14xx is a series of noise-immune RS-485/RS-422 transceivers designed specifically to operate in harsh industrial environments. The bus pins of these devices can withstand high levels of IEC Electrical Fast Transients (EFT) and IEC Electrostatic Discharge (ESD) events, eliminating the need for additional system-level protection components.
Applications
- Motor drivers
- Factory automation and control
- Grid infrastructure
- Building automation
- HVAC systems
- Video surveillance
- Process analytics
- Wireless infrastructure
Key features
- Meets or exceeds TIA/EIA-485A standard requirements
- 3V to 5.5V supply voltage
- Differential output greater than 2.1V for PROFIBUS compatibility with 5V supply
- Bus I/O ESD protection: ±30kV HBM, ±18kV IEC 61000-4-2 contact discharge, ±25kV IEC 61000-4-2 air-gap discharge, ±4kV IEC 61000-4-4 fast transient burst
- Extended common-mode range for operation: ±15V
- Low EMI at 500kbps and 50Mbps data rates
- Large receiver hysteresis for noise suppression
- Low power consumption
- Standby supply current: <1μA, operating current: <3mA
- Extended ambient temperature range: -40°C to 125°C
- Glitch-free power-up/power-down for hot-plug capability
- Open, short, and idle bus failsafe protection
- 1/8 unit load (up to 256 bus nodes)
- Space-saving VSON and VSSOP packages or SOIC package for drop-in compatibility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | THVD1426DR#C5215921TI · SOIC-8 | TI | SOIC-8 | 13,005 | ₹264.24 · 13,005 in stock | View |
 | TPT481L1-SO1R#C52134353PEAK · SOP-8 | 3PEAK | SOP-8 | 1,880 | ₹69.17 · 1,880 in stock | View |
 | THVD2410DR#C1849398TI · SOIC-8 | TI | SOIC-8 | 12,467 | ₹113.79 · 12,467 in stock | View |
 | BSP48505AS#C22440685BORN · SOIC-8 | BORN | SOIC-8 | 1,045 | ₹31.95 · 1,045 in stock | View |
 | CS48505S#C3202824Chipanalog · SOIC-8 | Chipanalog | SOIC-8 | On request | Price on request | Quote |
