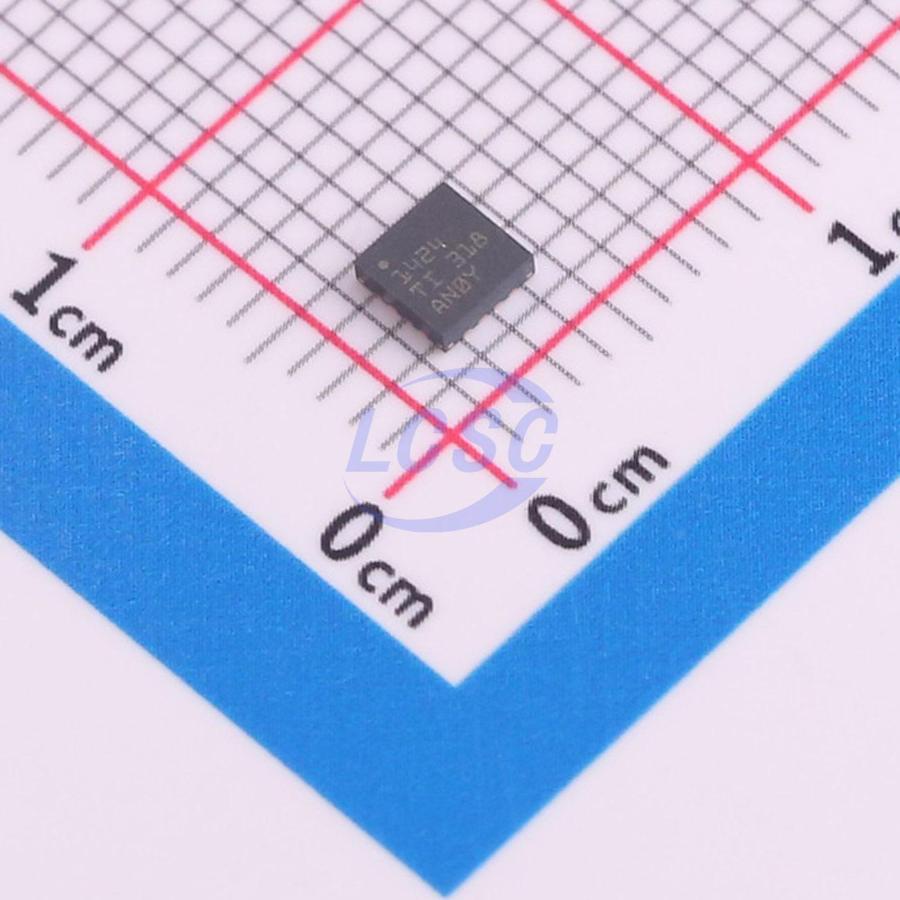

THVD1424RGTR

3V~5.5V Transceiver 20Mbps VQFN-16(3x3) Drivers, Receivers, Transceivers RoHS

VQFN-16(3x3)ROHS3 CompliantActive

RS-485 Transceiver With Slew Rate Control, Integrated 120-Ohm Switchable Termination Resistor and Duplex Switching

Manufacturer: TI
Manufacturer part #: THVD1424RGTR
Store part #: C5359161
Package / case: VQFN-16(3x3)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,585 in stock

#C5359161

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹233.92	₹233.92
10+	₹196.99	₹1,969.90
30+	₹176.58	₹5,297.40
100+	₹153.56	₹15,356.00
500+	₹143.35	₹71,675.00
1,000+	₹138.80	₹1,38,800.00

Quantity (min 1)

1 × ₹233.92

₹233.92

excl. GST

₹276.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

THVD1424RGTR

₹233.92 for 1 + GST

Specifications

Voltage - Supply: 3V~5.5V
Type: Transceiver
Data Rate: 20Mbps
Operating Temperature: -40℃~+125℃
ESD Protect: ±16kV
Communication Mode: Full-Duplex;Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown;Fail-safe;Under-voltage lockout;Overcurrent Protection;Automatic fault recovery;Internal termination resistor;Thermal shutdown protection
Number of Receivers: 1
Quiescent Supply Current: 3mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.175 g

Overview

The THVD1424 is a flexible RS-485 transceiver for industrial applications. The device has features such as on-chip 120-Ω termination resistor, slew rate control and interchangeability between half and full duplex mode. All the features are pin-controlled. This enables the device to be used at any node location (end nodes or middle nodes) in any network, twowire (half duplex) or 4-wire (full duplex), slow or fast. End-equipment designers can now design a common printed circuit board (PCB) and configure it via software for various application needs. This can save considerable design and qualification time for the customers. The bus pins are immune to high levels of IEC Contact Discharge ESD events, eliminating the need for additional system level protection components. The device operates from 3 to 5.5-V bus supply, while the logic supply voltage range is 1.65 V to 5.5 V. The wide common-mode voltage range and low input leakage on bus pins makes the devices suitable for multi-point applications over long cable runs. The device is available in a space-saving, thermally efficient 16-pin VQFN package. The device is characterized for ambient temperatures from -40°C to 125°C.

Applications

Factory automation & control
Building automation
Industrial transport
HVAC systems
Smart meters
Lighting
Grid Infrastructure

Key features

Meets or exceeds the requirements of the TIA/EIA-485A standard
3-V to 5.5-V bus supply voltage
1.65 V to 5.5 V supply for logic signals
Differential output exceeds 2.1 V for PROFIBUS compatibility with 5-V supply
Pin configurable Half-duplex and full-duplex
Pin controlled on-chip 120 Ω termination resistor on bus pins
Maximum Data rate configurable
SLR = High: 500 kbps SLR = Low or floating: 20 Mbps
±16-kV HBM ESD
±8-kV IEC 61000-4-2 Contact discharge ±15-kV IEC 61000-4-2 Air gap discharge ±4-kV IEC 61000-4-4 Fast transient burst ±16-V bus fault protection (absolute max voltage on bus pins)
Extended industrial temperature range: -40°C to 125°C
Low power consumption
Shutdown supply current <5 μA Quiescent current during operation <3 mA
Glitch-free power-up/power-down for hot plug-in capability
Open, short, and idle bus failsafe
Small, space-saving 16-VQFN (3 mm×3 mm) package
