NXP

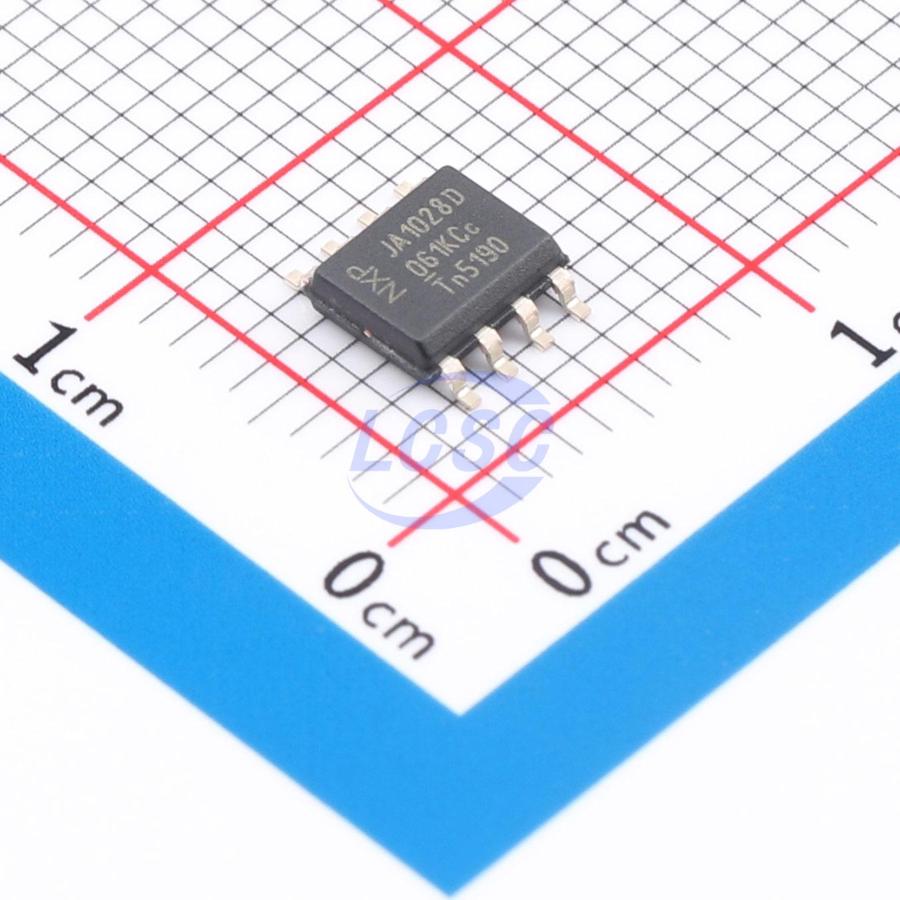

TJA1028DT/0Z

4.5V~28V Transceiver 20Kbps SO-8 Drivers, Receivers, Transceivers RoHS

SO-8ROHS3 CompliantActive

LIN transceiver with integrated voltage regulator

Manufacturer: NXP
Manufacturer part #: TJA1028DT/0Z
Store part #: C24267737
Package / case: SO-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,007 in stock

#C24267737

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹68.66	₹68.66
10+	₹60.41	₹604.10
30+	₹56.28	₹1,688.40
100+	₹52.15	₹5,215.00
500+	₹49.76	₹24,880.00
1,000+	₹48.45	₹48,450.00

Quantity (min 1)

1 × ₹68.66

₹68.66

excl. GST

₹81.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TJA1028DT/0Z

₹68.66 for 1 + GST

Specifications

Voltage - Supply: 4.5V~28V
Type: Transceiver
number of channels: 1
Data Rate: 20Kbps
Operating Temperature: -40℃~+150℃
ESD Protect: ±8kV
Supply Current: 2mA
Features: Low-power mode;Bus wake-up;TXD timeout protection;Thermal shutdown protection;Under-voltage detection
Quiescent Supply Current: 45uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The TJA1028 is a LIN 2.0/2.1/SAE J2602 and ISO 17987-4:2016 (12 V) compliant transceiver with an integrated low-drop voltage regulator. The voltage regulator can deliver up to 70 mA and is available in 3.3 V and 5.0 V variants. TJA1028 facilitates the development of compact nodes in Local Interconnect Network (LIN) bus systems. To support robust designs, the TJA1028 offers strong ElectroStatic Discharge (ESD) performance and can withstand high voltages on the LIN bus. In order to minimize current consumption, the TJA1028 supports a Sleep mode in which the LIN transceiver and the voltage regulator are powered down while still having wake-up capability via the LIN bus. The TJA1028 comes in an SO8 package, and also in a 3 mm×3 mm HVSON8 package that reduces the required board space by over 70 %. This feature can prove extremely valuable when board space is limited.

Key features

LIN 2.0/2.1/2.2 compliant
SAE J2602 compliant
ISO 17987-4:2016 (12 V) compliant (TJA1028A/B/C/D)
Downward compatible with LIN 1.3
Internal LIN responder termination resistor
Voltage regulator offering 5 V or 3.3 V, 70 mA capability
2 % voltage regulator accuracy over specified temperature and supply ranges
Voltage regulator output undervoltage detection with reset output
Voltage regulator is short-circuit proof to ground
Voltage regulator stable with ceramic, tantalum and aluminum electrolyte capacitors
Robust ESD performance; ±8 kV according to IEC61000-4-2 for pins LIN and V_BAT
Pins LIN and V_BAT protected against transients in the automotive environment (ISO 7637)
Very low LIN bus leakage current of <2 μA when battery not connected
LIN pin short-circuit proof to battery and ground
Transmit data (TXD) dominant time-out function
Thermally protected
Very low ElectroMagnetic Emission (EME)
High ElectroMagnetic Immunity (EMI)
Typical Standby mode current of 45 μA
Typical Sleep mode current of 12 μA
LIN bus wake-up function
K-line compatible
Available in SO8 and HVSON8 packages
Leadless HVSON8 package (3.0 mm×3.0 mm) with improved Automated Optical Inspection (AOI) capability
Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant)
