HGSEMIDatasheet (PDF)

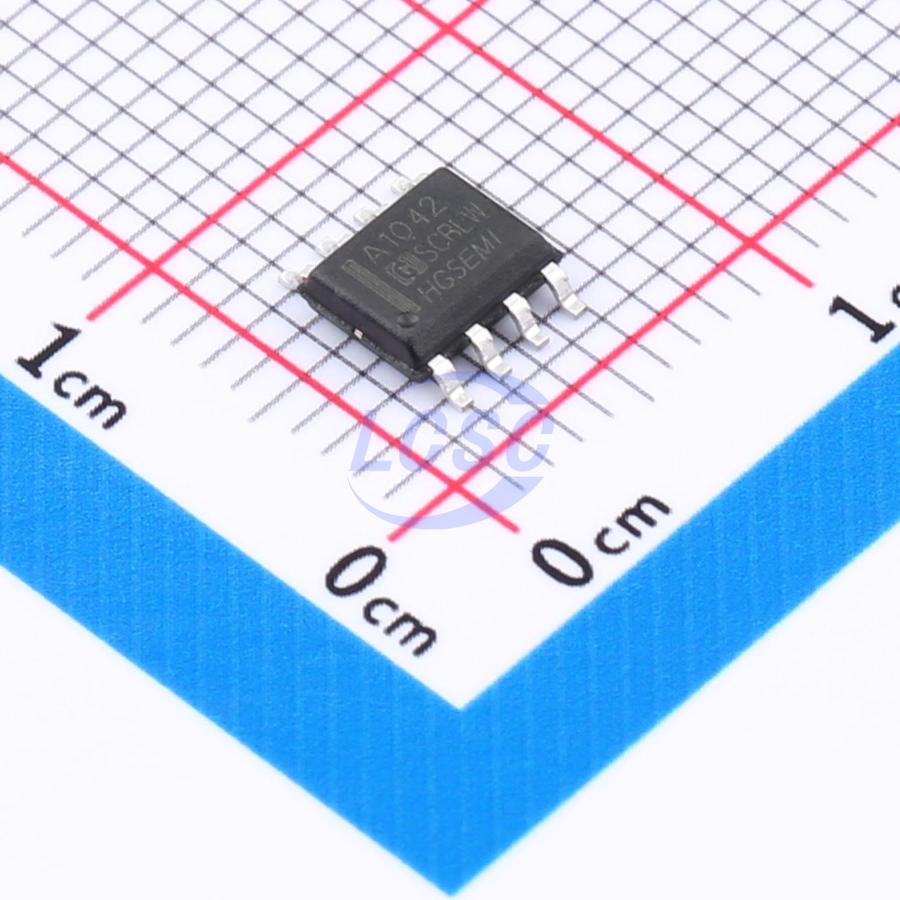

TJA1042M/TR
CAN Transceiver 4.5V~5.5V 5Mbps SOP-8 Drivers, Receivers, Transceivers
SOP-8RoHSActive
High-speed bus transceiver
- Manufacturer
- HGSEMI
- Manufacturer part #
- TJA1042M/TR
- Store part #
- C19193498
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,450 in stock
#C19193498
Stock & price checked 40 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.79 | ₹42.79 |
| 10+ | ₹37.40 | ₹374.00 |
| 30+ | ₹35.05 | ₹1,051.50 |
| 100+ | ₹32.24 | ₹3,224.00 |
| 500+ | ₹30.96 | ₹15,480.00 |
| 1,000+ | ₹30.10 | ₹30,100.00 |
1 × ₹42.79
₹42.79
excl. GST
₹50.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJA1042M/TR
₹42.79 for 1 + GST
Specifications
- Type
- CAN Transceiver
- Voltage - Supply
- 4.5V~5.5V
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+125℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Undervoltage Protection;Thermal shutdown protection;Short-Circuit Protection;ESD protection
- Supply Current
- 70mA
- Quiescent Supply Current
- 15uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.246 g
Overview
The TJA1042 is an interface circuit between a CAN protocol controller and the physical bus, suitable for automotive and industrial control applications, with a maximum speed of 5 Mbaud. It provides differential transmit and receive capabilities for the CAN bus controller. The TJA1042 features excellent EMC performance, ideal passive behavior in the power-off state, low-power management, and remote wake-up support.
Applications
- Automotive electronics
- Industrial control
Key features
- Compliant with ISO11898 standard
- Meets automotive Grade 1 requirements
- High speed (up to 5 Mbaud)
- Low electromagnetic emission (EME)
- Wide common-mode range for differential receiver
- Low EME and high EMI immunity
- Standby mode with bus wake-up (remote) function
- Optional SPLIT voltage output for stable recessive bus level (further improved EME)
- Standby bus dominant timeout function
- Transmit data TXD dominant timeout function
- TJA1042-3 I/O voltage range supports 3.3V to 5V MCU
- VCC and VIO power supply with undervoltage protection
- Thermal protection
- Bus ESD protection (±8kV)
- Bus DC voltage tolerance (±70V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TJA1042M-3/TR#C19193499HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,385 | ₹42.75 · 2,385 in stock | View |
 | HGA1042M-3/TR#C22461590HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,728 | ₹39.21 · 1,728 in stock | View |
 | HGA1040M/TR#C512780HGSEMI · SOIC-8 | HGSEMI | SOIC-8 | 2,461 | ₹63.73 · 2,461 in stock | View |
 | PCA82C251M/TR#C7432060HGSEMI · SOP-8 | HGSEMI | SOP-8 | 871 | ₹52.44 · 871 in stock | View |
 | HGA82C251M/TR#C7432110HGSEMI · SOP-8 | HGSEMI | SOP-8 | 185 | ₹66.31 · 185 in stock | View |
