HANSCHIP semiconductorDatasheet (PDF)

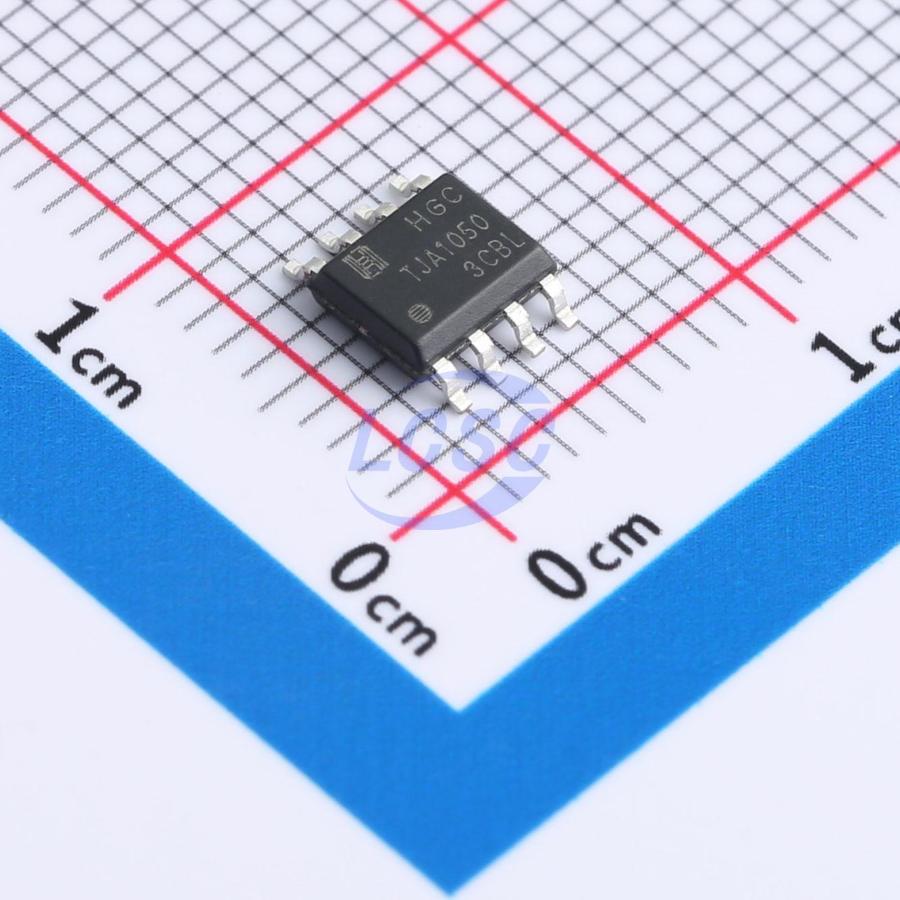

TJA1050DRG
CAN Transceiver 4.75V~5.25V 1Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive
High-speed bus receiver
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- TJA1050DRG
- Store part #
- C19723770
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,995 in stock
#C19723770
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹56.85 | ₹284.25 |
| 50+ | ₹44.93 | ₹2,246.50 |
| 150+ | ₹40.03 | ₹6,004.50 |
| 500+ | ₹30.88 | ₹15,440.00 |
| 2,500+ | ₹27.90 | ₹69,750.00 |
| 5,000+ | ₹26.20 | ₹1,31,000.00 |
5 × ₹56.85
₹284.25
excl. GST
₹335.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJA1050DRG
₹284.25 for 5 + GST
Specifications
- Type
- CAN Transceiver
- Voltage - Supply
- 4.75V~5.25V
- number of channels
- 1
- Data Rate
- 1Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Bus fault protection;Thermal shutdown protection;ESD protection;Enable
- Supply Current
- 70mA
- Quiescent Supply Current
- 15uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
The TJA1050 is an interface between a CAN protocol controller and the physical bus. It is primarily designed for high-speed automotive applications, supporting data rates up to 1 Mbaud. The TJA1050 provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Applications
- Automotive Electronics
Key features
- Fully compliant with ISO 11898 standard
- High speed (up to 1Mbaud)
- Very low electromagnetic emission (EME)
- Differential receiver with wide common-mode range for EMI immunity
- Unpowered transceiver disconnects from bus (zero load)
- Input stage compatible with 3.3V to 5V devices
- Split termination allows voltage source to stabilize recessive bus level (further improves EME)
- Supports connection of at least 110 nodes
- Ultra-low current consumption standby mode with bus wake-up (remote) capability
- TXD dominant timeout function
- Bus pin protection in automotive transient environments
- Protection against bus pins and SPLIT pin short-circuit to power supply and ground thermal protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TJA1040DRG#C19723769HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 1,593 | ₹37.37 · 1,593 in stock | View |
