TJA1051T
4.5V~5.5V CAN FD Transceiver 5Mbps SOP-8 Drivers, Receivers, Transceivers RoHS
SOP-8ROHS CompliantActive

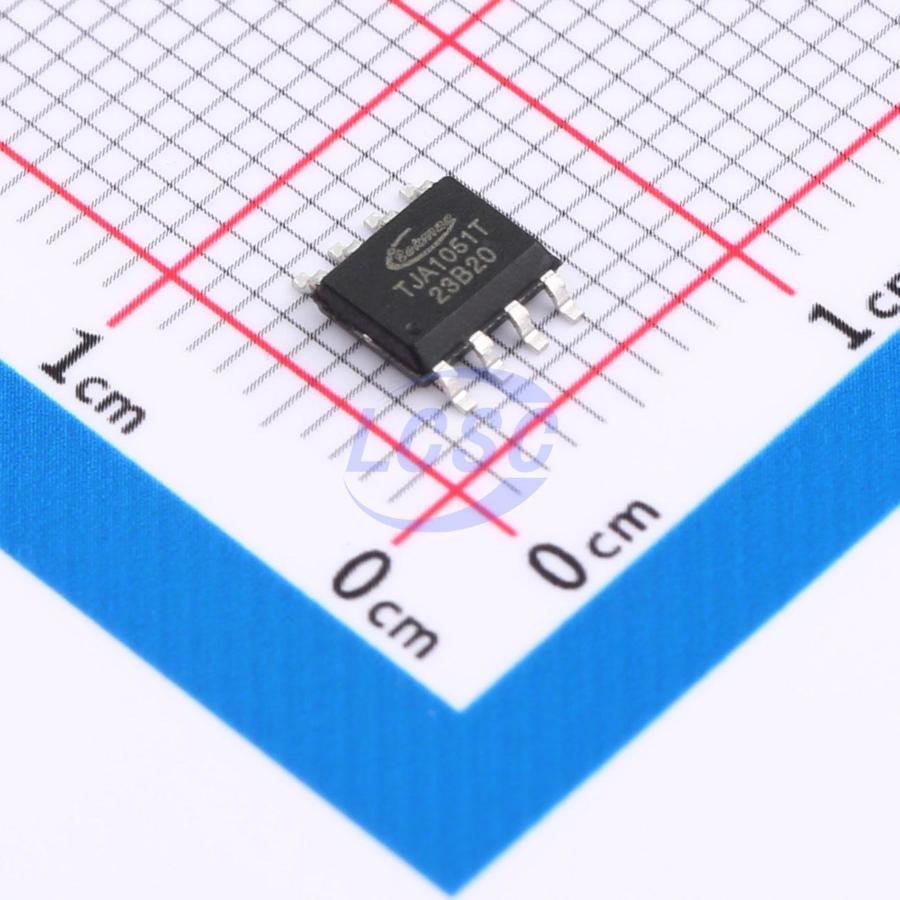

High-speed CAN transceiver TJA1051T
- Manufacturer
- Tokmas
- Manufacturer part #
- TJA1051T
- Store part #
- C7432801
- Package / case
- SOP-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,781 in stock
#C7432801
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.58 | ₹72.58 |
| 10+ | ₹58.24 | ₹582.40 |
| 30+ | ₹52.15 | ₹1,564.50 |
| 100+ | ₹44.55 | ₹4,455.00 |
| 500+ | ₹33.68 | ₹16,840.00 |
| 1,000+ | ₹31.73 | ₹31,730.00 |
1 × ₹72.58
₹72.58
excl. GST
₹85.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TJA1051T
₹72.58 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Thermal shutdown protection;Bus fault protection;TXD dominant timeout;Silent mode;Low-power mode;Integrated level shifting;Undervoltage Protection;ESD protection;Short-Circuit Protection
- Supply Current
- 70mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.211 g
Overview
TJA1051 is an interface chip used between the CAN protocol controller and the physical bus. It can be used for in-vehicle, industrial control and other fields. It supports 5Mbps (CAN FD), and has ability to perform differential signal transmission between bus and the CAN protocol controller.
Key features
- Fully compliant with ISO 11898 standard
- Thermally protected
- ±70V BUS protection
- Driver (TXD) dominant time-out function
- Silent receive mode
- TJA1051AT with off mode in low power consumption
- TJA1051A TK I/O allows for direct interfacing with 3 V to 5 V MCU
- Undervoltage detection on pins VCC and VIO
- Timing guaranteed for data rates up to 5 Mbit/s in the (CAN FD) fast phase
- The typical loop delay from TXD to RXD is less than 100ns
- Unpowered nodes do not interfere with the bus
- Provide DFN3*3-8, small outline, leadless package
- SOP-8
