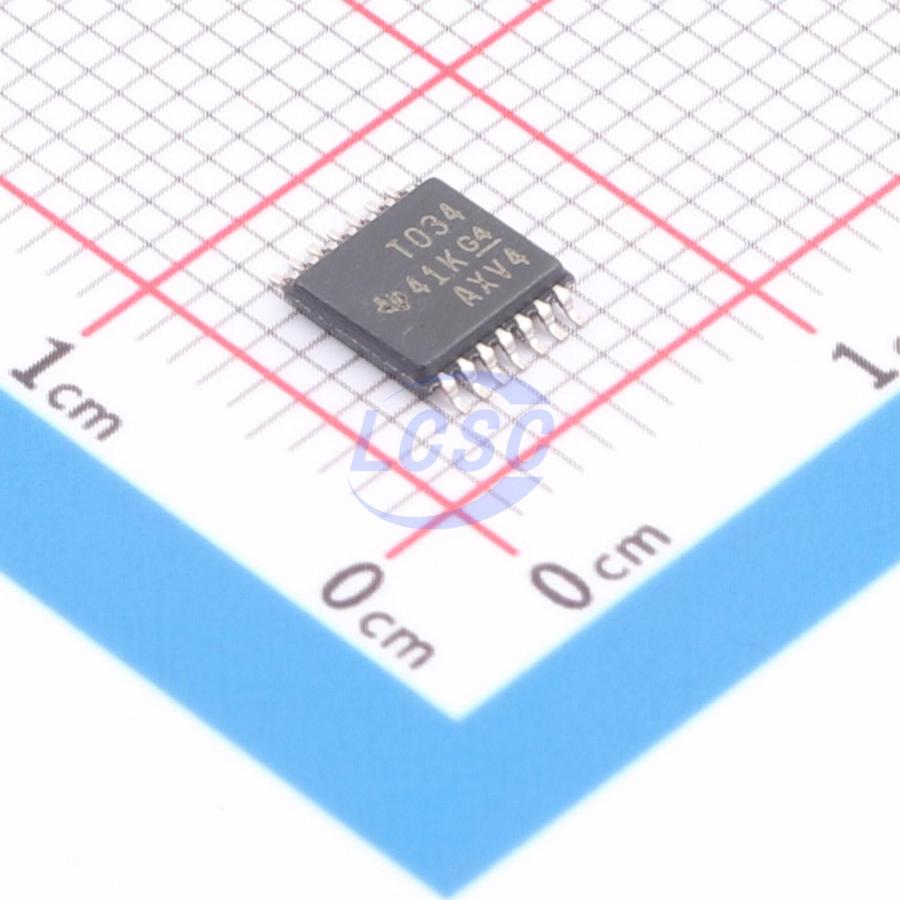

TL034CPWR
Four channels 1.5mV 2.9V/us 94dB 2pA 2.5uA 1.1MHz TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-14ROHS3 CompliantActive
- Manufacturer
- TI
- Manufacturer part #
- TL034CPWR
- Store part #
- C2058278
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2058278
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.09 | ₹232.09 |
| 10+ | ₹226.03 | ₹2,260.30 |
| 30+ | ₹222.10 | ₹6,663.00 |
| 100+ | ₹218.19 | ₹21,819.00 |
1 × ₹232.09
₹232.09
excl. GST
₹273.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TL034CPWR
₹232.09 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Vos - Input Offset Voltage
- 1.5mV
- Slew Rate
- 2.9V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 94dB
- Ib - Input Bias Current
- 2pA
- Input Offset Voltage Drift(Vos TC)
- 5.9uV/℃
- Quiescent Current
- 2.5uA
- Gain Bandwidth Product
- 1.1MHz
- Input Voltage Noise Density
- 30nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.43 g
