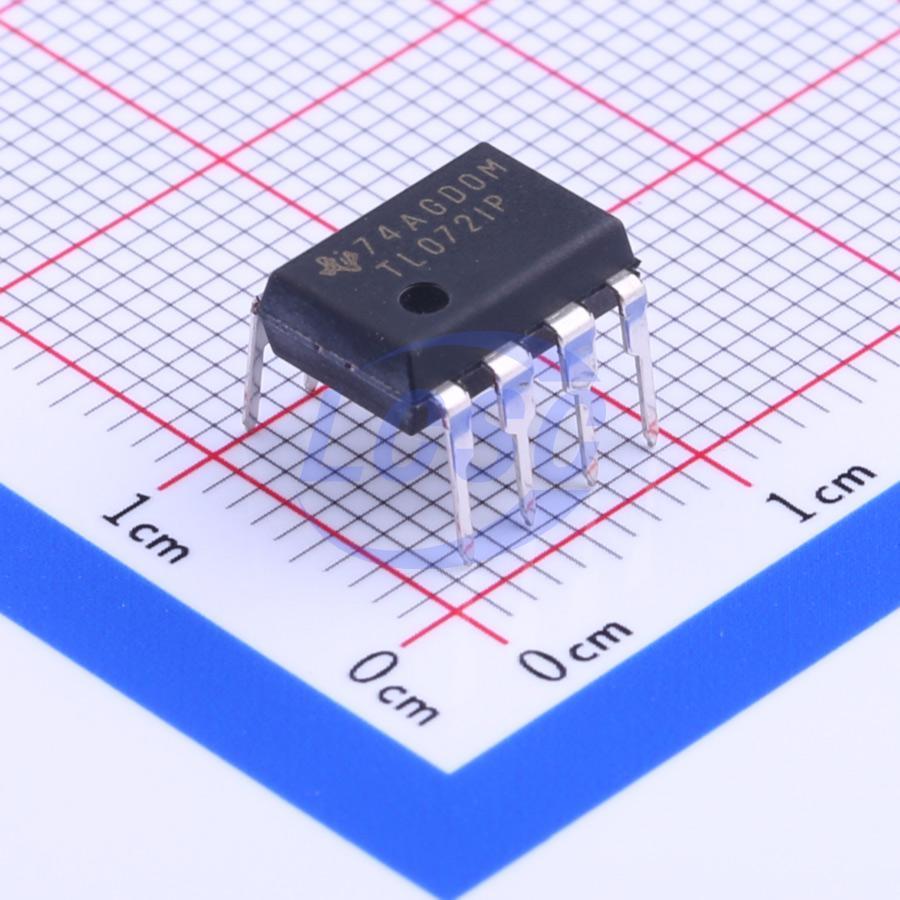

TL072IP
2 3mV 13V/us 100dB 65pA 1.4mA 3MHz PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS CompliantActive
Low-Noise JFET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL072IP
- Store part #
- C110329
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,532 in stock
#C110329
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.74 | ₹99.74 |
| 10+ | ₹85.00 | ₹850.00 |
| 50+ | ₹74.80 | ₹3,740.00 |
| 100+ | ₹66.35 | ₹6,635.00 |
| 500+ | ₹63.76 | ₹31,880.00 |
| 1,000+ | ₹62.01 | ₹62,010.00 |
1 × ₹99.74
₹99.74
excl. GST
₹117.69 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL072IP
₹99.74 for 1 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 65pA
- Input Offset Voltage Drift(Vos TC)
- 18uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Built-in compensation;Latch-up suppression
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.82 g
Overview
The TL07xx JFET-input operational amplifiers incorporate well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio pre-amplifier applications. The TL071 device has offset pins to support external input offset correction.
Applications
- Motor Integrated Systems
- UPS Drives and Control Solutions
- AC Inverter and VF Drives
- Renewables: Solar Inverters
- Pro Audio Mixers
- DLP Front Projection System
- Oscilloscopes
Key features
- Low Power Consumption
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias and Offset Currents
- Output Short-Circuit Protection
- Low Total Harmonic Distortion: 0.003% (Typical)
- Low Noise
- Vn = 18 nV/√Hz (Typical) at f = 1 kHz
- High-Input Impedance: JFET Input Stage
- Internal Frequency Compensation
- Latch-Up-Free Operation
- High Slew Rate: 13 V/μs (Typical)
- Common-Mode Input Voltage Range Includes VCC+
