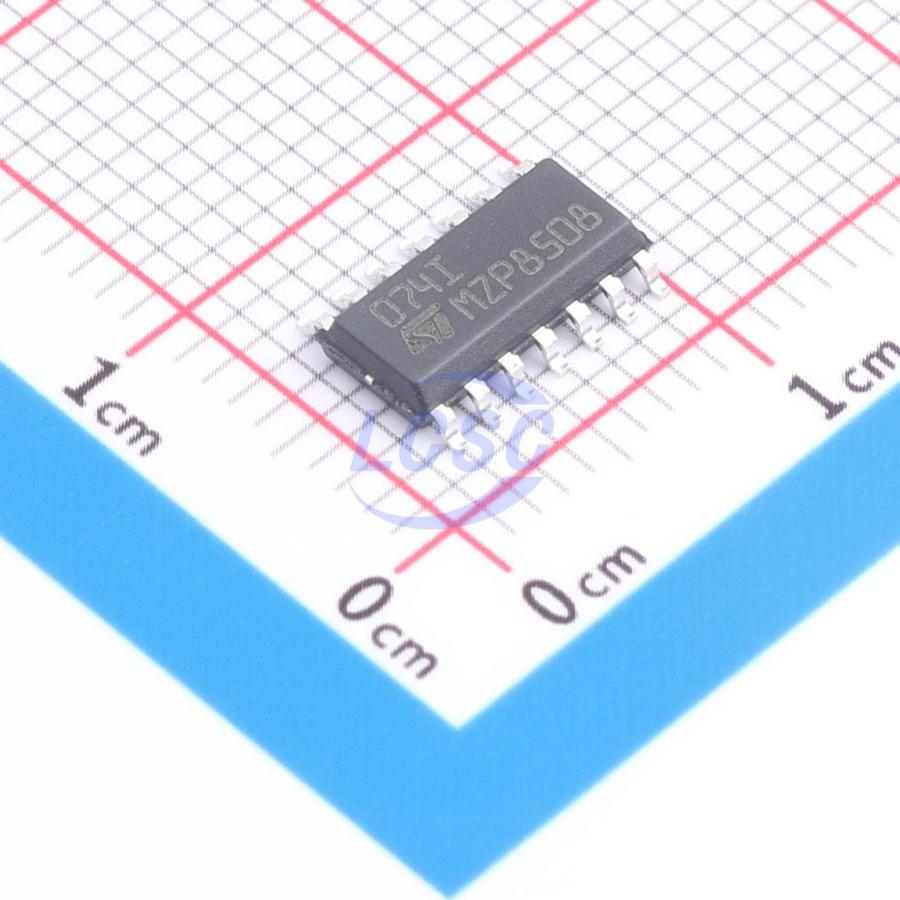

TL074ID
4 10mV 13V/us 200pA 86dB SO-14 Instrumentation, Op Amps, Buffer Amps
SO-14RoHSActive
JFET input, low input bias current
- Manufacturer
- ST
- Manufacturer part #
- TL074ID
- Store part #
- C5268498
- Package / case
- SO-14
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,892 in stock
#C5268498
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.14 | ₹67.14 |
| 10+ | ₹52.59 | ₹525.90 |
| 50+ | ₹46.28 | ₹2,314.00 |
| 100+ | ₹38.25 | ₹3,825.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹32.81 | ₹32,810.00 |
1 × ₹67.14
₹67.14
excl. GST
₹79.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL074ID
₹67.14 for 1 + GST
Specifications
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 10mV
- Slew Rate
- 13V/us
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 200pA
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Features
- Built-in compensation
- Input Voltage Noise Density
- 15nV/√Hz@1kHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
The TL074, TL074A, and TL074B are high-speed JFET input single operational amplifiers. Each of these JFET input operational amplifiers incorporates well matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient.
Key features
- Wide common-mode (up to V_CC+) and differential voltage range
- Low input bias and offset current
- Low noise e_n = 15 nV/√Hz (typ)
- Output short-circuit protection
- High input impedance JFET input stage
- Low harmonic distortion: 0.01% (typical)
- Internal frequency compensation
- Latch up free operation
- High slew rate: 16 V/μs (typical)
