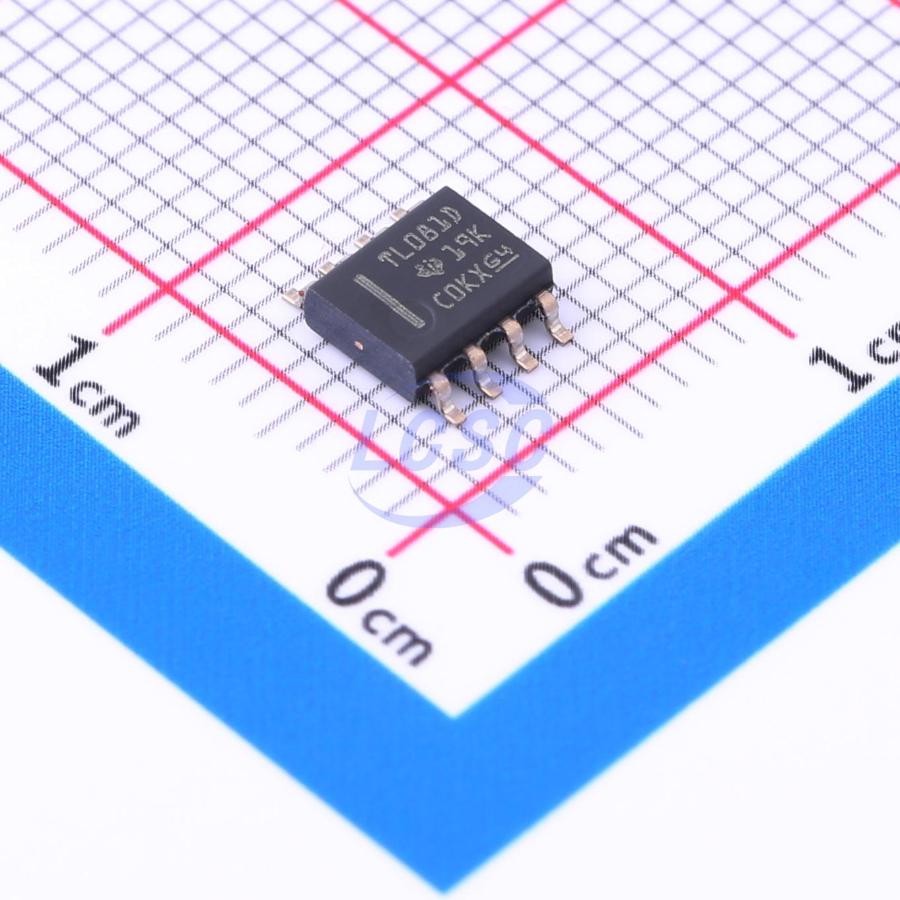

TL081HIDR

26mA 1 1mV 20V/us 1pA 105dB 960uA 5.25MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

FET-Input Operational Amplifiers

Manufacturer: TI
Manufacturer part #: TL081HIDR
Store part #: C4370484
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,755 in stock

#C4370484

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹22.28	₹111.40
50+	₹17.49	₹874.50
150+	₹15.15	₹2,272.50
500+	₹13.07	₹6,535.00
3,000+	₹12.50	₹37,500.00
6,000+	₹12.16	₹72,960.00

Quantity (min 5, multiples of 5)

5 × ₹22.28

₹111.40

excl. GST

₹131.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TL081HIDR

₹111.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 26mA
Number of Channels: 1
Vos - Input Offset Voltage: 1mV
Slew Rate: 20V/us
Input Offset Current(Ios): 0.5pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 105dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 960uA
Gain Bandwidth Product: 5.25MHz
Features: Short-Circuit Protection;EMI filtering/RF suppression
Input Voltage Noise Density: 37nV/√Hz@1kHz
Dual Supply: -20V~-2.25V;2.25V~20V
Single Supply: 4.5V~40V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.27 g

Overview

The TL08xH (TL081H, TL082H, and TL084H) family of devices are the next-generation versions of the industry-standard TL08x (TL081, TL082, and TL084) devices. These devices provide outstanding value for cost-sensitive applications, with features including low offset (1 mV, typical), high slew rate (20 V/μs), and common-mode input to the positive supply. High ESD (1.5 kV, HBM), integrated EMI and RF filters, and operation across the full -40°C to 125°C enable the TL08xH devices to be used in the most rugged and demanding applications.

Applications

Solar energy: string and central inverter
Motor drives: AC and servo drive control and power stage modules
Single phase online UPS
Three phase UPS
Pro audio mixers
Battery test equipment

Key features

High slew rate: 20 V/μs (TL08xH, typ)
Low offset voltage: 1 mV (TL08xH, typ)
Low offset voltage drift: 2 μV/°C
Low power consumption: 940 μA/ch (TL08xH, typ)
Wide common - mode and differential voltage ranges. Common - mode input voltage range includes VCC+
Low input bias and offset currents
Low noise: Vn = 18 nV/√Hz (typ) at f = 1 kHz
Output short - circuit protection
Low total harmonic distortion: 0.003% (typ)
Wide supply voltage: ±2.25 V to ±20 V, 4.5 V to 40 V
