TIDatasheet (PDF)

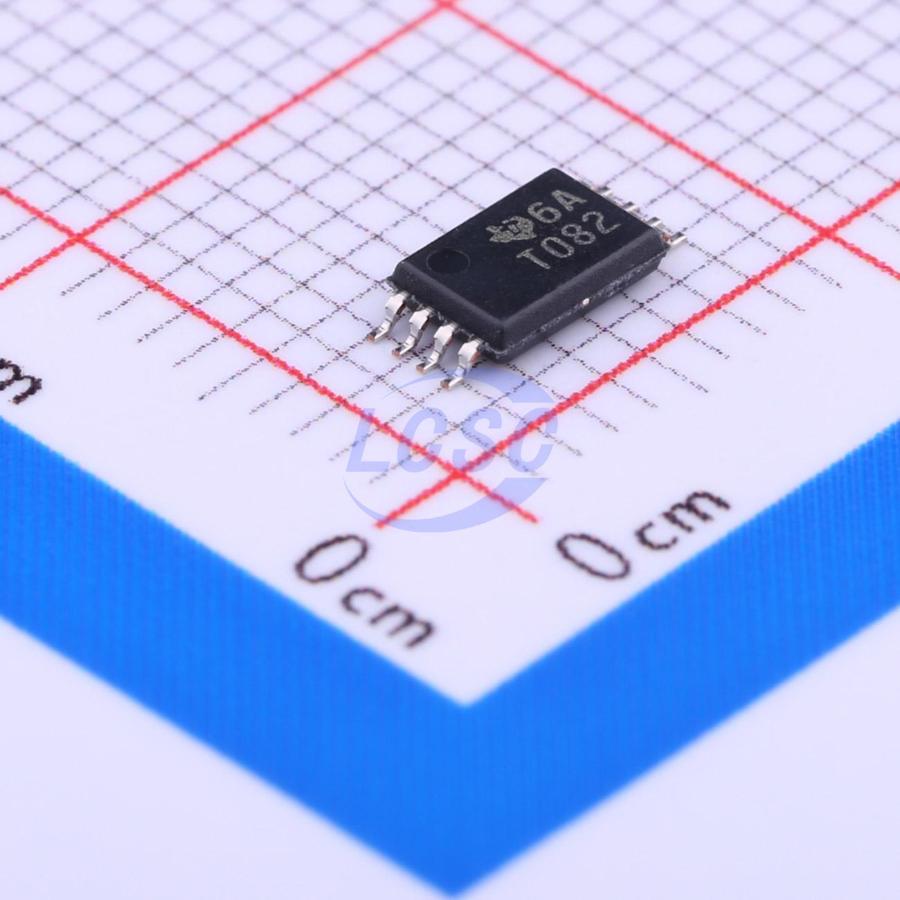

TL082CPWR
2 3mV 13V/us 86dB 30pA 1.4mA 3MHz TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
TSSOP-8ROHS3 CompliantActive
JFET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TL082CPWR
- Store part #
- C85346
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C85346
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.15 | ₹200.75 |
| 50+ | ₹31.51 | ₹1,575.50 |
| 150+ | ₹27.31 | ₹4,096.50 |
| 500+ | ₹23.55 | ₹11,775.00 |
| 2,000+ | ₹22.52 | ₹45,040.00 |
| 4,000+ | ₹21.90 | ₹87,600.00 |
5 × ₹40.15
₹200.75
excl. GST
₹236.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TL082CPWR
₹200.75 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 86dB
- Ib - Input Bias Current
- 30pA
- Input Offset Voltage Drift(Vos TC)
- 18uV/℃
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection;Latch-up suppression
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The TL08xx JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient.
Applications
- Tablets
- White goods
- Personal electronics
- Computers
Key features
- Low Power Consumption: 1.4 mA/ch Typical
- Wide Common-Mode and Differential Voltage Ranges
- Low Input Bias Current: 30 pA Typical
- Low Input Offset Current: 5 pA Typical
- Output Short-Circuit Protection
- Low Total Harmonic Distortion: 0.003% Typical
- High Input Impedance: JFET Input Stage
- Latch-Up-Free Operation
- High Slew Rate: 13 V/μs Typical
- Common-Mode Input Voltage Range Includes VCC+
