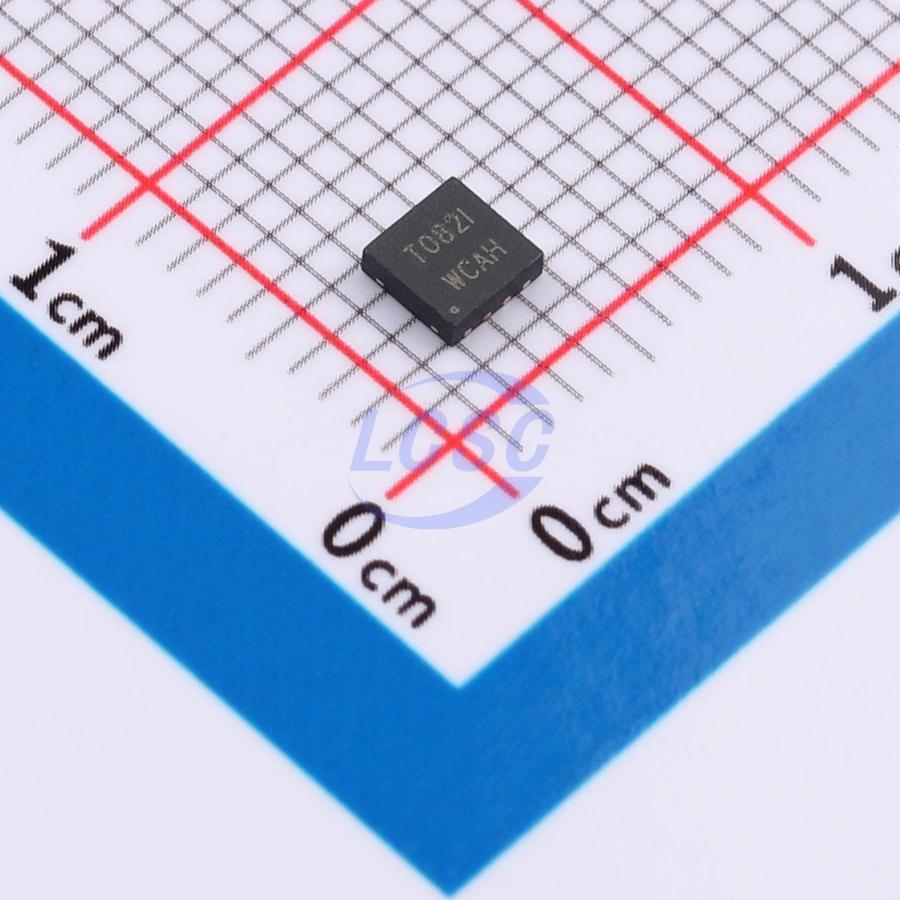

TL082IDQ3/TR-HG
2 3mV 13V/us 85dB 2.5nA 3MHz 1.4mA DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps
DFN-8(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL082IDQ3/TR-HG
- Store part #
- C53200129
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C53200129
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.94 | ₹134.70 |
| 50+ | ₹20.98 | ₹1,049.00 |
| 150+ | ₹18.44 | ₹2,766.00 |
| 500+ | ₹15.25 | ₹7,625.00 |
| 2,500+ | ₹13.84 | ₹34,600.00 |
| 5,000+ | ₹12.99 | ₹64,950.00 |
5 × ₹26.94
₹134.70
excl. GST
₹158.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TL082IDQ3/TR-HG
₹134.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 2.5nA
- Gain Bandwidth Product
- 3MHz
- Quiescent Current
- 1.4mA
- Features
- Short-Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.141 g
Overview
The TL082 is a high-speed J-FET input dual operational amplifier consisting of high-voltage J-FETs and bipolar transistors. The device features a high slew rate, low input bias current and offset current, and a very low temperature coefficient of offset voltage. The operating temperature range is 0℃ to 70℃ for the TL082C and -40℃ to -85℃ for the TL082I. The TL082 is available in DIP-8, SOP-8, MSOP-8, and DFN-8 packages.
Key features
- Low power consumption
- Wide common-mode and differential input voltage range
- Low input bias and offset current
- Output short-circuit protection
- High input impedance
- High slew rate
- High gain-bandwidth product, up to 4MHz
