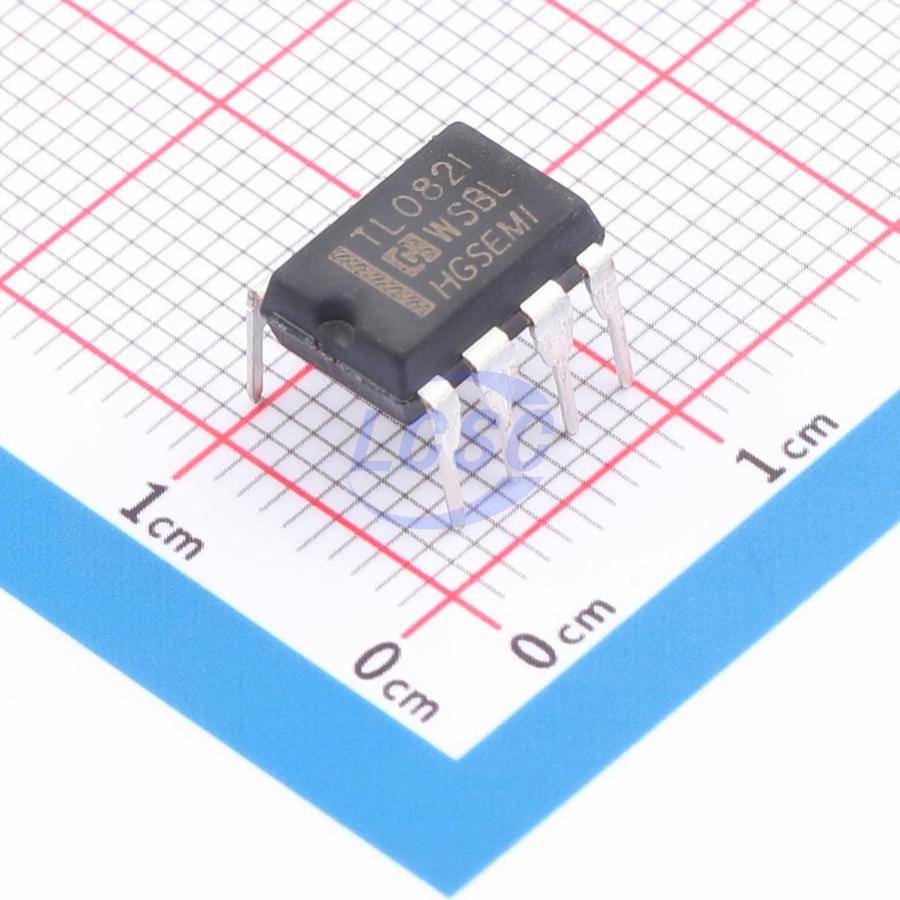

TL082IN
2 3mV 13V/us 2.5nA 85dB 1.4mA 3MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
General-purpose dual operational amplifier with J-FET input
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL082IN
- Store part #
- C46552325
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,680 in stock
#C46552325
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.94 | ₹124.70 |
| 50+ | ₹21.78 | ₹1,089.00 |
| 150+ | ₹20.43 | ₹3,064.50 |
| 500+ | ₹18.73 | ₹9,365.00 |
| 2,000+ | ₹17.98 | ₹35,960.00 |
| 4,000+ | ₹17.53 | ₹70,120.00 |
5 × ₹24.94
₹124.70
excl. GST
₹147.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
TL082IN
₹124.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 13V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 2.5nA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Quiescent Current
- 1.4mA
- Gain Bandwidth Product
- 3MHz
- Features
- Short-Circuit Protection
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The TL082 is a high-speed dual op-amp with JFET inputs, constructed using high-voltage JFETs and bipolar transistors. This device features high slew rate, low input bias current and offset current, and an ultra-low temperature coefficient of offset voltage. The operating temperature range is 0℃ to 70℃ for the TL082C and -40℃ to 85℃ for the TL082I. The TL082 is available in DIP-8, SOP-8, and MSOP-8 packages.
Key features
- Low power consumption
- Wide common-mode and differential-mode input voltage range
- Low input bias and offset current
- Output short-circuit current protection
- High input impedance
- High slew rate
- High gain-bandwidth product, up to 4MHz
