JSCJDatasheet (PDF)

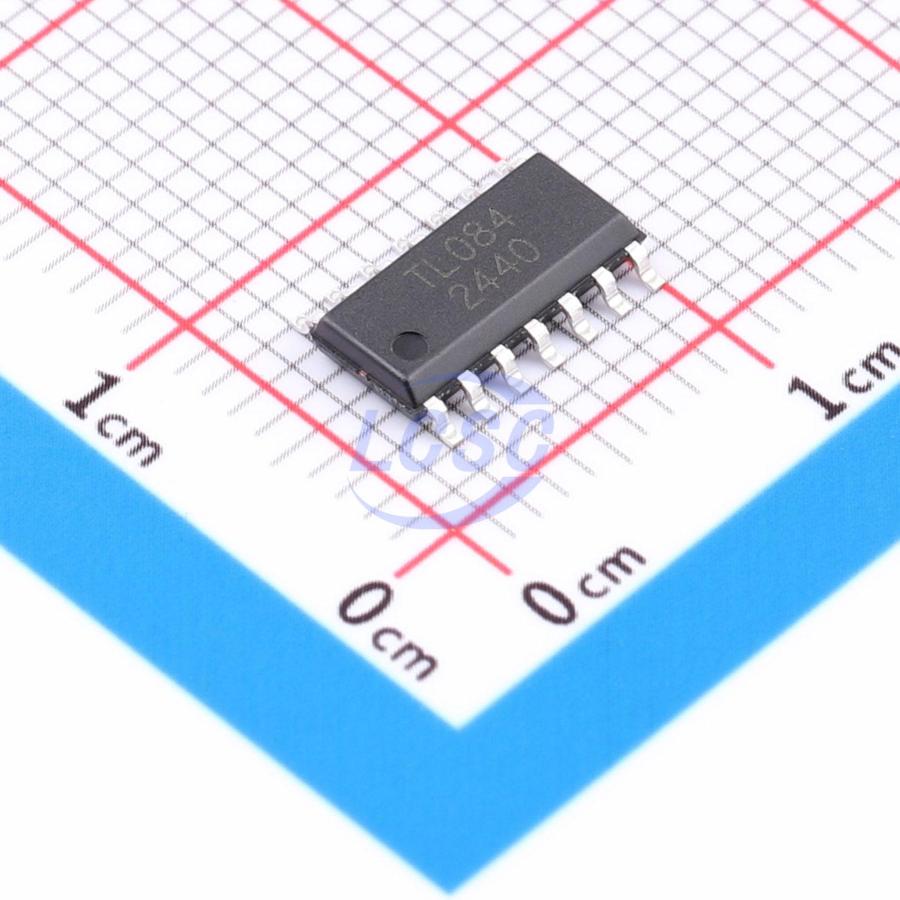

TL084
40mA 4 3mV 16V/us 75dB 20nA 1.5mA 4MHz SOP-14 Instrumentation, Op Amps, Buffer Amps
SOP-14RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- TL084
- Store part #
- C51886695
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,385 in stock
#C51886695
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.54 | ₹197.70 |
| 50+ | ₹31.21 | ₹1,560.50 |
| 150+ | ₹27.64 | ₹4,146.00 |
| 500+ | ₹23.19 | ₹11,595.00 |
| 2,500+ | ₹21.21 | ₹53,025.00 |
| 5,000+ | ₹20.00 | ₹1,00,000.00 |
5 × ₹39.54
₹197.70
excl. GST
₹233.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL084
₹197.70 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 16V/us
- Input Offset Current(Ios)
- 4nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 20nA
- Quiescent Current
- 1.5mA
- Gain Bandwidth Product
- 4MHz
- Features
- Short-Circuit Protection;Built-in compensation
- Input Voltage Noise Density
- 18nV/√Hz@1kHz
- Dual Supply
- -15V~-5V;5V~15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.392 g
Overview
The TL084 is an industry-standard quad JFET-input operational amplifier. It integrates well-matched high-voltage JFETs and bipolar transistors in a single monolithic IC, featuring high slew rate, low input bias and offset currents, and low offset voltage temperature coefficient.
Applications
- General-purpose amplifier
- Active filter
- Data acquisition
- Industrial/process control
- Input buffer
- Integrator
- Power control and monitoring
- Sample-and-hold circuit
Key features
- Dual supply voltage range: ±5V to ±15V
- Quad independent op-amps
- Quiescent current: 1.4mA per channel
- Wide input common-mode and differential voltage range
- Low input offset voltage: 3mV (typical)
- Low input bias and offset current
- High input impedance
- Output short-circuit current protection
- High slew rate: 16 V/μs
- Internal frequency compensation
