TECH PUBLICDatasheet (PDF)

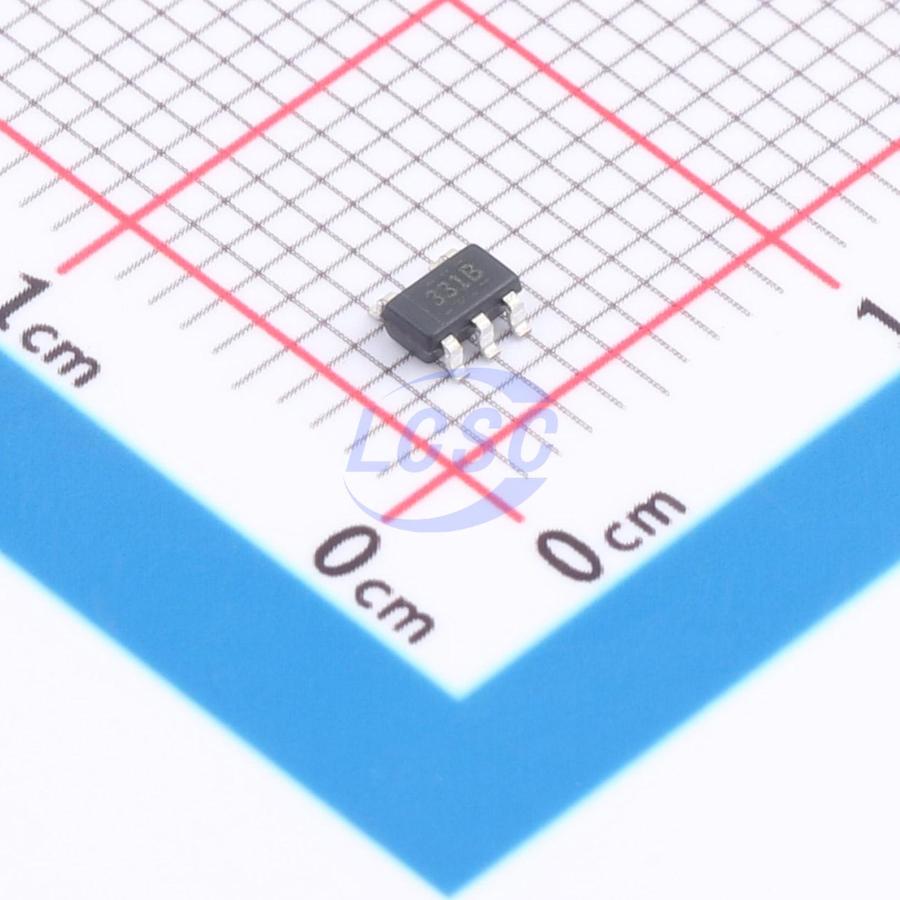

TL331BIDBVR-TP
2mV 25nA 1 SOT-23-5 Linear Comparators
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL331BIDBVR-TP
- Store part #
- C53100566
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,415 in stock
#C53100566
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.45 | ₹67.25 |
| 50+ | ₹10.60 | ₹530.00 |
| 150+ | ₹9.17 | ₹1,375.50 |
| 500+ | ₹8.10 | ₹4,050.00 |
| 3,000+ | ₹7.24 | ₹21,720.00 |
| 6,000+ | ₹6.80 | ₹40,800.00 |
5 × ₹13.45
₹67.25
excl. GST
₹79.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL331BIDBVR-TP
₹67.25 for 5 + GST
Specifications
- Dual Supply
- -18V~-1V;1V~18V
- Vos - Input Offset Voltage
- 2mV
- Quiescent Current
- 400uA
- Ib - Input Bias Current
- 25nA
- Output Mode
- DTL;ECL;TTL;MOS;CMOS
- Number of Channels
- 1
- Input Offset Current(Ios)
- 50nA
- Response Time (tr)
- 1.3us
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
This device is a single-precision voltage comparator capable of operating from either a single or dual supply. With specifications as low as 2.0 mV, the device offers excellent ground-level input offset voltage selection capability in single-supply operation, making it suitable for numerous applications in consumer electronics, automotive, and industrial electronics. It is designed to allow a common-mode range.
Applications
- Battery chargers
- Cordless telephones
- Switching power supplies
Key features
- Output voltage compatible with DTL, ECL, TTL, MOS, and CMOS logic levels
- Low input bias current: 25nA
- Low input offset current: ±0.5nA
- Low input offset voltage: ±2mV (typical)
- Input common-mode range extends to ground
- Differential input voltage range equal to supply voltage
- Ultra-low supply current consumption (0.4mA), independent of supply voltage
- Wide single-supply range: 2V~36V
- Dual-supply range: ±1V to ±18V
