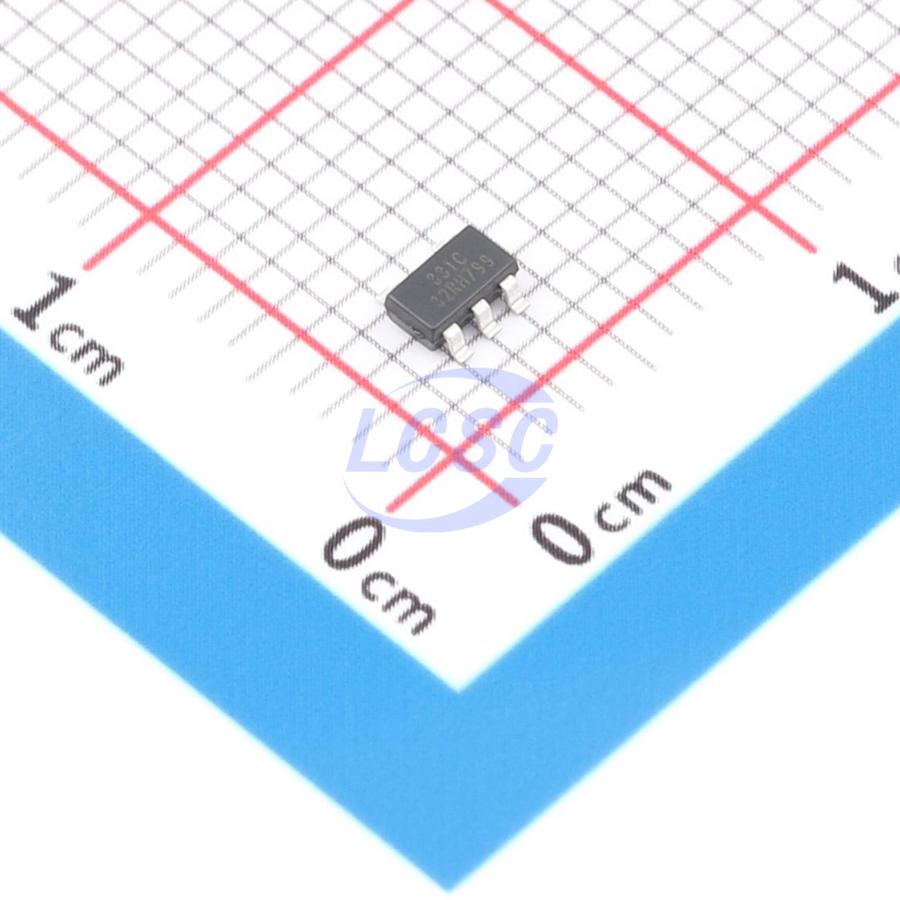

TL331IDBVR-MS
Rail-to-rail input 2mV 1nA 1 SOT-23-5 Linear Comparators
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TL331IDBVR-MS
- Store part #
- C30200457
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,745 in stock
#C30200457
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.72 | ₹83.60 |
| 50+ | ₹13.28 | ₹664.00 |
| 150+ | ₹11.56 | ₹1,734.00 |
| 500+ | ₹10.28 | ₹5,140.00 |
| 2,500+ | ₹9.25 | ₹23,125.00 |
| 5,000+ | ₹8.73 | ₹43,650.00 |
5 × ₹16.72
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL331IDBVR-MS
₹83.60 for 5 + GST
Specifications
- Rail to Rail
- Rail-to-rail input
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 1nA
- Quiescent Current
- 75uA
- Output Mode
- CMOS;TTL
- Number of Channels
- 1
- Propagation Delay Time
- 485ns
- Operating Temperature
- -40℃~+125℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
TL331IDBVR-MS is a voltage comparator for ICs. It offers lower offset voltage, higher supply voltage capability, lower supply current, lower propagation delay, wider temperature range, and higher ESD performance. The device supports both single-supply and dual-supply operation. For dual-supply operation, the supply voltage range is ±1.5V ~ ±16V, with the supply voltage at least 1.5V above the input common-mode voltage. The output is compatible with TTL and CMOS logic levels, and leakage current is unaffected by supply voltage. Outputs can be connected with other open-drain outputs to implement a wired-AND function. TL331IDBVR-MS comes in a green SOT23-5 package with an operating temperature range of -25°C ~ +85°C.
Applications
- Hysteresis comparator
- Robotic floor scrubber
- Single-phase UPS
- Server power supply
- Cordless power tools
Key features
- Wide supply voltage range: 3V ~ 32V
- Low input offset: 2mV (typical)
- Low quiescent current: 75μA at Vs=5V
- Low input bias current: 100nA
- Input common-mode voltage range includes ground
- Open-drain output
- Fast response time
- Compact package: SOT23-5
