TECH PUBLICDatasheet (PDF)

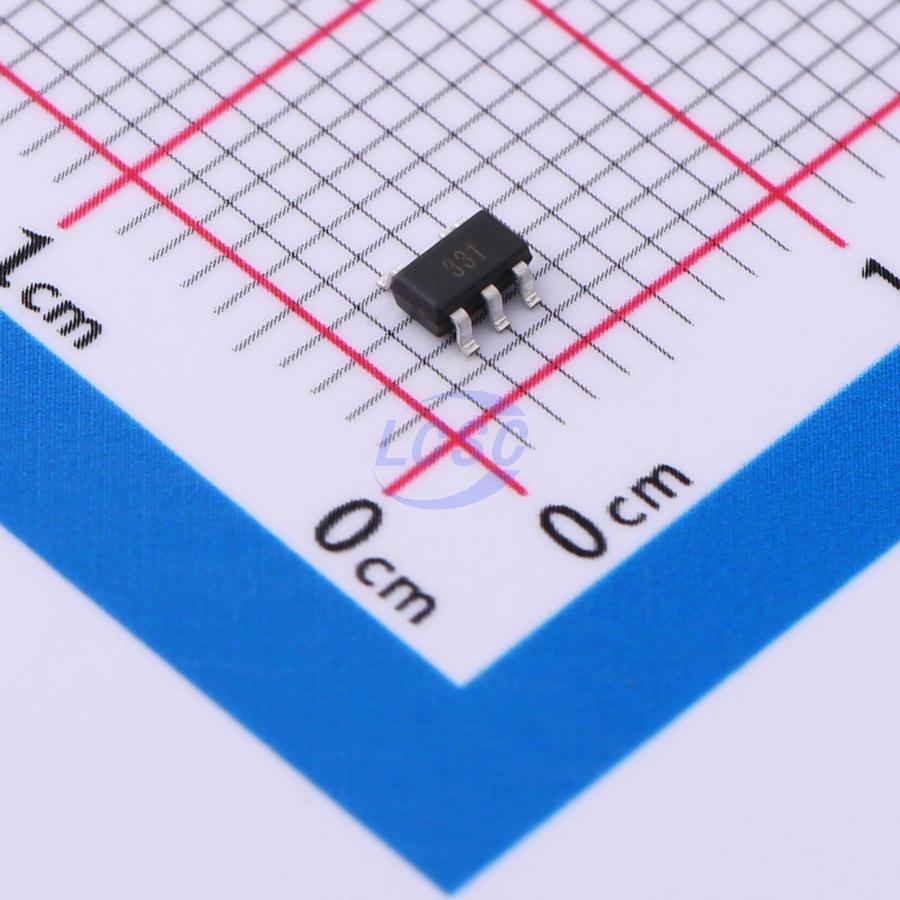

TL331IDBVR-TP
2mV 25nA 1 SOT23-5 Linear Comparators
SOT23-5RoHSActive
Single Differential Comparator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TL331IDBVR-TP
- Store part #
- C5310980
- Package / case
- SOT23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,510 in stock
#C5310980
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.70 | ₹58.50 |
| 50+ | ₹10.37 | ₹518.50 |
| 150+ | ₹9.72 | ₹1,458.00 |
| 500+ | ₹9.22 | ₹4,610.00 |
| 3,000+ | ₹8.11 | ₹24,330.00 |
| 6,000+ | ₹7.91 | ₹47,460.00 |
5 × ₹11.70
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TL331IDBVR-TP
₹58.50 for 5 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Vos - Input Offset Voltage
- 2mV
- Ib - Input Bias Current
- 25nA
- Quiescent Current
- 400uA
- Output Mode
- TTL;CMOS;DTL;ECL;MOS
- Number of Channels
- 1
- Propagation Delay Time
- 1.3us
- Input Offset Current(Ios)
- 50nA
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The TL331 is single precision voltage comparators capable of single-supply or split-supply operation. The specifications as low as 2.0 mV make this device an excellent ground level with single-supply operation. Input offset-voltage selection for many applications in consumer automotive, and It is designed to permit a common mode range-to-industrial electronics.
Applications
- Battery Charger
- Cordless Telephone
- Switching Power Supply
Key features
- Output voltage compatible with DTL, ECL, TTL, MOS and CMos Logic levels
- Low input bias current 25nA
- Low input offset current ±0.5nA
- Low input offset voltage ±2mV (typ)
- Input common mode range to ground level
- Differential input voltage range equal to power supply voltage
- Very low supply current drain (0.4mA) independent of supply voltage
- Wide single-supply range 2V~36V
- Split-supply range ±1V to ±18V
