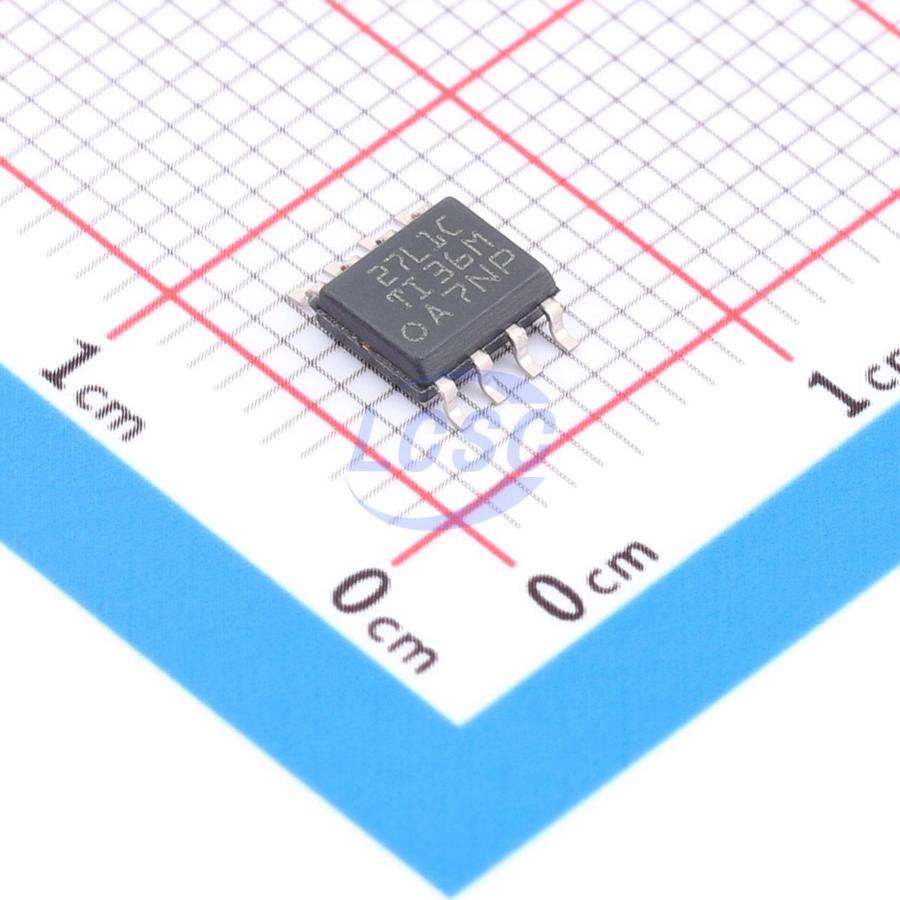

TLC27L1CDR

30mA 1 50V/ms 97dB 0.7pA 17uA 110kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TLC27L1CDR
Store part #: C2878330
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C2878330

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹300.36	₹300.36
10+	₹292.63	₹2,926.30
30+	₹287.50	₹8,625.00
100+	₹282.35	₹28,235.00

Quantity (min 1)

1 × ₹300.36

₹300.36

excl. GST

₹354.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLC27L1CDR

₹300.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 1
Slew Rate: 50V/ms
Input Offset Current(Ios): 60pA
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 97dB
Ib - Input Bias Current: 0.7pA
Input Offset Voltage Drift(Vos TC): 1.1uV/℃
Quiescent Current: 17uA
Gain Bandwidth Product: 110kHz
Features: ESD protection
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.43 g
