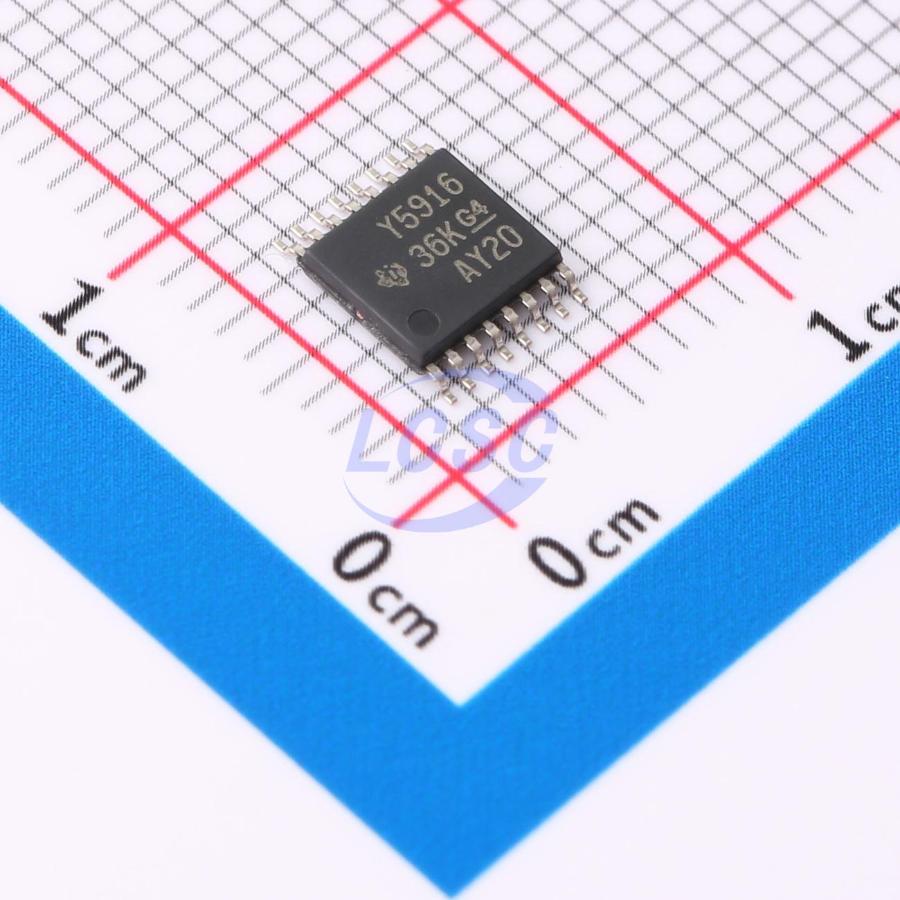

TLC5916IPWR

The TLC591x Constant-Current LED Sink Drivers are designed to work alone or cascaded. Since each output is independently controlled, they can be programmed to be on or off by the user. The high LED voltage (VLED) allows for the use of a single LED per output or multiple LEDs on a single string. With independently controlled outputs supplied with constant current, the LEDs can be combined in parallel to create higher currents on a single string. The constant sink current for all channels is set through a single external resistor. This allows different LED drivers in the same application to sink various currents which provides optional implementation of multi-color LEDs. An additional advantage of the independent outputs is the ability to leave unused channels floating. The flexibility of the TLC591x LED drivers is ideal for applications such as (but not limited to): 7-segment displays, scrolling single color displays, gaming machines, white goods, video billboards and video panels.

Applications

• General LED Lighting Applications
• LED Display Systems
• LED Signage
• Automotive LED Lighting
• White Goods
• Gaming Machines/Entertainment

Key features

• Eight Constant-Current Output Channels
• Output Current Adjusted Through Single External Resistor
• Constant Output Current Range: 3-mA to 120-mA per Channel
• Constant Output Current Invariant to Load Voltage Change
• Open Load, Short Load and Overtemperature Detection
• 256-Step Programmable Global Current Gain
• Excellent Output Current Accuracy:
• Between Channels: <±3% (Maximum)
• Between ICs: <±6% (Maximum)
• Fast Response of Output Current
• 30-MHz Clock Frequency
• Schmitt-Trigger Input
• 3.3-V or 5-V Supply Voltage
• Maximum LED Voltage 20-V
• Thermal Shutdown for Overtemperature Protection
