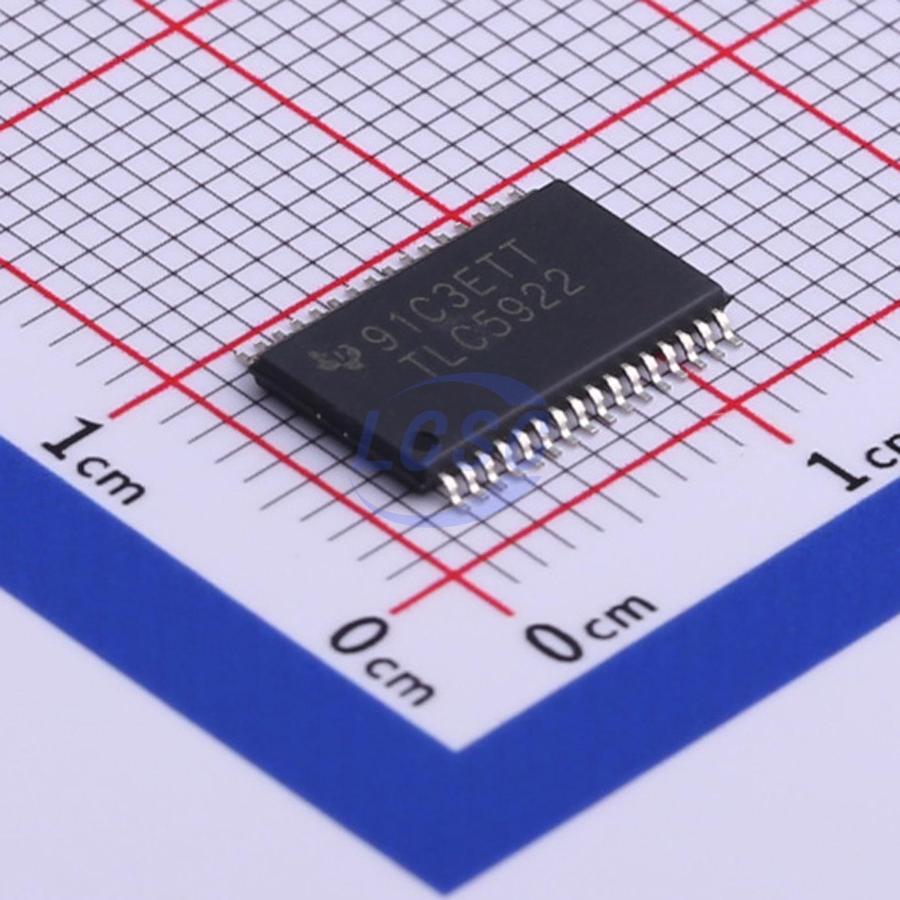

TLC5922DAPR
80mA 30MHz 16 17V 3V~5.5V HTSSOP-32-EP-6.1mm LED Drivers RoHS
- Manufacturer
- TI
- Manufacturer part #
- TLC5922DAPR
- Store part #
- C473348
- Package / case
- HTSSOP-32-EP-6.1mm
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,710 in stock
#C473348
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹272.75 | ₹272.75 |
| 10+ | ₹231.27 | ₹2,312.70 |
| 30+ | ₹205.21 | ₹6,156.30 |
| 100+ | ₹178.72 | ₹17,872.00 |
| 500+ | ₹166.55 | ₹83,275.00 |
| 1,000+ | ₹161.35 | ₹1,61,350.00 |
1 × ₹272.75
₹272.75
excl. GST
₹321.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLC5922DAPR
₹272.75 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Output Current
- 80mA
- Frequency - Switching
- 30MHz
- Number of Channels
- 16
- Output Voltage
- 17V
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.476 g
Overview
The TLC5922 is a 16-channel constant-current sink driver. Each channel has an On/Off state and a 128-step adjustable constant-current sink (dot correction). The dot correction adjusts the brightness variations between LED, LED channels, and other LED drivers. Both dot correction and On/Off state are accessible via a serial data interface. A single external resistor sets the maximum current of all 16 channels.
Applications
- Monocolor, Multicolor, Fullcolor LED Display
- Monocolor, Multicolor LED Signboard Display Backlighting
- Multicolor LED Lighting Applications
Key features
- 16 Channels
- Drive Capability: 0 to 80 mA (Constant-Current Sink)
- Constant Current Accuracy: ±1% (typical)
- Serial Data Interface, SPI Compatible
- Fast Switching Output: Tr/Tf = 10ns (typical)
- CMOS Level Input/Output
- 30 MHz Data Transfer Rate
- VCC = 3.0V to 5.5V
- Operating Temperature = -20°C to 85°C
- LED Supply Voltage up to 17 V
- 32-pin HTSSOP Package
