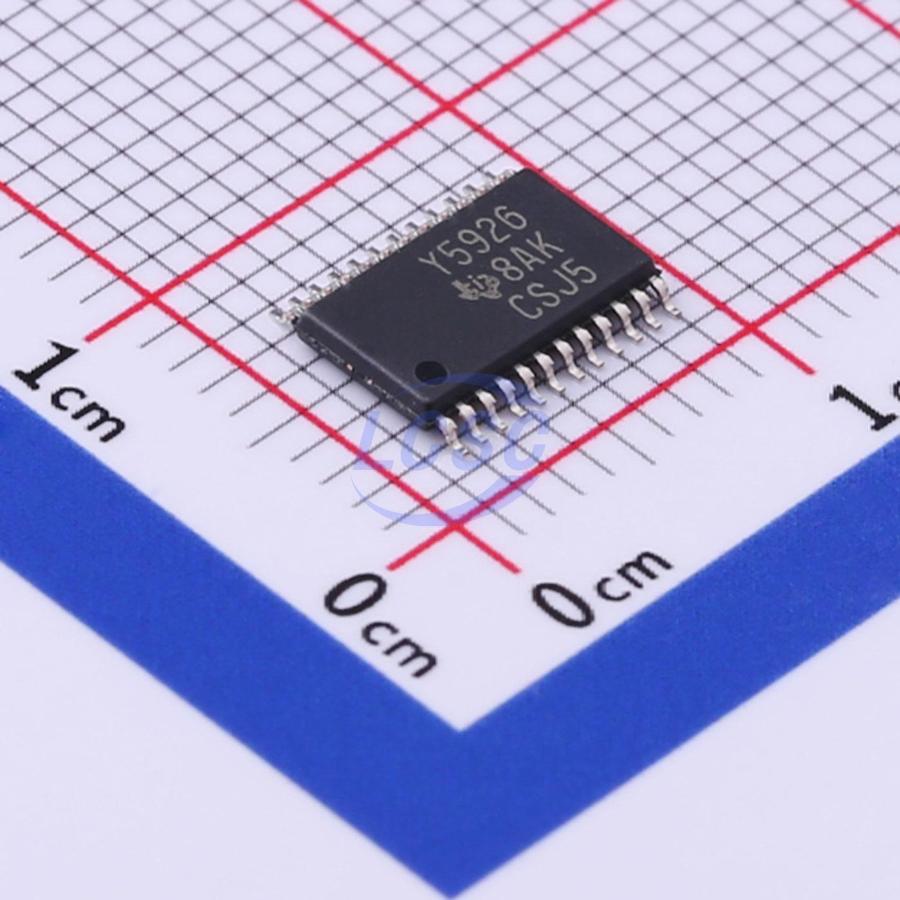

TLC5926IPWPR

The TLC592x is designed for LED displays and LED lighting applications with open-load, shorted-load, and over temperature detection, and constant-current control. The TLC592x contains a 16-bit shift register and data latches, which convert serial input data into parallel output format. At the TLC592x output stage, 16 regulated-current ports provide uniform and constant current for driving LEDs within a wide range of VF (forward voltage) variations. Used in systems designed for LED display applications (for example, LED panels), TLC592x provides great flexibility and device performance. Users can adjust the output current from 5 mA to 120 mA through an external resistor, Rext, which gives flexibility in controlling the light intensity of LEDs. The TLC592x is designed for up to 17 V at the output port. The high clock frequency, 30 MHz, also satisfies the system requirements of high-volume data transmission.

Applications

• General LED Lighting Applications
• LED Display Systems
• LED Signage
• Automotive LED Lighting
• White Goods

Key features

• 16 Constant-Current Output Channels
• Output Current Adjusted By External Resistor
• Constant Output Current Range: 5 mA to 120 mA
• Constant Output Current Invariant to Load Voltage Change
• Open-Load and Shorted-Load Detection
• 256-Step Programmable Global Current Gain
• Excellent Output Current Accuracy: Between Channels: <±6% (Max), 10 mA to 50 mA Between ICs: <±6% (Max), 10 mA to 50 mA
• 30-MHz Maximum Clock Frequency
• Schmitt-Trigger Input
• 3.3-V or 5-V Supply Voltage
• Thermal Shutdown for Overtemperature Protection
