TIDatasheet (PDF)

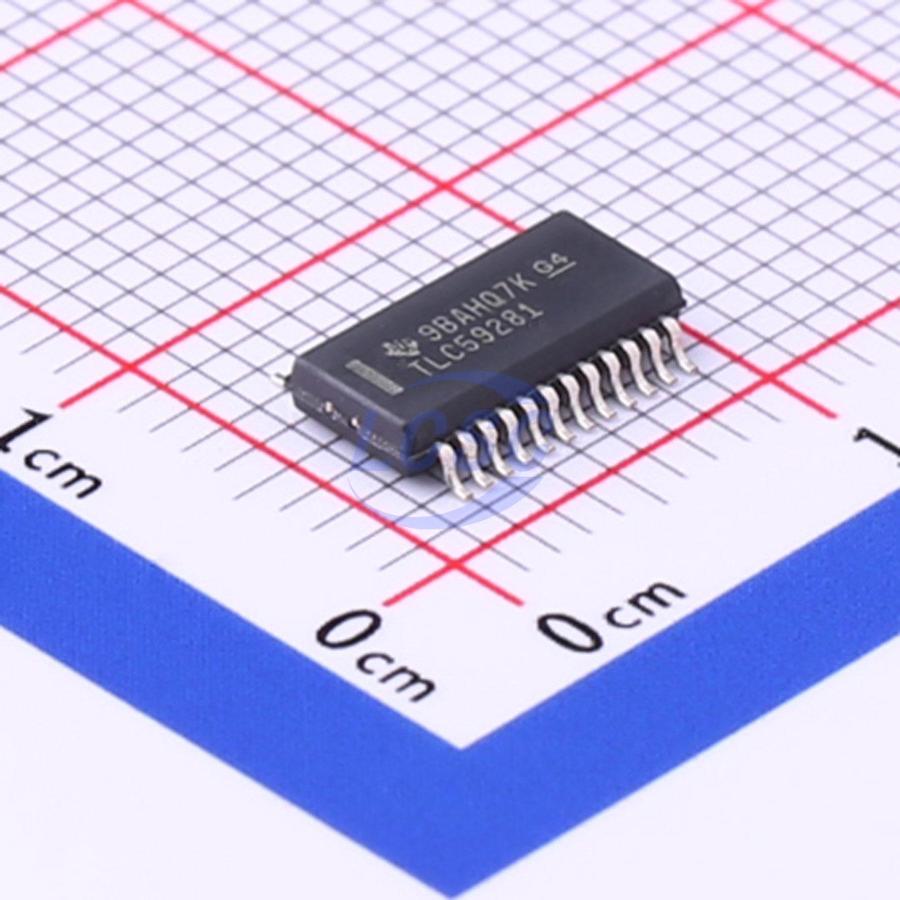

TLC59281DBQR
35mA 16 17V 3V~5.5V SSOP-24-150mil LED Drivers RoHS
SSOP-24-150milROHS3 CompliantActive
16-Channel, Constant-Current LED Driver
- Manufacturer
- TI
- Manufacturer part #
- TLC59281DBQR
- Store part #
- C575554
- Package / case
- SSOP-24-150mil
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,093 in stock
#C575554
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.21 | ₹91.21 |
| 10+ | ₹72.26 | ₹722.60 |
| 30+ | ₹62.91 | ₹1,887.30 |
| 100+ | ₹53.33 | ₹5,333.00 |
| 500+ | ₹47.67 | ₹23,835.00 |
| 1,000+ | ₹44.84 | ₹44,840.00 |
1 × ₹91.21
₹91.21
excl. GST
₹107.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLC59281DBQR
₹91.21 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 35mA
- Number of Channels
- 16
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 17V
- Topology
- Buck
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The TLC59281 is a 16-channel, constant-current sink LED driver. Each channel can be turned on/off by writing serial data to an internal register. The constant-current value of all 16 channels is set by a single external resistor.
Applications
- LED Video Displays
- Message Boards
- Illumination
Key features
- 16 Channels, Constant-Current Sink Output with On/Off Control
- 35-mA Capability (Constant-Current Sink)
- 10-ns High-Speed Constant-Current Switching Transient Time
- Low On-Time Error
- LED Power-Supply Voltage up to 17 V
- VCC = 3.0 V to 5.5 V
- Constant-Current Accuracy:
- Channel-to-Channel = ±1%
- Device-to-Device = ±1%
- CMOS Logic Level I/O
- 35-MHz Data Transfer Rate
- 20-ns BLANK Pulse Width
- Operating Temperature: -40°C to +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TLC59281DBQ#C1554303TI · SSOP-24-150mil | TI | SSOP-24-150mil | On request | ₹89.32 · 0 in stock | View | |
