TIDatasheet (PDF)

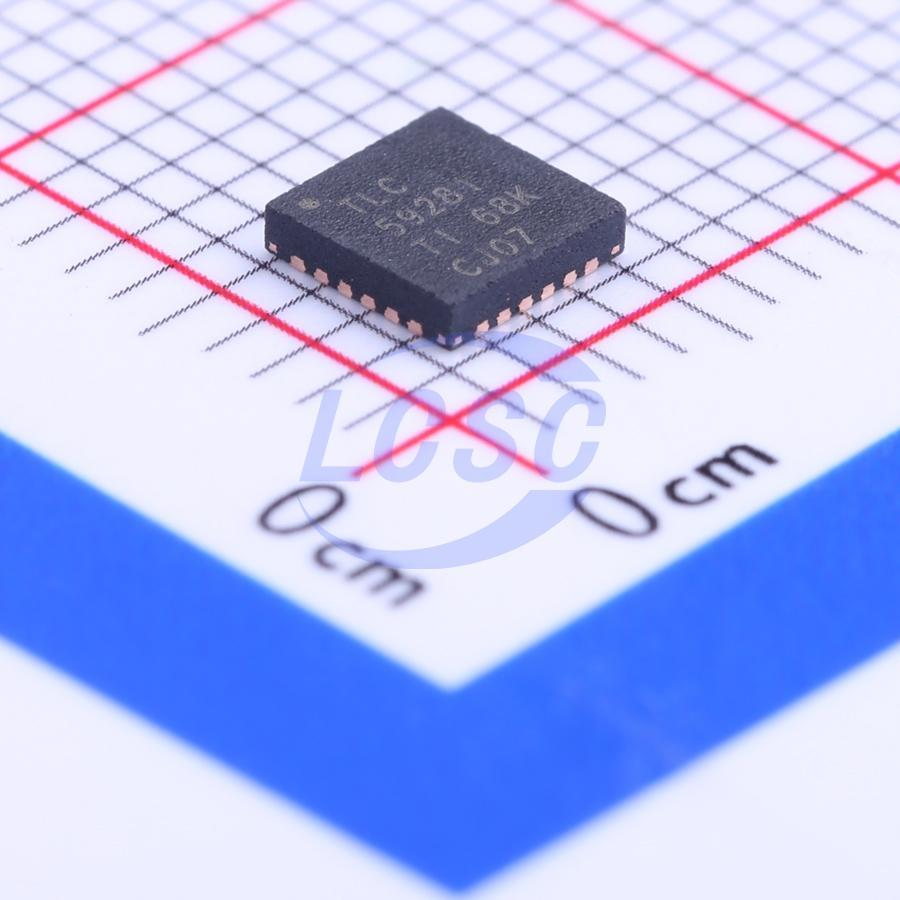

TLC59281RGER
35mA 35MHz 16 17V 3V~5.5V VQFN-24-EP(4x4) LED Drivers RoHS
VQFN-24-EP(4x4)ROHS3 CompliantActive
16-Channel, Constant-Current LED Driver
- Manufacturer
- TI
- Manufacturer part #
- TLC59281RGER
- Store part #
- C130033
- Package / case
- VQFN-24-EP(4x4)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
988 in stock
#C130033
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.41 | ₹94.41 |
| 10+ | ₹83.35 | ₹833.50 |
| 30+ | ₹77.92 | ₹2,337.60 |
| 100+ | ₹72.28 | ₹7,228.00 |
| 500+ | ₹69.02 | ₹34,510.00 |
| 1,000+ | ₹67.29 | ₹67,290.00 |
1 × ₹94.41
₹94.41
excl. GST
₹111.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLC59281RGER
₹94.41 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 35mA
- Frequency - Switching
- 35MHz
- Number of Channels
- 16
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 17V
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.44 g
Overview
The TLC59281 is a 16-channel, constant-current sink LED driver. Each channel can be turned on/off by writing serial data to an internal register. The constant-current value of all 16 channels is set by a single external resistor.
Applications
- LED Video Displays
- Message Boards
- Illumination
Key features
- 16 Channels, Constant-Current Sink Output with On/Off Control
- 35-mA Capability (Constant-Current Sink)
- 10-ns High-Speed Constant-Current Switching Transient Time
- Low On-Time Error
- LED Power-Supply Voltage up to 17 V
- VCC = 3.0 V to 5.5 V
- Constant-Current Accuracy:
- Channel-to-Channel = ±1%
- Device-to-Device = ±1%
- CMOS Logic Level I/O
- 35-MHz Data Transfer Rate
- 20-ns BLANK Pulse Width
- Operating Temperature: -40℃ to +85℃
