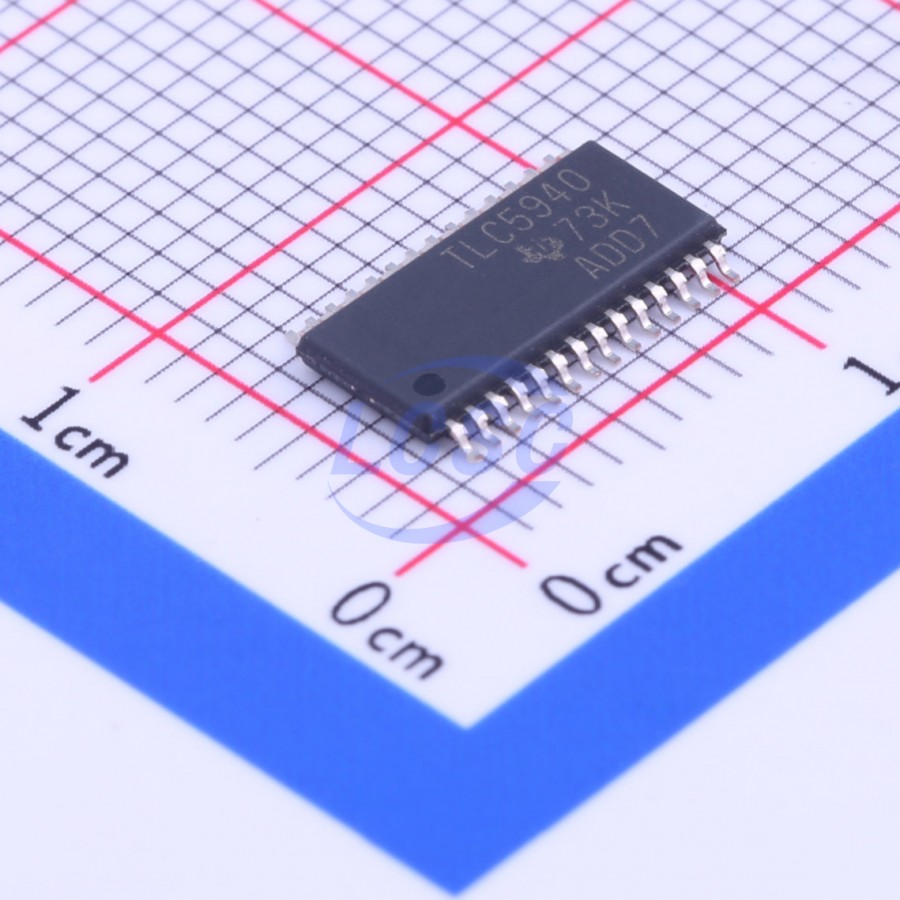

TLC5940PWPR
30MHz PWM 16 17V 120mA 3V~5.5V TSSOP-28-EP LED Drivers RoHS
16-Channel LED Driver With DOT Correction and Grayscale PWM Control
- Manufacturer
- TI
- Manufacturer part #
- TLC5940PWPR
- Store part #
- C181653
- Package / case
- TSSOP-28-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,920 in stock
#C181653
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹287.66 | ₹287.66 |
| 10+ | ₹267.79 | ₹2,677.90 |
| 30+ | ₹255.47 | ₹7,664.10 |
| 100+ | ₹242.73 | ₹24,273.00 |
| 500+ | ₹236.91 | ₹1,18,455.00 |
| 1,000+ | ₹234.53 | ₹2,34,530.00 |
1 × ₹287.66
₹287.66
excl. GST
₹339.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLC5940PWPR
₹287.66 for 1 + GST
Specifications
- Frequency - Switching
- 30MHz
- Dimming
- PWM
- Number of Channels
- 16
- Output Voltage
- 17V
- Output Current
- 120mA
- Operating Temperature
- -40℃~+85℃
- Features
- LED open-circuit protection;Over-Temperature Protection (OTP)
- Constant Current Accuracy
- 4%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The TLC5940 is a 16-channel, constant-current sink LED driver. Each channel has an individually adjustable 4096-step grayscale PWM brightness control and a 64-step, constant-current sink (dot correction). The dot correction adjusts the brightness variations between LED channels and other LED drivers. The dot correction data is stored in an integrated EEPROM. Both grayscale control and dot correction are accessible through a serial interface. A single external resistor sets the maximum current value of all 16 channels. The TLC5940 features two error information circuits. The LED open detection (LOD) indicates a broken or disconnected LED at an output terminal. The thermal error flag (TEF) indicates an overtemperature condition.
Applications
- Monocolor, Multicolor, Full-Color LED Displays
- LED Signboards
- Display Backlighting
- General, High-Current LED Drive
Key features
- 16 Channels
- 12 bit (4096 Steps) Grayscale PWM Control
- Dot Correction – 6 bit (64 Steps) – Storable in Integrated EEPROM
- Drive Capability (Constant-Current Sink): 0 mA to 60 mA (VCC < 3.6 V), 0 mA to 120 mA (VCC > 3.6 V)
- LED Power Supply Voltage up to 17 V
- VCC = 3 V to 5.5 V
- Serial Data Interface
- Controlled In-Rush Current
- 30 MHz Data Transfer Rate
- CMOS Level I/O
- Error Information: LOD: LED Open Detection, TEF: Thermal Error Flag
