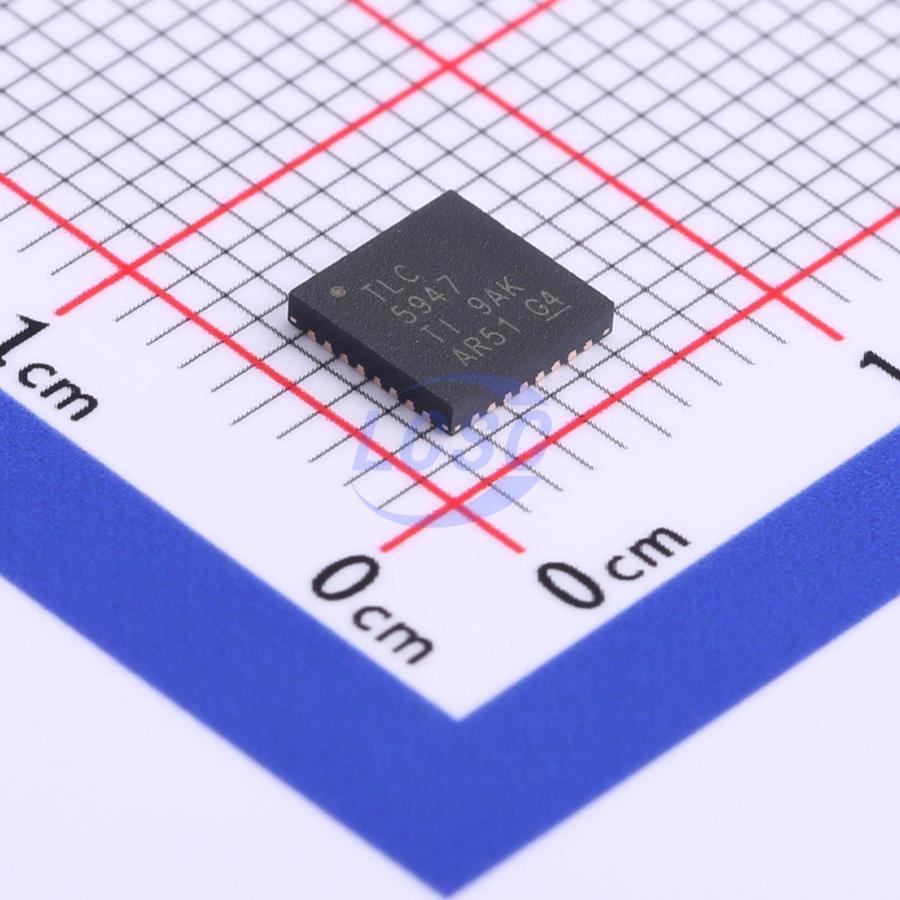

TLC5947RHBR
4MHz PWM 24 30mA 3V~5.5V VFQFN-32-EP(5x5) LED Drivers RoHS
24-Channel, 12-Bit PWM LED Driver With Internal Oscillator
- Manufacturer
- TI
- Manufacturer part #
- TLC5947RHBR
- Store part #
- C702083
- Package / case
- VFQFN-32-EP(5x5)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,693 in stock
#C702083
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹404.34 | ₹404.34 |
| 10+ | ₹345.40 | ₹3,454.00 |
| 30+ | ₹308.42 | ₹9,252.60 |
| 100+ | ₹270.58 | ₹27,058.00 |
| 500+ | ₹253.39 | ₹1,26,695.00 |
| 1,000+ | ₹246.00 | ₹2,46,000.00 |
1 × ₹404.34
₹404.34
excl. GST
₹477.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLC5947RHBR
₹404.34 for 1 + GST
Specifications
- Frequency - Switching
- 4MHz
- Dimming
- PWM
- Number of Channels
- 24
- Switch tube (built-in/external)
- Built-in
- Output Current
- 30mA
- Operating Temperature
- -40℃~+85℃
- Features
- Over-Temperature Protection (OTP);Built-in soft-start
- Constant Current Accuracy
- 2%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.119 g
Overview
The TLC5947 is a 24-channel, constant-current sink LED driver. Each channel is individually adjustable with 4096 pulse-width modulated (PWM) steps. PWM control is repeated automatically with the programmed grayscale (GS) data. GS data are written via a serial interface port. The current value of all 24 channels is set by a single external resistor. The TLC5947 has a thermal shutdown (TSD) function that turns off all output drivers during an overtemperature condition. All of the output drivers automatically restart when the temperature returns to normal conditions.
Applications
- Static LED Displays
- Message Boards
- Amusement Illumination
- TV Backlighting
Key features
- 24 Channels, Constant-Current Sink Output
- 30-mA Capability (Constant-Current Sink)
- 12-Bit (4096 Steps) PWM Grayscale Control
- LED Power-Supply Voltage Up to 30 V, VCC = 3.0 V to 5.5 V
- Constant-Current Accuracy: Channel-to-Channel = ±2% (Typical), Device-to-Device = ±2% (Typical)
- CMOS Logic Level I/O
- 30-MHz Data Transfer Rate (Standalone), 15-MHz Data Transfer Rate (Cascaded Devices, SCLK Duty = 50%)
- Shift Out Data Changes With Falling Edge to Avoid Data Shift Errors
- Auto Display Repeat
- 4-MHz Internal Oscillator
- Thermal Shutdown (TSD): Automatic Shutdown at OverTemperature Conditions, Restart Under Normal Temperature
- Noise Reduction: 4-Channel Grouped Delay to Prevent Inrush Current
- Operating Temperature: -40°C to 85°C
