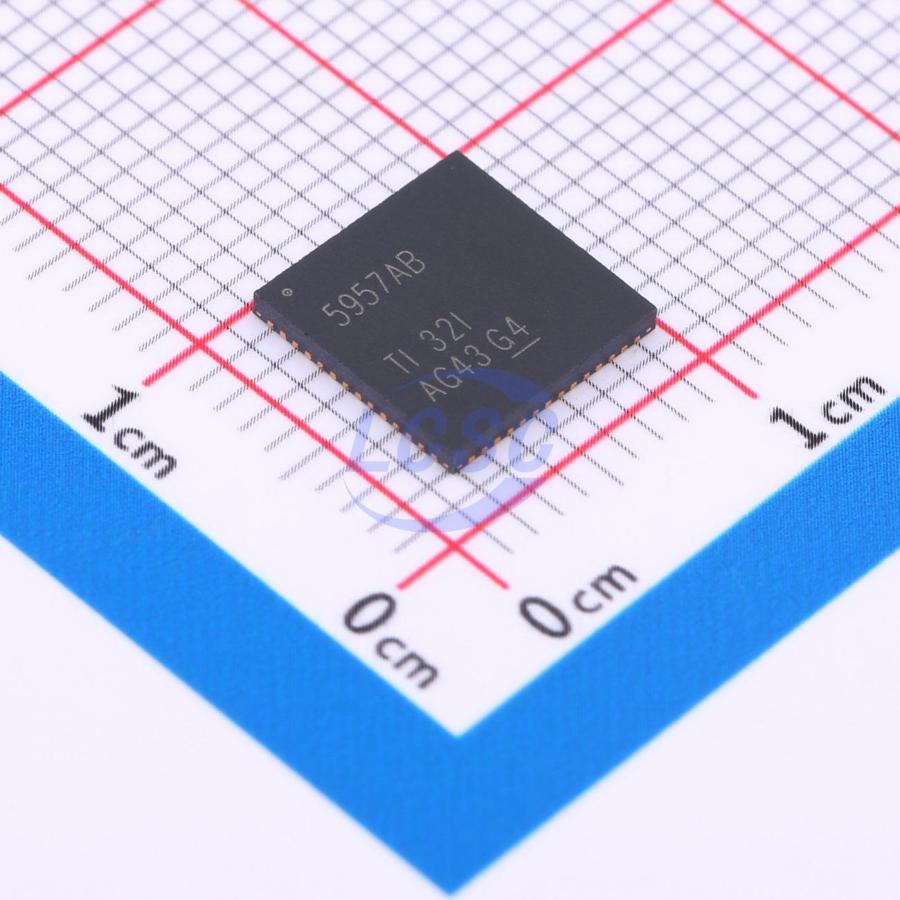

TLC5957RTQR
33MHz PWM 48 25mA 3V~5.5V HVQFN-56-EP(8x8) LED Drivers RoHS
48-channel, 16-bit ES-PWM LED driver with pre-charge FET, LED open-circuit detection, and Caterpillar elimination functions
- Manufacturer
- TI
- Manufacturer part #
- TLC5957RTQR
- Store part #
- C2679170
- Package / case
- HVQFN-56-EP(8x8)
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C2679170
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹374.59 | ₹374.59 |
| 10+ | ₹315.13 | ₹3,151.30 |
| 30+ | ₹277.80 | ₹8,334.00 |
| 100+ | ₹239.82 | ₹23,982.00 |
| 500+ | ₹222.67 | ₹1,11,335.00 |
| 1,000+ | ₹215.08 | ₹2,15,080.00 |
1 × ₹374.59
₹374.59
excl. GST
₹442.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLC5957RTQR
₹374.59 for 1 + GST
Specifications
- Frequency - Switching
- 33MHz
- Dimming
- PWM
- Number of Channels
- 48
- Switch tube (built-in/external)
- Built-in
- Output Current
- 25mA
- Operating Temperature
- -40℃~+85℃
- Features
- LED open-circuit protection;Over-Temperature Protection (OTP);Built-in soft-start
- Voltage - Input(DC)
- 3V~5.5V
- Constant Current Accuracy
- 3%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.75 g
Overview
The TLC5957 is a 48-channel constant-current sink driver. Each channel features individually adjustable 65,536-step pulse-width modulation (PWM) grayscale (GS) brightness control. The output channels are divided into three groups, each with a 512-step color brightness control (CC) function. CC can adjust the brightness between colors. The maximum current values of all 48 channels can be set through an 8-step global brightness control (BC) function. BC adjusts the brightness deviation between LED drivers. The GS, CC, and BC data can be accessed via a serial interface port. The TLC5957 has an error flag: LED open detection (LOD), which can be read via the serial interface port. Each constant-current output has a pre-charged field-effect transistor (FET), which can eliminate ghosting in multiplexed LED displays and improve display performance. In addition, the TLC5957 has an enhancement circuit to eliminate the caterpillar effect caused by LED open circuits. The TLC5957 has a poker data transmission mode; the GS data length can be configured from 9 bits to 16 bits, depending on the PWM bits in each sub-segment. The poker mode can significantly improve the visual refresh rate of multiplexed applications.
Applications
- LED signal boards with multiplexed systems
- Multiple daisy-chain TLC5957 typical application circuits
Key features
- 48 constant current sink output channels with maximum BC/CC data sink current: 1~20mA (VCC = 3.3V), 1~25mA (VCC = 5V)
- Global brightness control (BC): 3-bit (8 steps)
- Global color brightness control (CC) per color group: 9-bit (512 steps), three groups
- LED supply voltage up to 10V
- VCC = 3.0V to 5.5V
- Knee voltage at 10mA: Vout = 0.24V
- Constant current accuracy: channel-to-channel = ±1% (typ), ±3% (max); device-to-device = ±1% (typ), ±2% (max)
- Data transfer rate: 33MHz
- Grayscale control clock: 33MHz
- Pre-charge FET eliminates ghosting
- Enhanced circuit eliminates Caterpillar effect
- Selectable data bits and PWM bits (9-bit to 16-bit)
- Selectable conventional PWM and ES-PWM
- LED open detection (LOD)
- Thermal shutdown (TSD)
- Auto display repeat / auto data refresh
- Delayed switching prevents inrush current
- Operating temperature range: -40°C to +85°C
