TLC59711PWPR

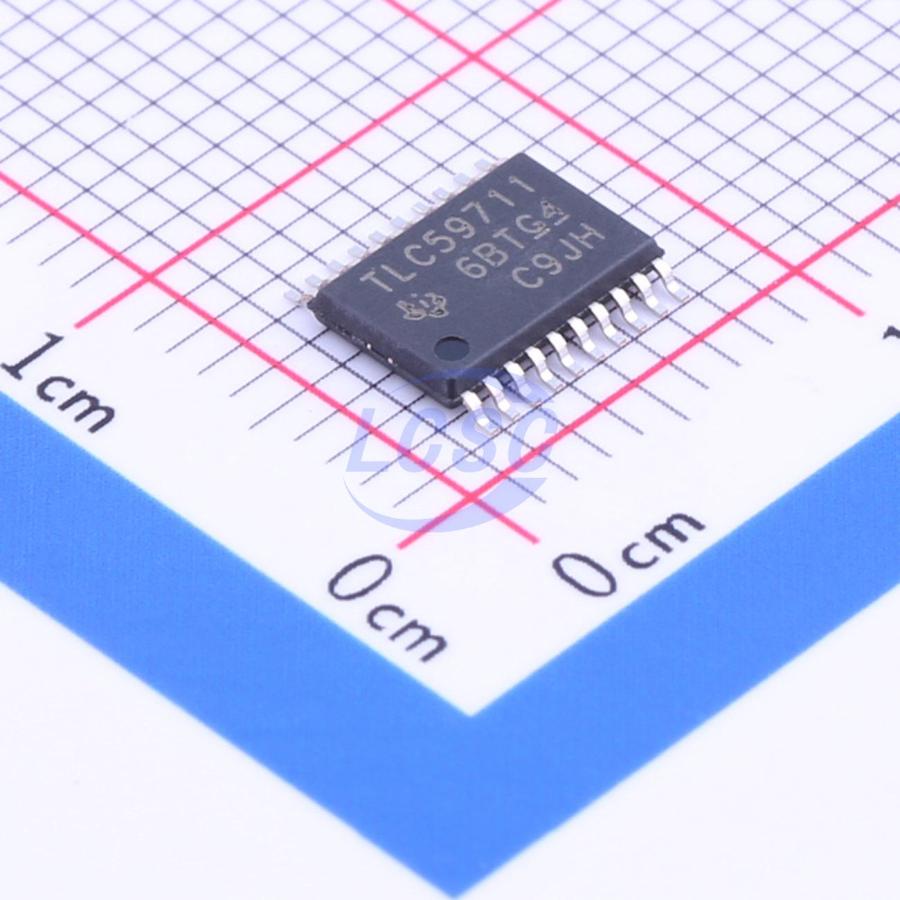

60mA 7MHz~12MHz PWM 12 3V~5.5V HTSSOP-20-EP LED Drivers RoHS
12-channel, 16-bit, enhanced spectral Pulse Width Modulation (PWM), Red-Green-Blue (RGB) LED driver
- Manufacturer
- TI
- Manufacturer part #
- TLC59711PWPR
- Store part #
- C116842
- Package / case
- HTSSOP-20-EP
- Category
- LED Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,597 in stock
#C116842
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹360.35 | ₹360.35 |
| 10+ | ₹318.51 | ₹3,185.10 |
| 30+ | ₹297.04 | ₹8,911.20 |
| 100+ | ₹268.42 | ₹26,842.00 |
| 500+ | ₹258.24 | ₹1,29,120.00 |
| 1,000+ | ₹253.90 | ₹2,53,900.00 |
1 × ₹360.35
₹360.35
excl. GST
₹425.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TLC59711PWPR
₹360.35 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Output Current
- 60mA
- Frequency - Switching
- 7MHz~12MHz
- Dimming
- PWM
- Number of Channels
- 12
- Features
- Over-Temperature Protection (OTP)
- Constant Current Accuracy
- 1%
- Voltage - Input(DC)
- 3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.208 g
Overview
The TLC59711 is a 12-channel constant sink current driver. Each output channel has an independently adjustable current, and this current features 65,536 PWM grayscale (GS) levels. Additionally, each color group can be controlled by 128 constant sink current source levels with a global brightness control (BC) function. The GS control and BC can be accessed via a two-wire signal interface. The maximum current of each channel is set by a single external resistor. When the IC overheats, all constant current outputs are turned off.
Applications
- RGB LED spotlight display
Key features
- 12 constant current sink output channels
- Current capability: 60mA per channel
- Grayscale (GS) control with enhanced spectrum PWM: 16-bit (65536 steps)
- Global brightness control (BC): 7-bit (128 steps) per color group
- Supply voltage range: internal linear regulator: 4.0V to 17V; DC panel supply: 3.0V to 5.5V; LED supply: up to 17V
- Constant current accuracy: channel-to-channel = ±1% (typical), ±3% (maximum); device-to-device = ±1% (typical), ±4% (maximum)
- Data transfer rate: 10MHz (daisy-chain)
- Linear voltage regulator: 3.3V
- Auto-repeat display function
- Display timing reset function
- Internal/external selectable GS clock
- Thermal shutdown (TSD) with auto-restart
- Unlimited device cascading
- Safety timer for external clock fault
- Operating temperature range: -40°C to 85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLC59711PWP#C1554176TI · HTSSOP-20-EP | TI | HTSSOP-20-EP | 104 | ₹592.80 · 104 in stock | View |
