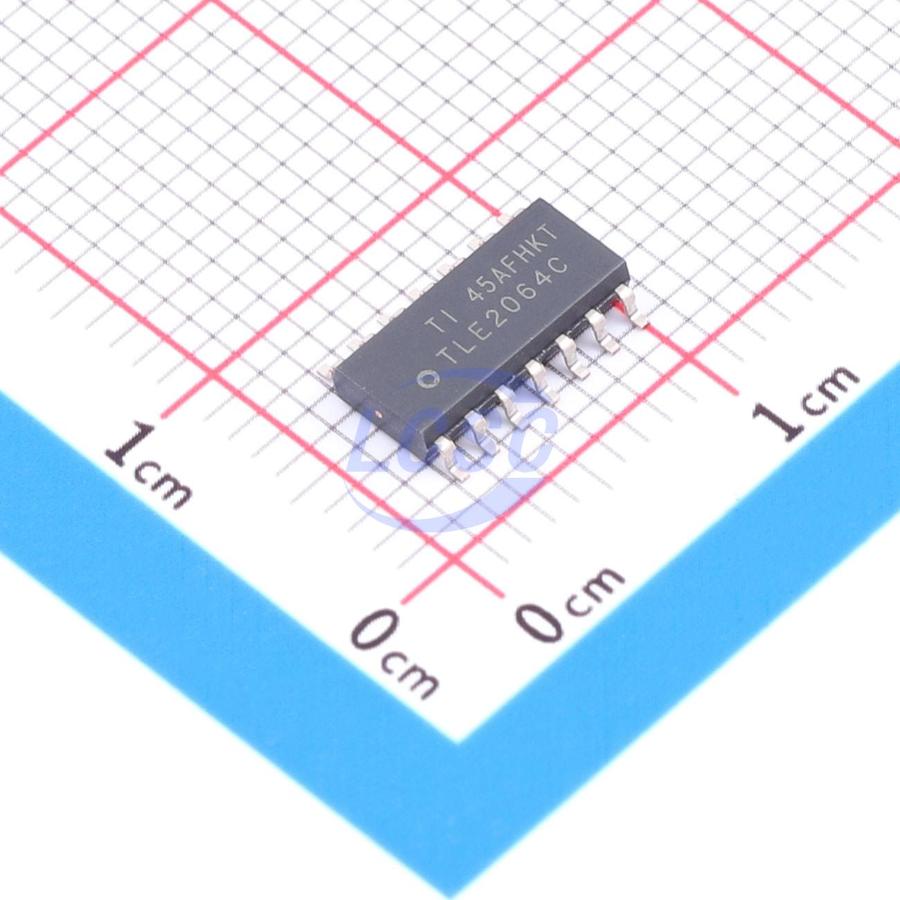

TLE2064CDR

600uA 2MHz Four channels 900uV 3.4V/us 82dB 4pA SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

EXCALIBUR JFET-INPUT HIGH-OUTPUT-DRIVE μPOWER OPERATIONAL AMPLIFIERS

Manufacturer: TI
Manufacturer part #: TLE2064CDR
Store part #: C2060749
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17 in stock

#C2060749

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹746.97	₹746.97
10+	₹729.30	₹7,293.00
30+	₹717.67	₹21,530.10
100+	₹705.83	₹70,583.00

Quantity (min 1)

1 × ₹746.97

₹746.97

excl. GST

₹881.42 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

TLE2064CDR

₹746.97 for 1 + GST

Specifications

Quiescent Current: 600uA
Gain Bandwidth Product: 2MHz
Number of Channels: Four channels
Vos - Input Offset Voltage: 900uV
Slew Rate: 3.4V/us
Input Offset Current(Ios): 1pA
Input Voltage Noise Density: 43nV/√Hz@1kHz
Operating Temperature: 0℃~+70℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 4pA
Dual Supply: -18V~-3.5V;3.5V~18V
Input Offset Voltage Drift(Vos TC): 1uV/℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.34 g
