TIDatasheet (PDF)

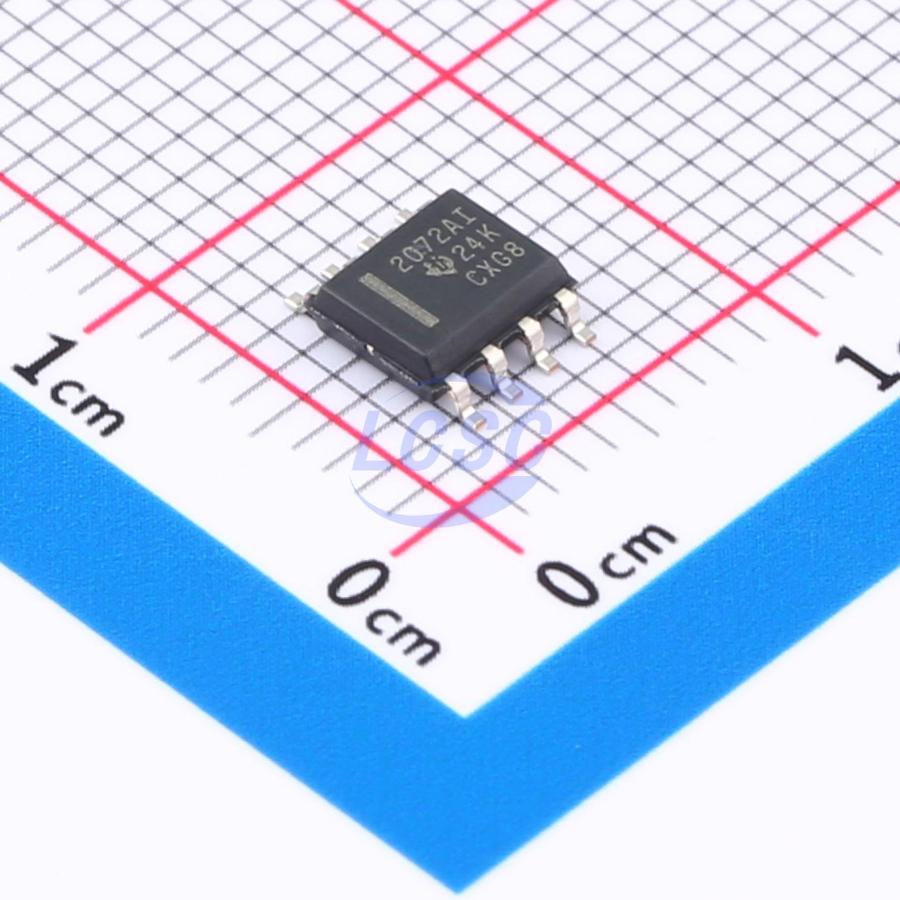

TLE2072AIDR
45mA 2 700uV 45V/us 89dB 20pA 2.9mA 10MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low-Noise High-Speed JFET-Input Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- TLE2072AIDR
- Store part #
- C2060819
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C2060819
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹532.16 | ₹532.16 |
| 10+ | ₹474.65 | ₹4,746.50 |
| 30+ | ₹437.70 | ₹13,131.00 |
| 100+ | ₹402.18 | ₹40,218.00 |
1 × ₹532.16
₹532.16
excl. GST
₹627.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLE2072AIDR
₹532.16 for 1 + GST
Specifications
- Output Current
- 45mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 700uV
- Slew Rate
- 45V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 89dB
- Ib - Input Bias Current
- 20pA
- Input Offset Voltage Drift(Vos TC)
- 2.4uV/℃
- Quiescent Current
- 2.9mA
- Gain Bandwidth Product
- 10MHz
- Features
- Short-Circuit Protection
- Input Voltage Noise Density
- 17nV/√Hz@10kHz
- Dual Supply
- -19V~19V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
